Front Door
WARNING: This page is about a different car, the 2023 Porsche Panamera and 2022 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
| Location |
Description |
Type |
Basic value |
Tolerance |

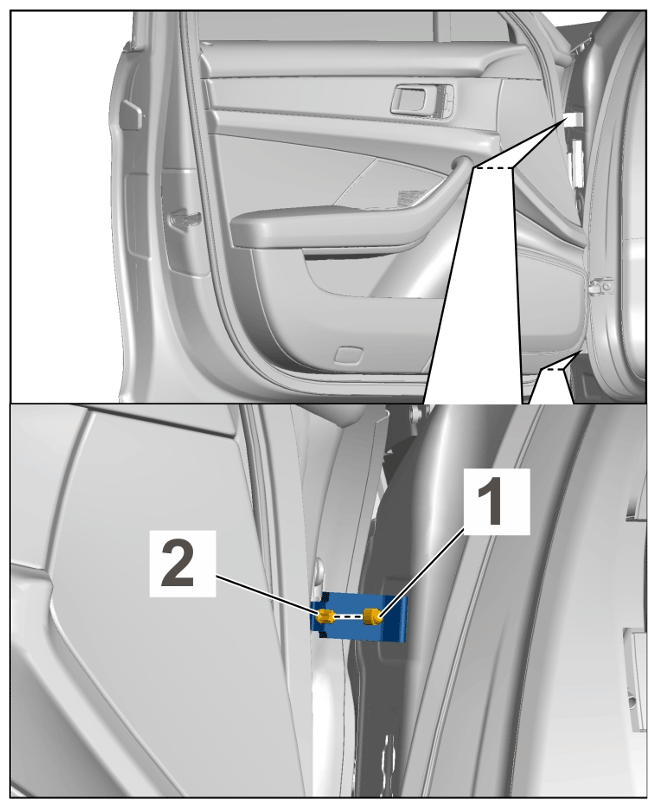

| Fastening screws for door hinge |
Item 2 |
Tightening torque |
27 Nm (20 ftlb.) |
+/- 3.5 Nm (2.5 ftlb.) |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.

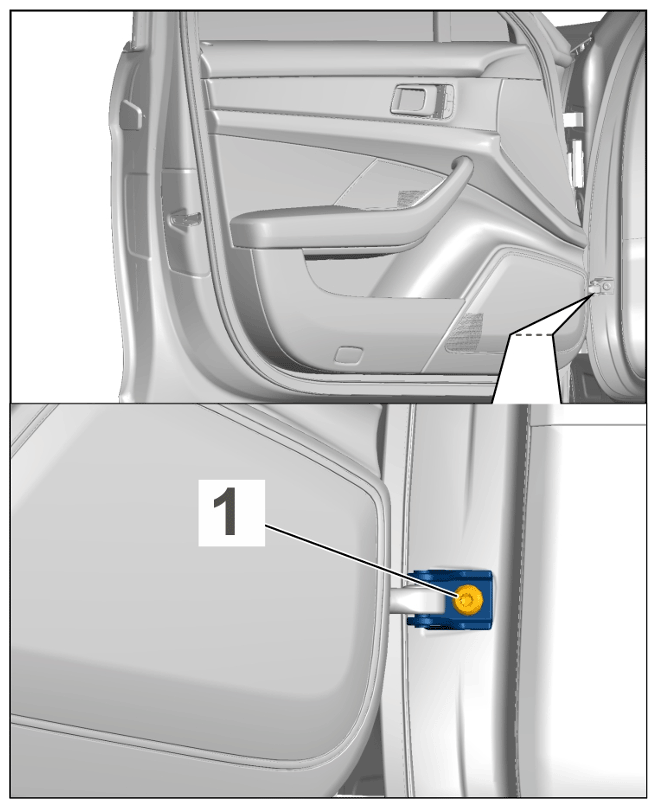

Fastening screw for door hinge |
| Fastening screw for door arrester |
Item 1 |
Tightening torque |
33 Nm (24 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fastening screw for door arrester |
