Door Handle

WARNING: This page is about a different car, the 2023 Porsche Panamera and 2022 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value

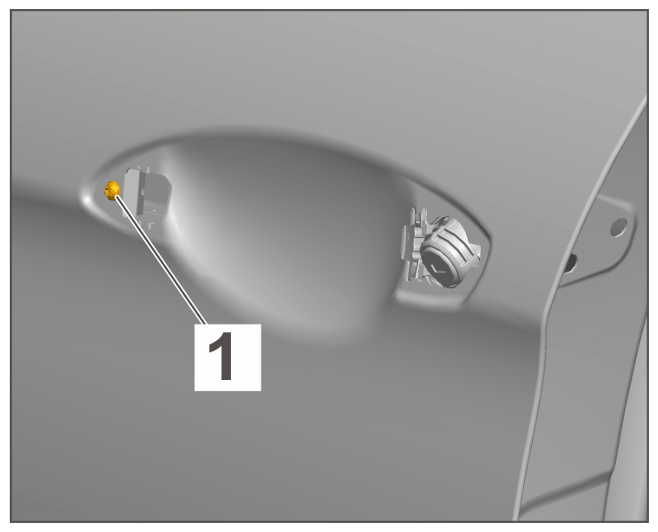

Fastening screw door handle	Pos. 1	Tightening torque	1.5 Nm (1.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screw

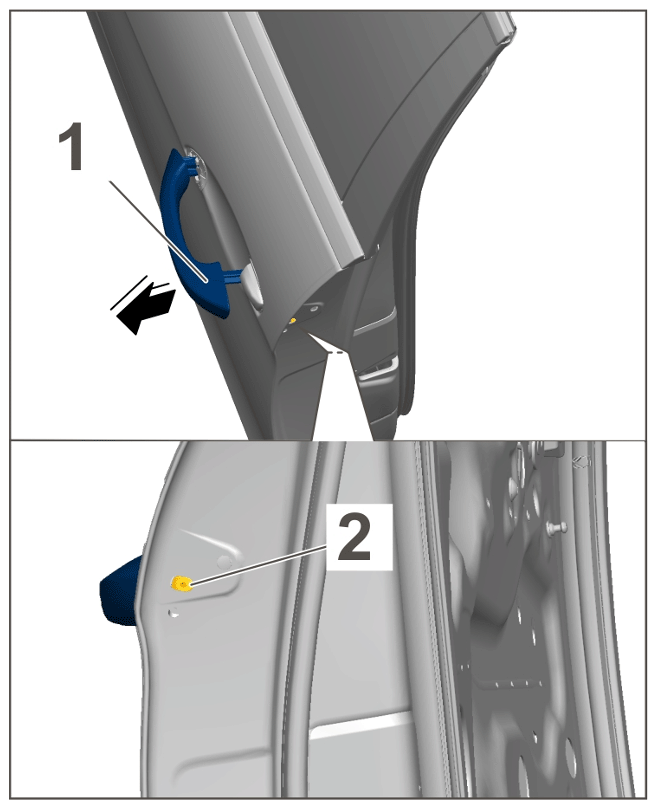

Adjusting bolt for door handle in service position	Pos. 1	Tightening torque	5 Nm (3.7 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Door handle in service position

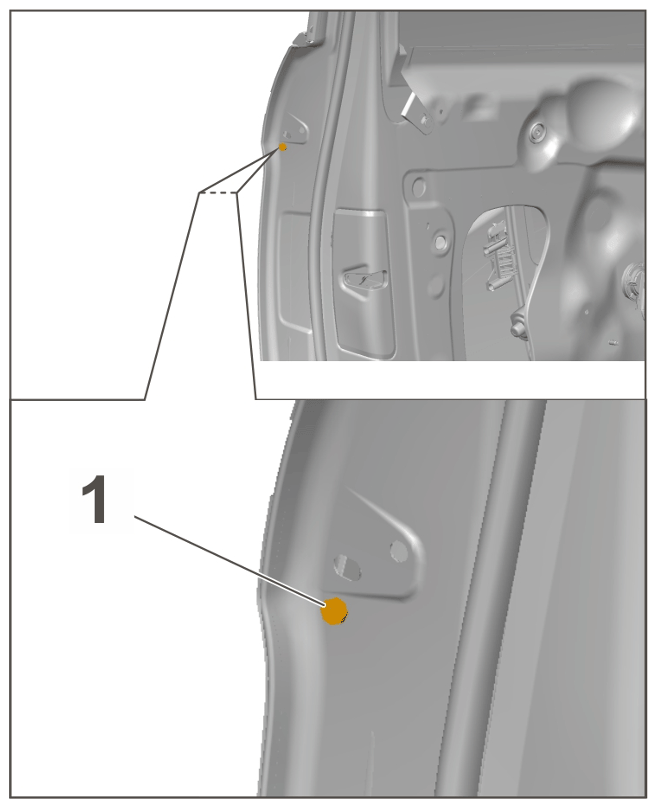

Tighten fastening screw for door handle in service position	Pos. 1	Tightening torque	2.5 Nm (1.8 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screw

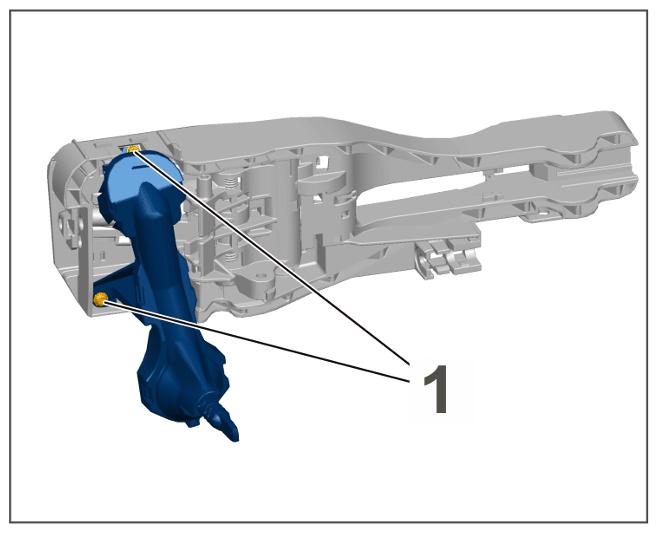

Deflection unit on door handle	Pos. 1	Tightening torque	1.3 Nm (1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws

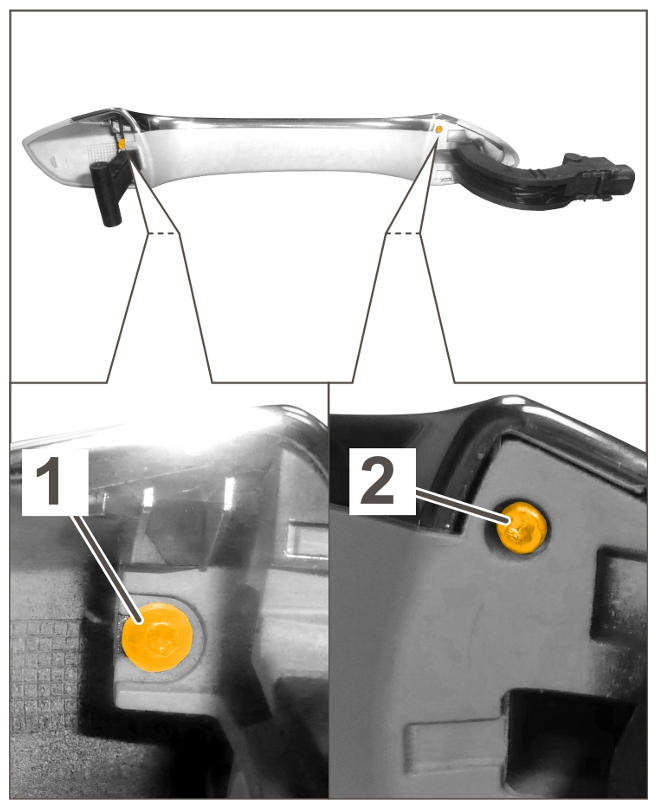

Screw trim panel	Pos. 1	Tightening torque	0.7 Nm (0.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
Screw trim panel	Pos. 2	Tightening torque	0.22 Nm (0.2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

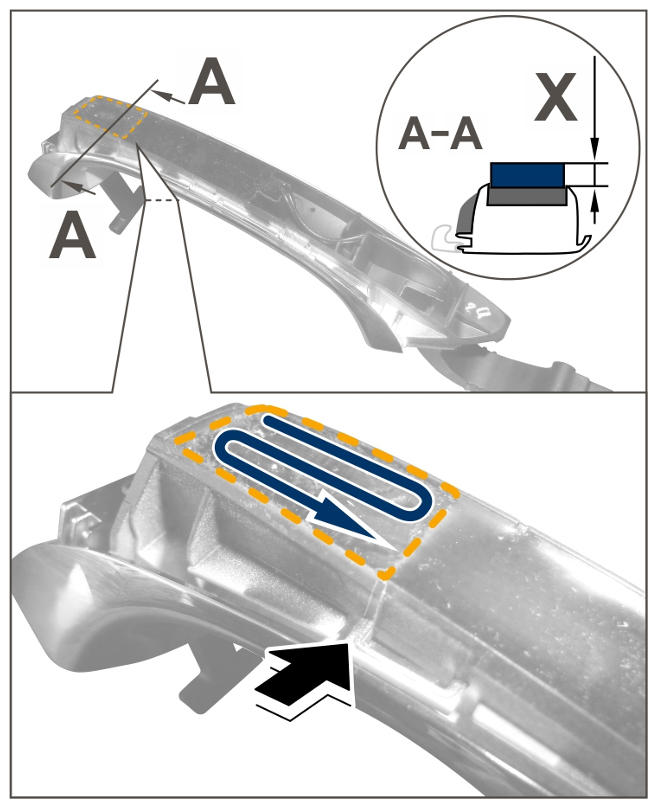

Door handle seal Kessy	Pos. X	Application depth	7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Door handle adhesive
