Closing Aid Motor

WARNING: This page is about a different car, the 2023 Porsche Panamera and 2022 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
Location Description Type Basic value Tolerance
Closing aid to basic door frame Item 1 Tightening torque 3.5 Nm (2.5 ftlb.)

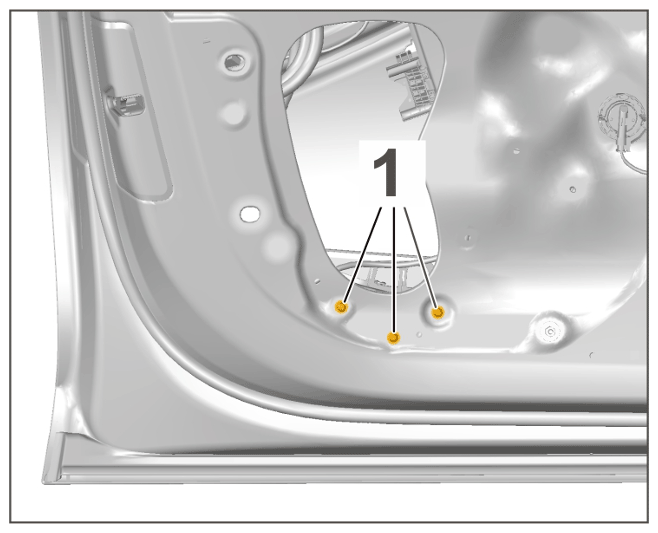

G15863631Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws for closing aid
