Technical Values: Overview

WARNING: This page is about a different car, the 2023 Porsche Panamera and 2022 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Location	Des...	Type	Basic val...	Toleranc...	Toleranc...

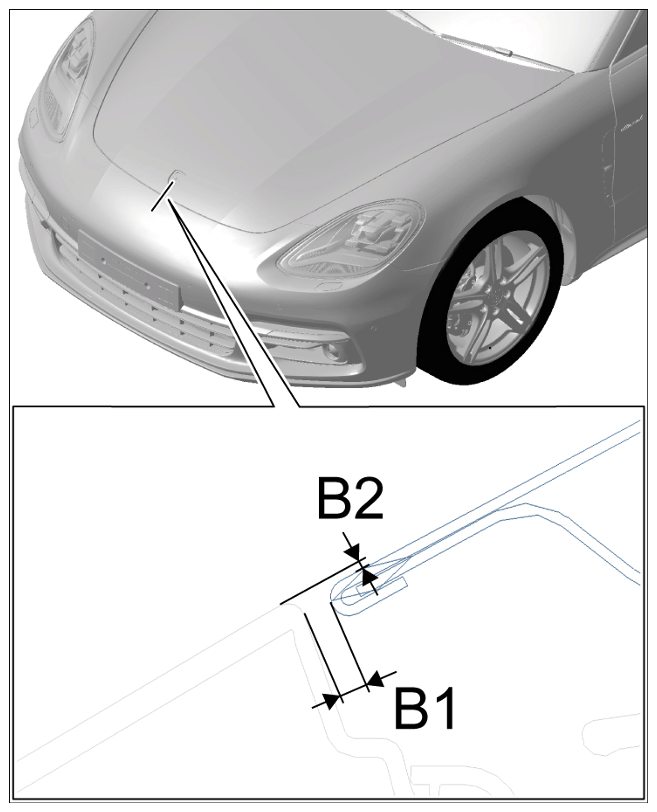

Front lid to front apron (B1)		Gap dimension	3.2 mm	+ 0.8 mm	- 0.6 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Front lid to front apron (B2)	Offset	Gap dimension	- 1 mm - 0.3 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

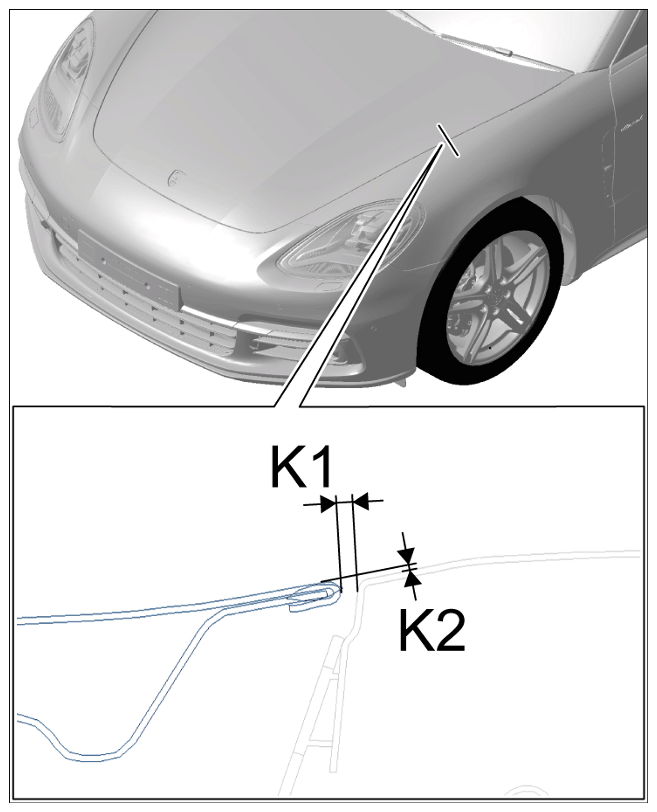

Front lid to wing (K1)		Gap dimension	3 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Front lid to wing (K2)	Offset	Gap dimension	0 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

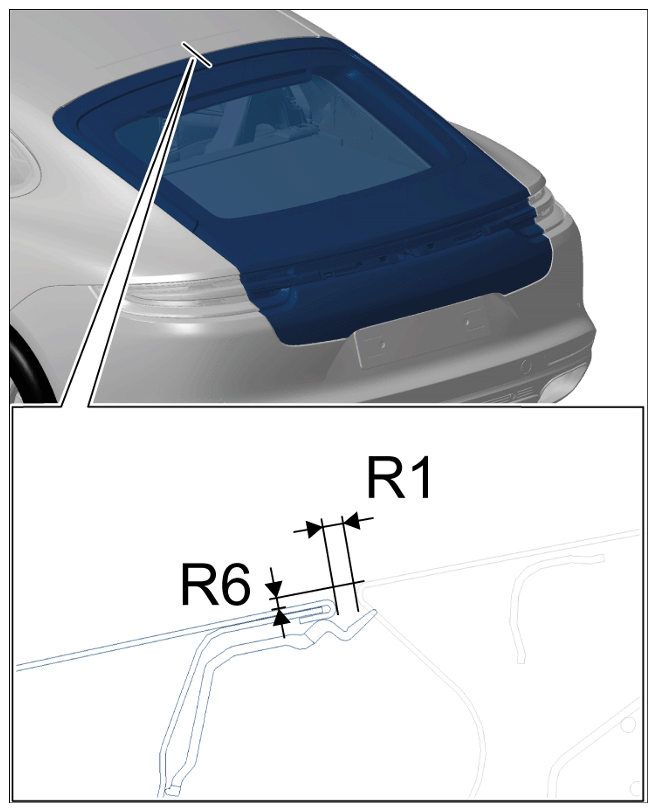

Rear lid to roof/P-roof (R1)		Gap dimension	4.5 mm	+ 1 mm	- 0.2 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

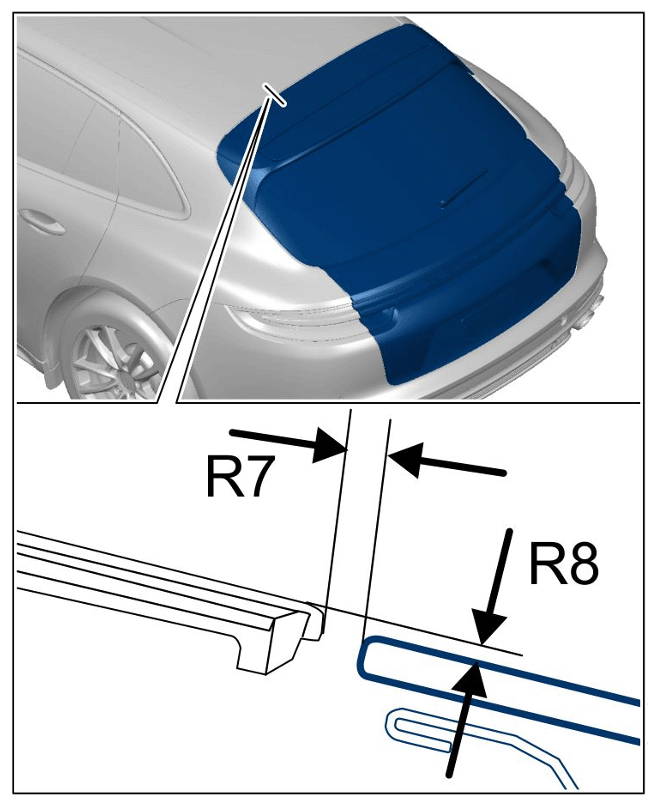

Rear lid to roof/P-roof (R7)		Gap dimension	4.8 mm	+ 1 mm	- 0.2 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Rear lid to roof/P-roof (R6)		Gap dimension	- 0.2 mm	+ 0.8 mm	- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Rear lid to roof/P-roof (R8)		Gap dimension	- 2 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

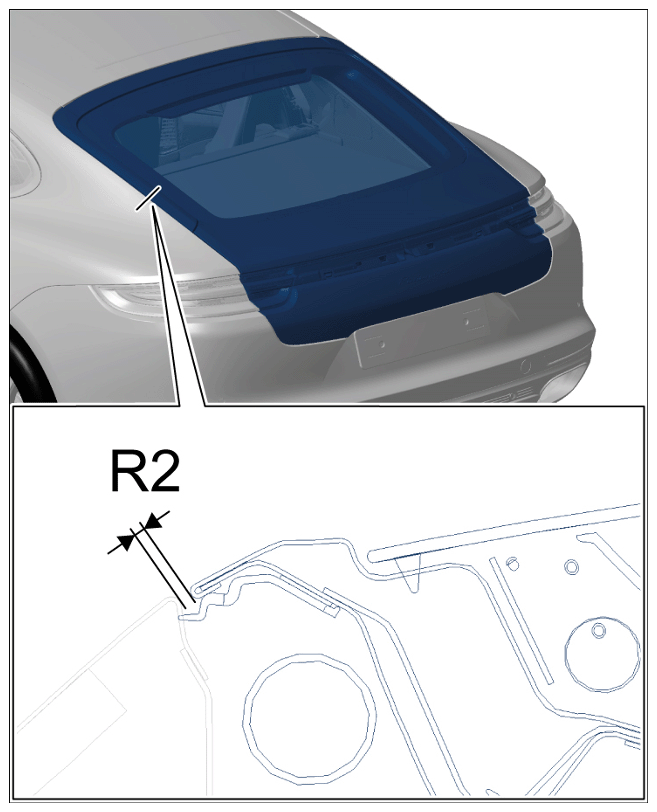

Rear lid to side panel (R2)		Gap dimension	3.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

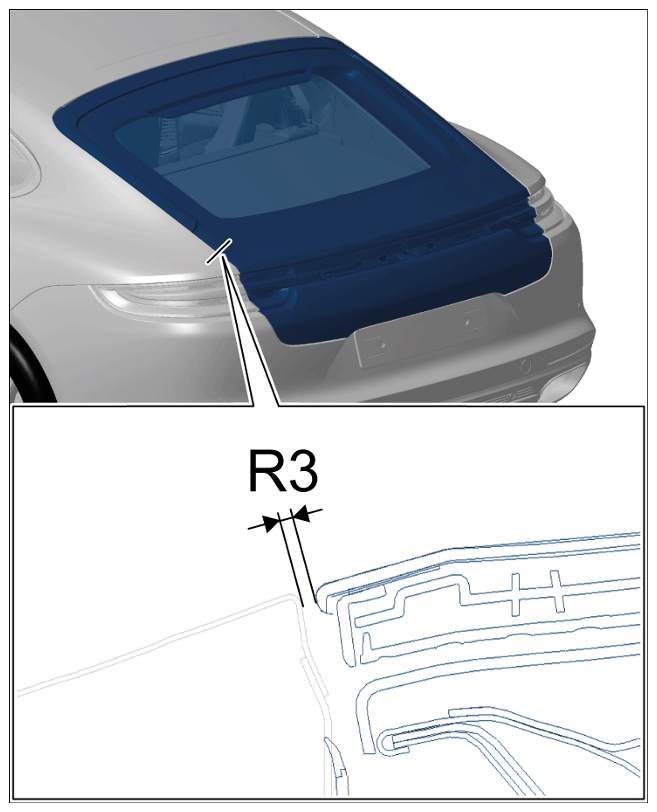

Spoiler to side panel (R3)		Gap dimension	3.5 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

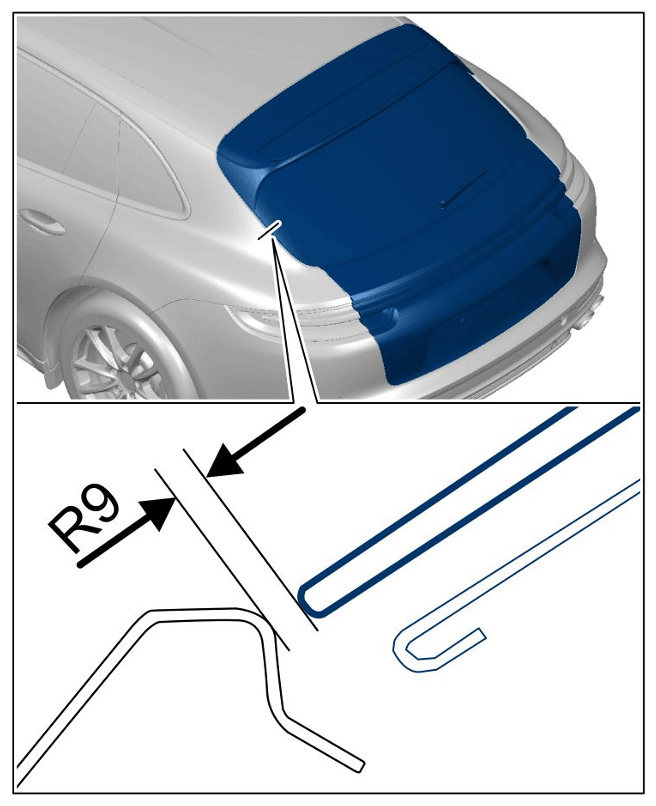

Rear lid to side panel (R9)		Gap dimension	4 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

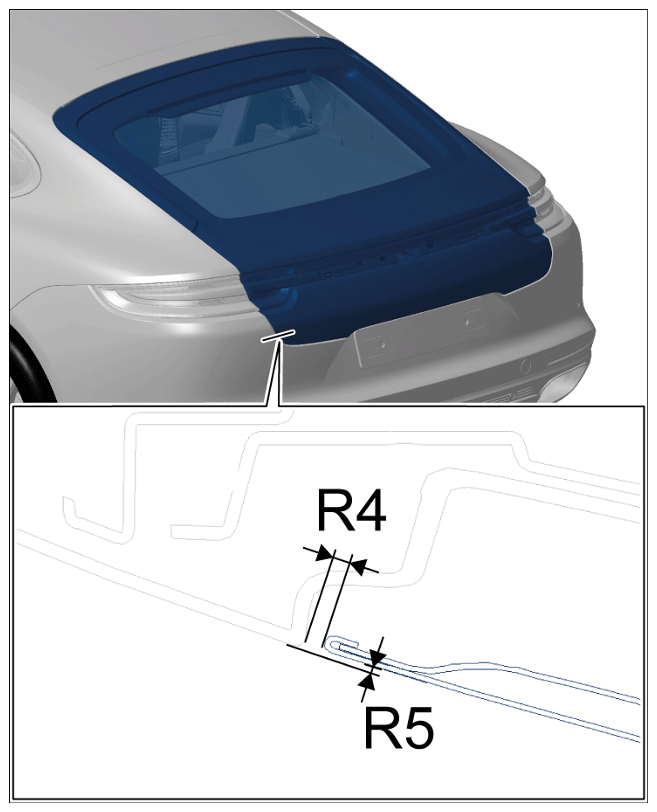

Rear lid to rear apron (R4)		Gap dimension	3.7 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Rear lid to rear apron (R5)		Gap dimension	- 1 mm	+/- 0.9 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Front lid to wing (K1)		Gap dimension	3 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Front lid to wing (K2)	Offset	Gap dimension	0 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

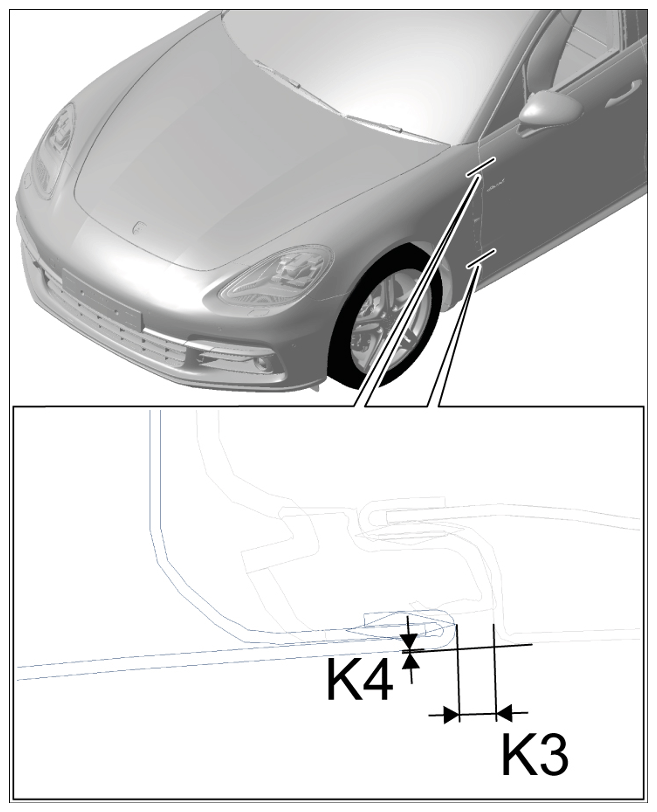

Front wing to door (K3)		Gap dimension	3.0 on 3.5 mm	+ 0.7 mm	- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Front wing to door (K4)	Offset	Gap dimension	- 0.5 mm	+ 0.3 mm	- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

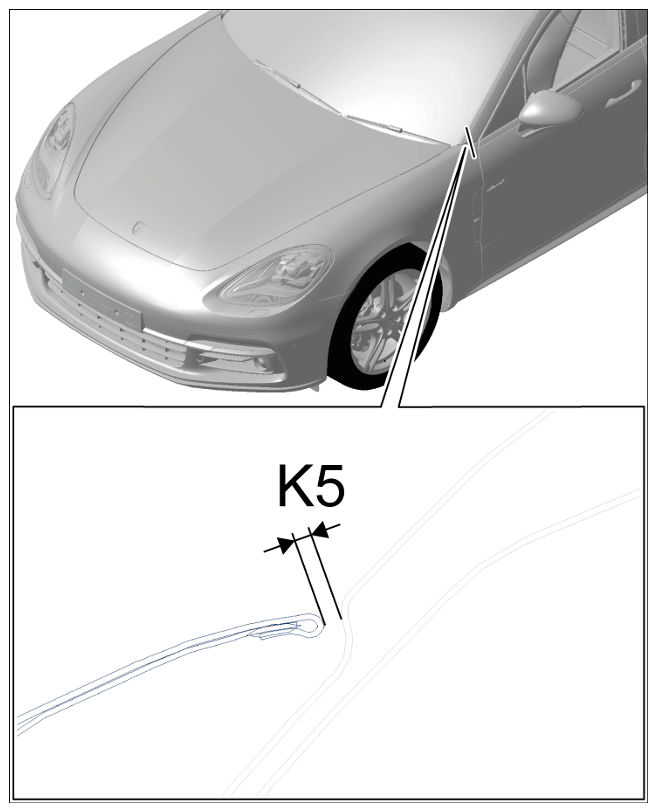

Front wing to A-pillar (K5)	Contour	Gap dimension	3.5 on >4.5 mm	+/- 0.9 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

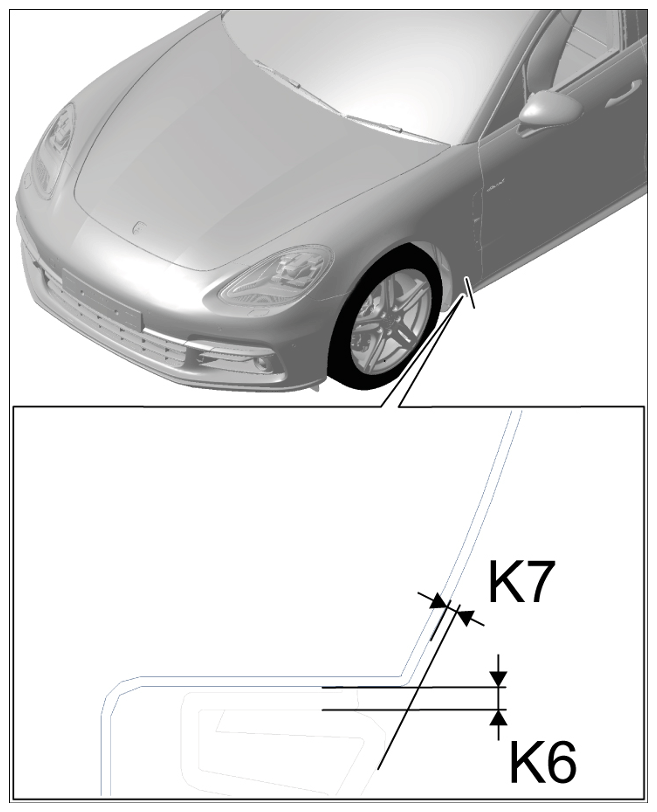

Front wing to door entry guard (K6)		Gap dimension	3 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Front wing to door entry guard (K7)	Offset	Gap dimension	0 mm	+/- 1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

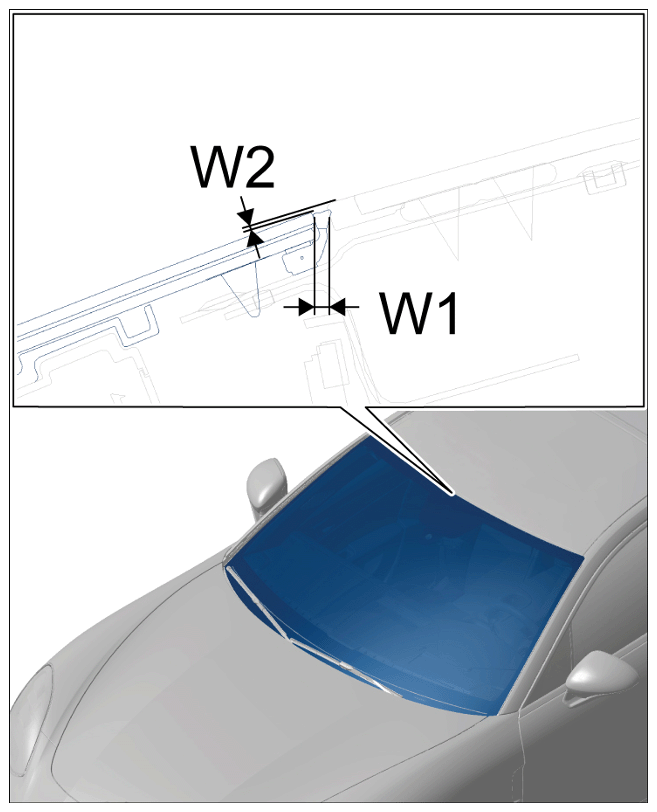

Windscreen to roof (W1)		Gap dimension	2.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions from windscreen to roof
Windscreen to roof (W2)		Offset	-0.6 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions from windscreen to roof
Windscreen to panoramic roof (W2)		Offset	-0.6 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions from windscreen to roof

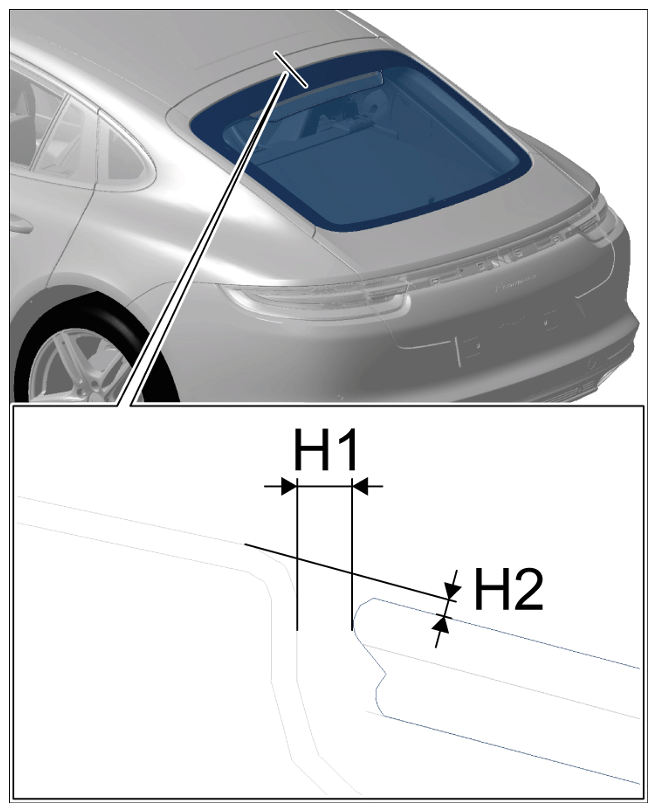

Rear window to rear lid (H1)		Gap dimension	2.5 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension from rear window to rear lid
Rear window to rear lid (H2)	Offset	Gap dimension	- 1 mm	+ 0.8 mm	- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension from rear window to rear lid

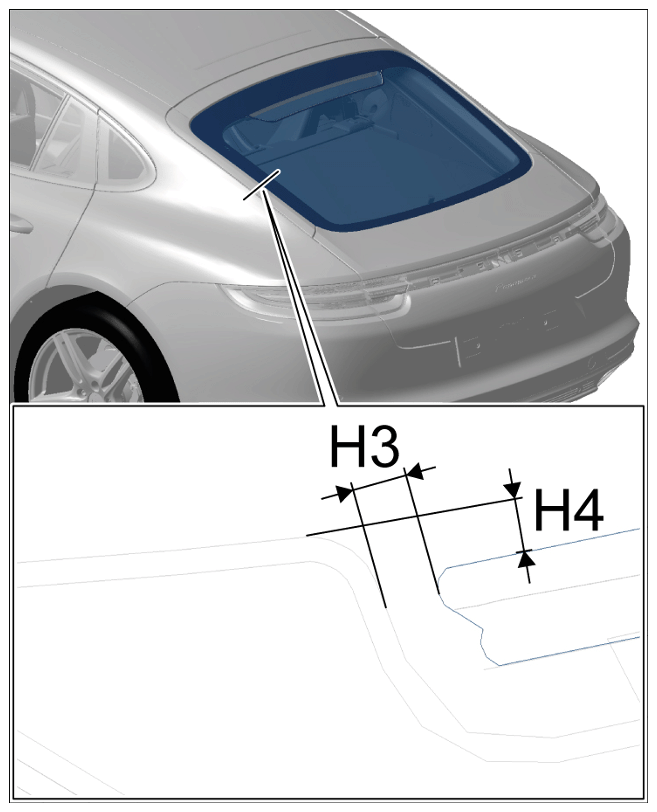

Rear window to rear lid (H3)		Gap dimension	2.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension from rear window to rear lid
Rear window to rear lid (H4)	Offset	Gap dimension	- 2.1 mm	+ 0.8 mm	- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension from rear window to rear lid

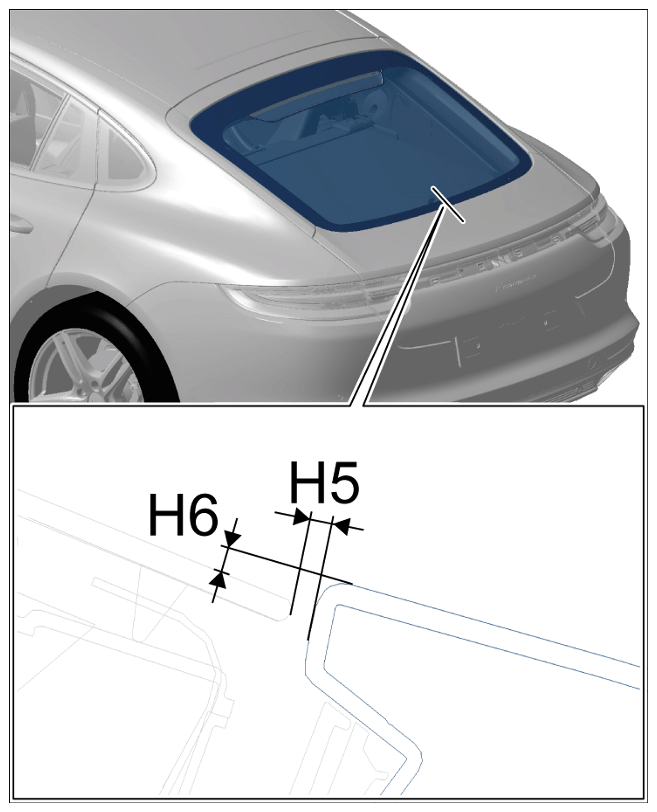

Rear window to rear spoiler (H5)		Gap dimension	3.5 mm	+ 1.5 mm	- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension from rear window to rear spoiler
Rear spoiler to rear window (H6)		Offset	Gap dimension	- 2.5 mm	+/- 1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension from rear window to rear spoiler

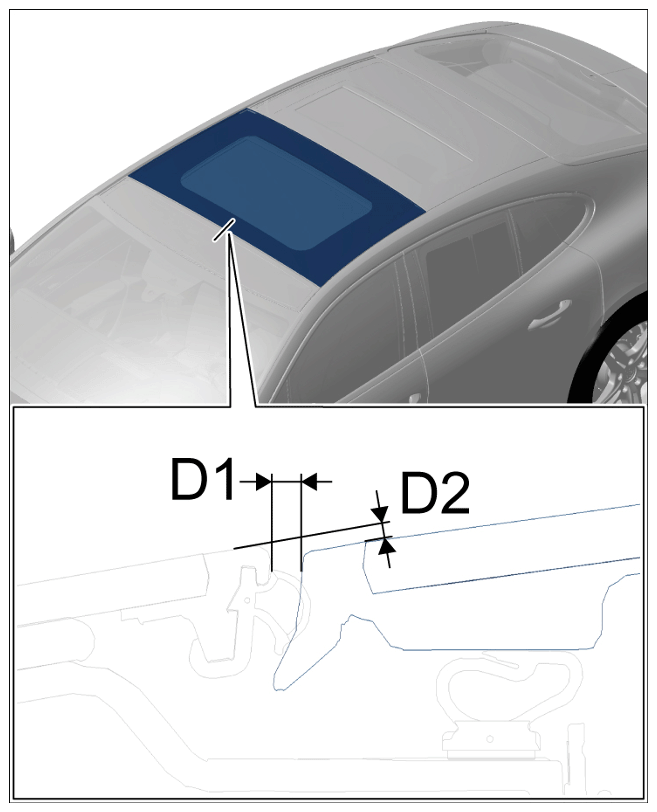

Front roof to sliding-roof panel (D1)		Gap dimension	3 mm	+/- 0.9 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Front roof to sliding-roof panel (D2)	Offset	Gap dimension	1.2 mm	+/- 0.9 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

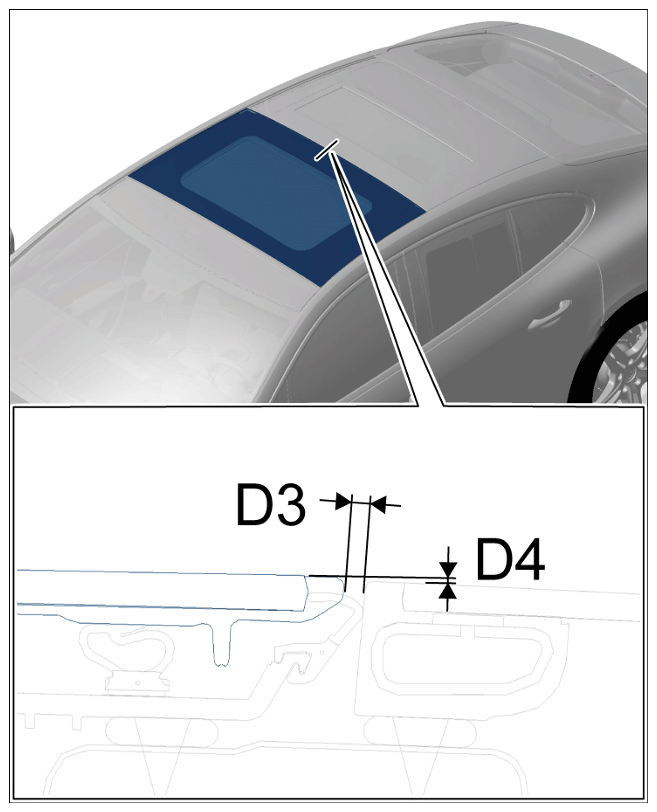

Sliding-roof panel to rear lid (D3)		Gap dimension	3 mm	+/- 0.9 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Sliding-roof panel to rear lid (D4)	Offset	Gap dimension	0.5 mm	+/- 0.9 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

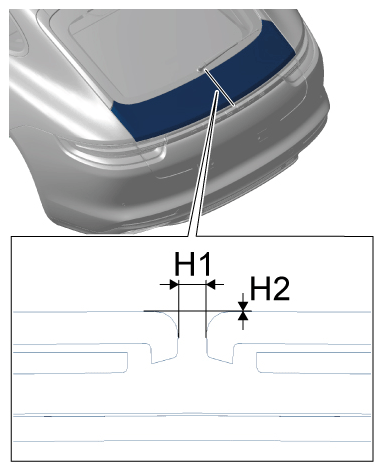

Rear spoiler to rear spoiler (H1)	Only for rear spoiler (wing)	Gap dimension	3 mm	+ 1.4 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension from rear spoiler to rear spoiler
Rear spoiler to rear spoiler (H2)	Offset, only for rear spoiler (wing)	Gap dimension	0 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension from rear spoiler to rear spoiler

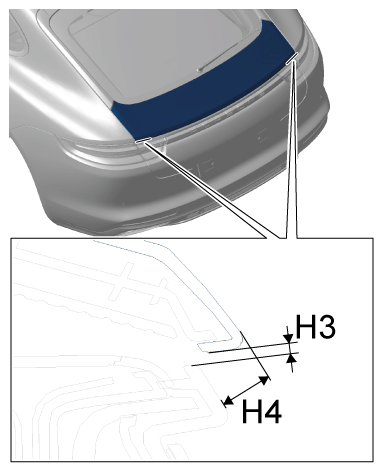

Tail light to rear spoiler (H3)		Gap dimension	1 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension from tail light to rear spoiler
Tail light to rear spoiler (H4)	Offset	Gap dimension	> -10 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension from tail light to rear spoiler

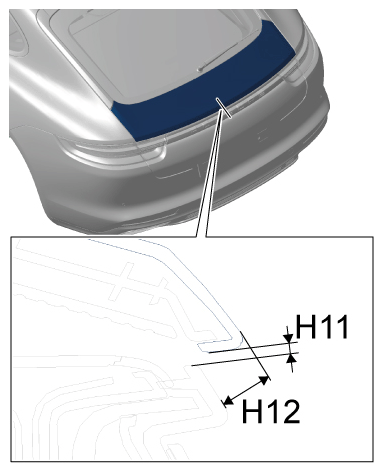

Rear spoiler to logo trim (H11)		Gap dimension	1 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear spoiler to logo trim
Rear spoiler to logo trim (H12)	Offset	Gap dimension	> -10 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear spoiler to logo trim

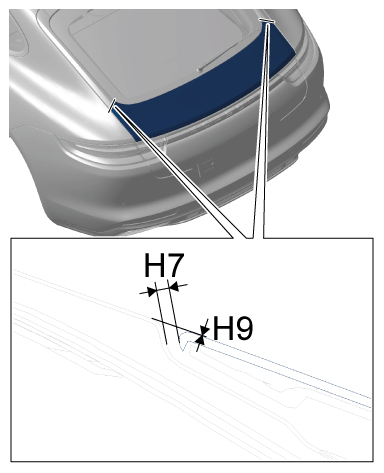

Rear spoiler to rear lid (H7)		Gap dimension	3 mm	+ 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear spoiler to rear lid

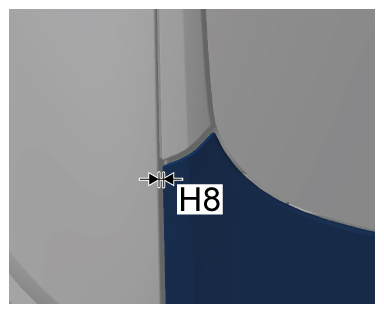

Rear spoiler to rear lid (H8)	Y offset	Gap dimension	0 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear spoiler to rear lid
Rear spoiler to rear lid (H9)	Z offset	Gap dimension	0 mm	+ 0.5 mm	- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear spoiler to rear lid

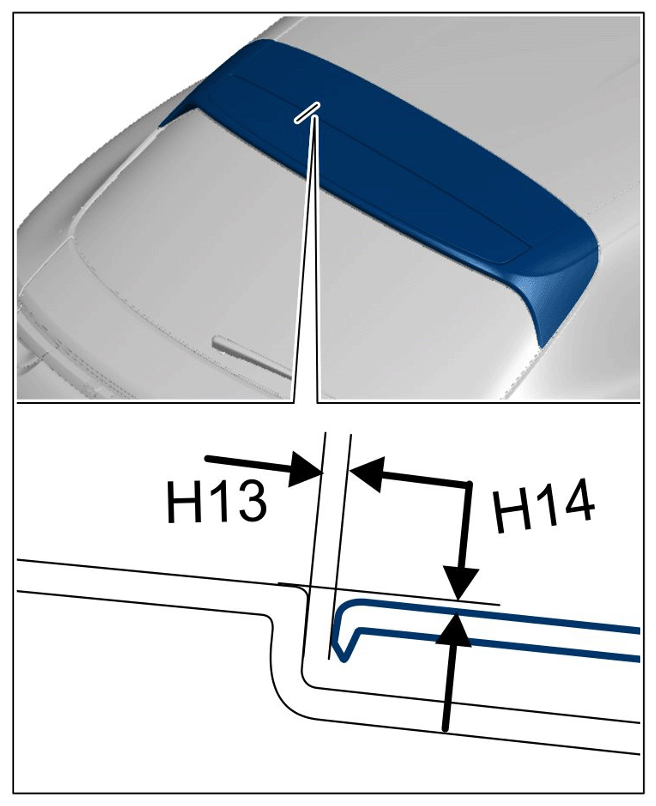

Rear spoiler (wing) to rear spoiler (H13)		Gap dimension	3.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Rear spoiler (wing) to rear spoiler (H14)		Gap dimension	0.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

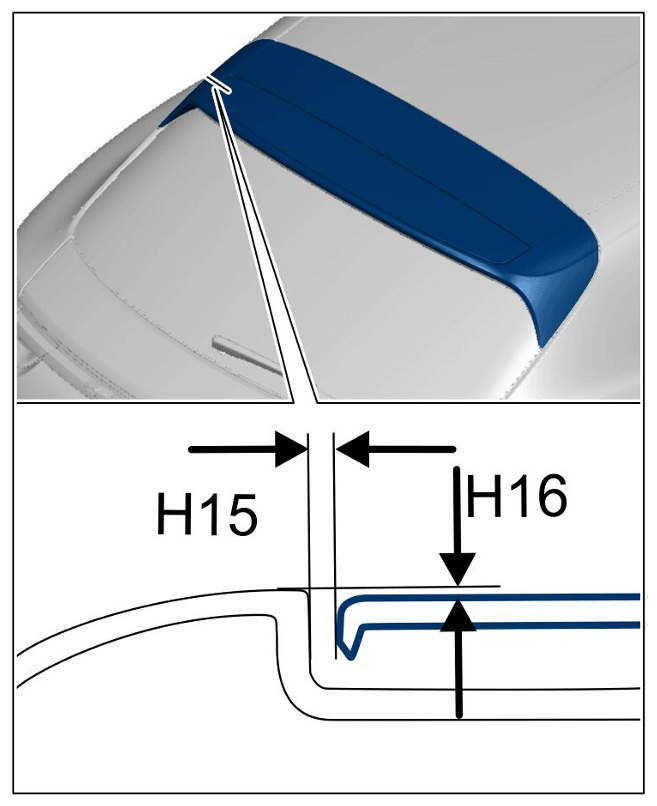

Rear spoiler (wing) to rear spoiler (H15)		Gap dimension	3.5 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Rear spoiler (wing) to rear spoiler (H16)		Gap dimension	0.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

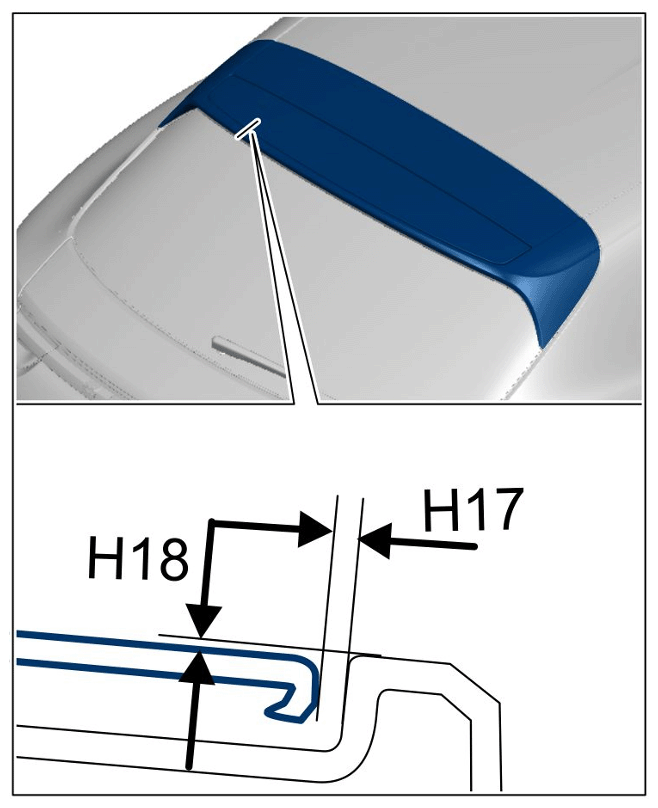

Rear spoiler (wing) to rear spoiler (H17)		Gap dimension	3.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Rear spoiler (wing) to rear spoiler (H18)	Running gap dimension	Gap dimension	0.5 mm - 0.3 mm	+/- 0.4 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
