Gap Dimensions Of Front Wing

WARNING: This page is about a different car, the 2023 Porsche Panamera and 2022 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value	Tolerance

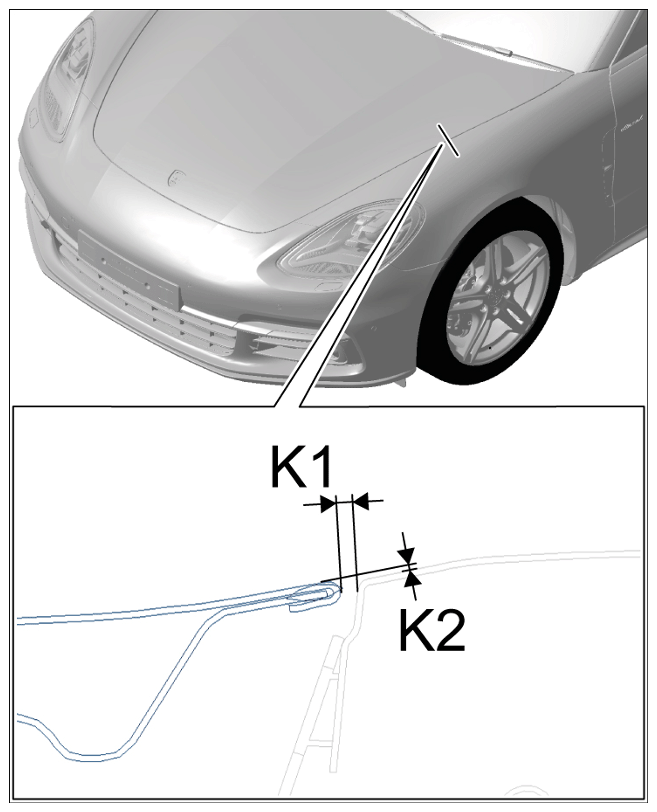

Front lid to wing (K1)		Gap dimension	3 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Front lid to wing (K2)	Offset	Gap dimension	0 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

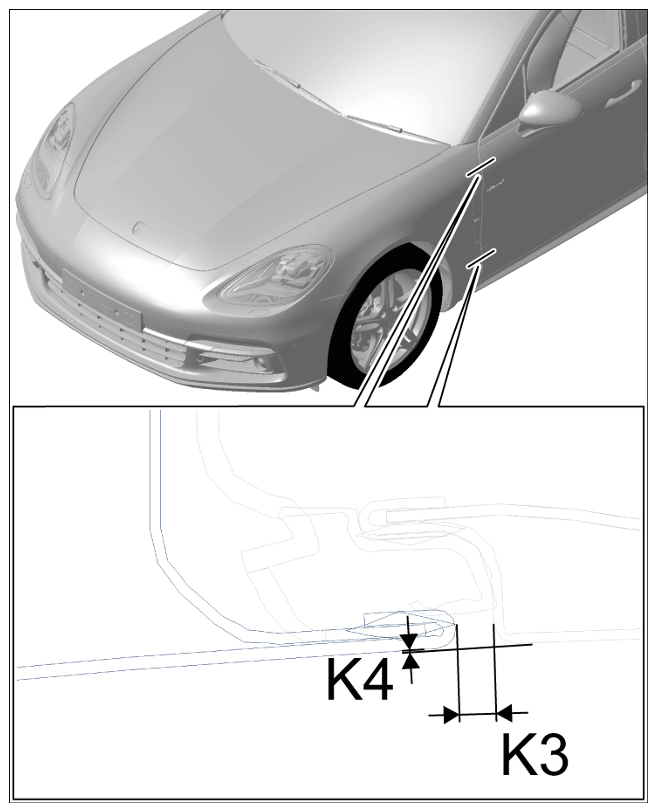

Front wing to door (K3)		Gap dimension	3.0 on 3.5 mm	+ 0.7 mm - 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Front wing to door (K4)	Offset	Gap dimension	- 0.5 mm	+ 0.3 mm - 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

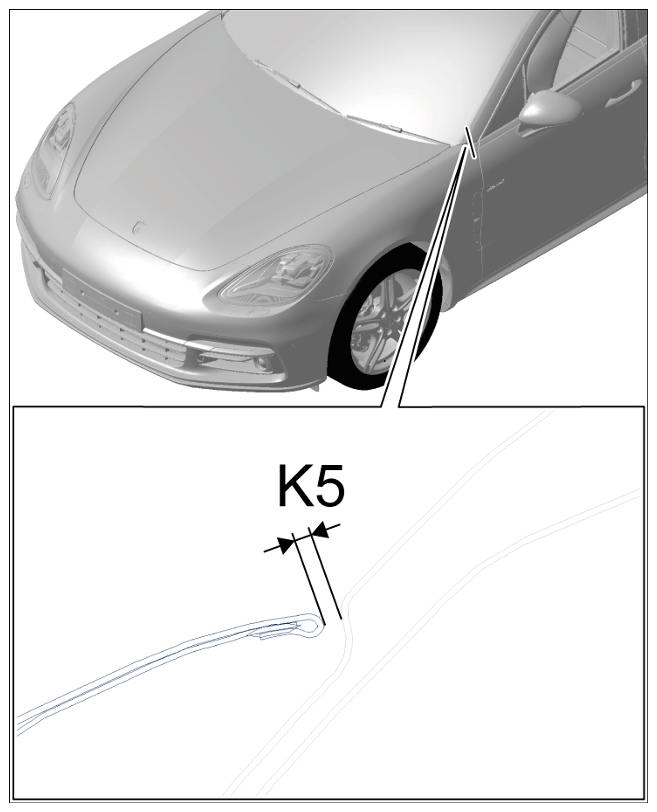

Front wing to A-pillar (K5)	Contour	Gap dimension	3.5 on >4.5 mm	+/- 0.9 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

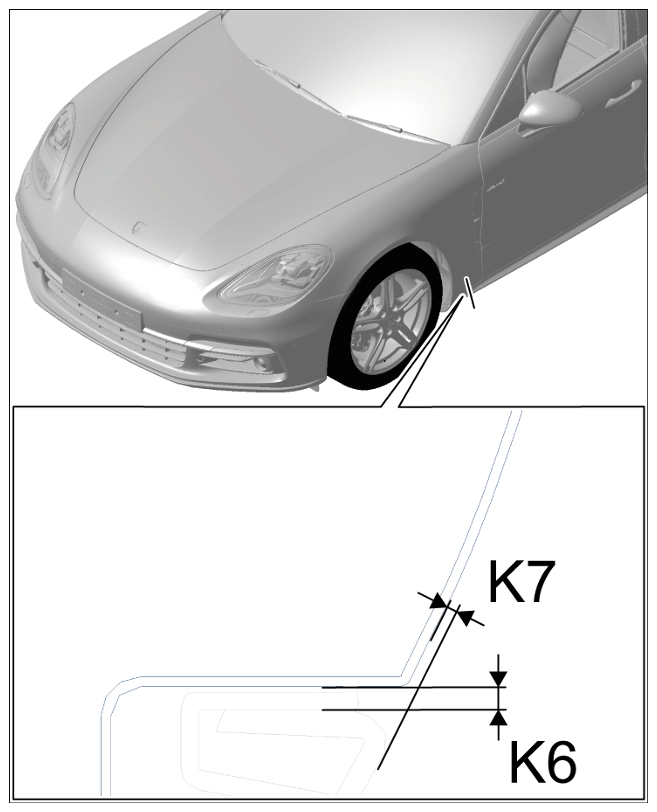

Front wing to door entry guard (K6)		Gap dimension	3 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Front wing to door entry guard (K7)	Offset	Gap dimension	0 mm	+/- 1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
