Subsequent Work (V6 Monoturbo)
WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
- Fit pressure hose -1-
on throttle valve.
- 1.1 Push pressure hose -1-
onto the throttle valve and tighten screw-type clamp -2-
to > Tightening torque 5.5 Nm (4 ftlb.) +/- 0.5 Nm (0.4 ftlb.)
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

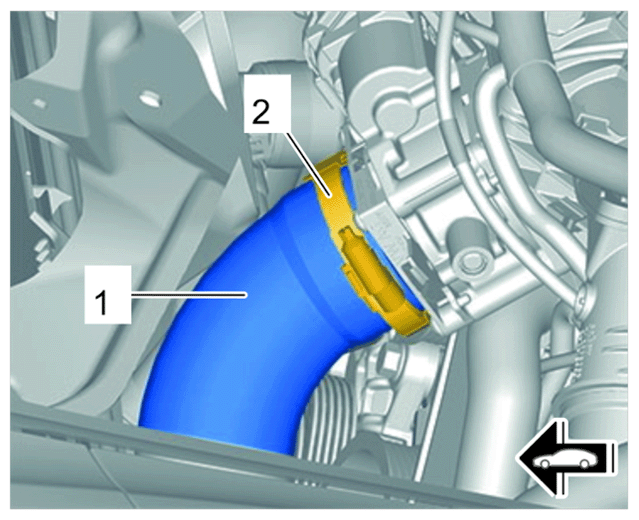

Pressure hose on throttle valve
- Install drive belt for generator.
> WM, 137819 REMOVING AND INSTALLING DRIVE BELT (V6)
- Check engine-oil level.
> CHECKING ENGINE-OIL LEVEL
