Removing Strut (Dome Strut)

WARNING: This page is about a different car, the 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

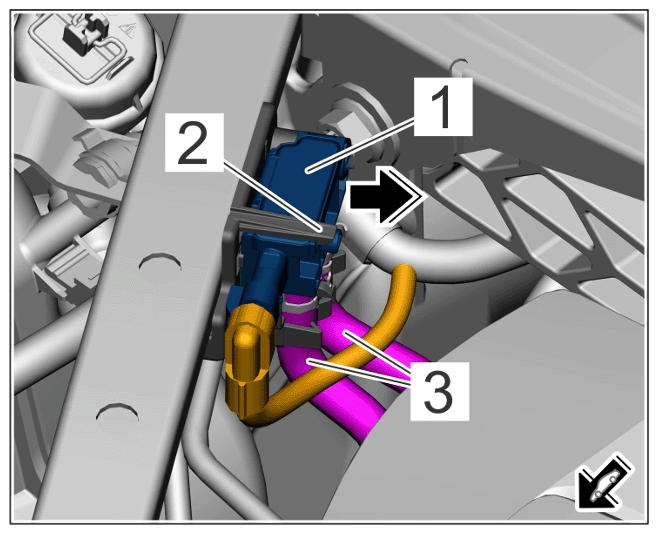

Unclip sensor -1- and hoses -3- from holder -2-Arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sensor on side strut

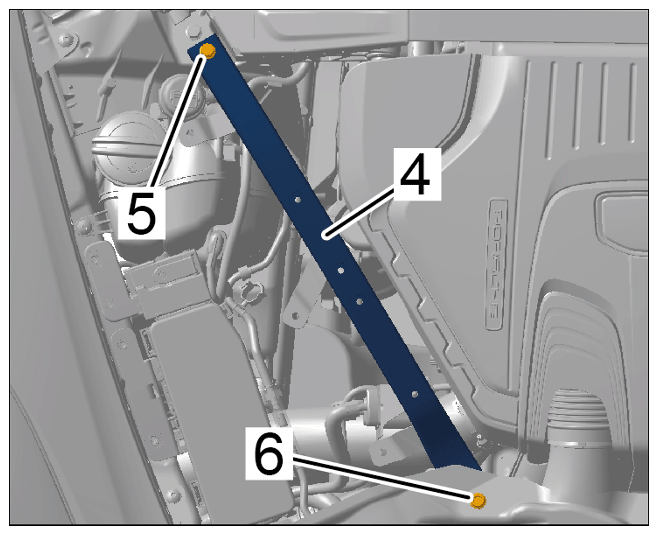

Loosen side struts -4- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for side strut
1. 2.1 Unscrew screws -5 and 6- . Replace screws -5- .
2. 2.2 Lay the struts -4- to the side so that the bolts of the strut are accessible.

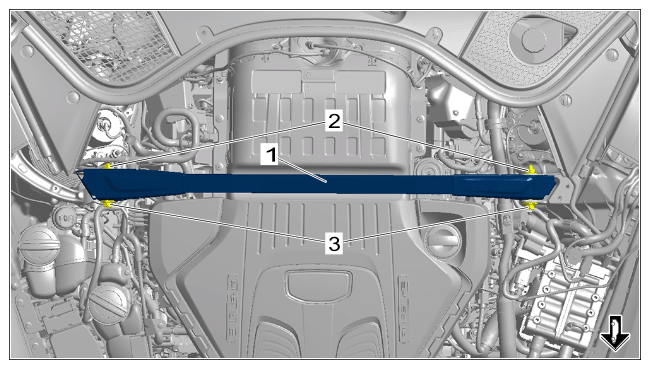

Removing strut (dome strut) -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Strut (dome strut)

3.1 Unscrew nut -2- and counter at screw -3- at the same time.
3.2 Remove screws -3- , replace nut and screw.
3.3 Remove strut (dome strut) -1- by pulling it upwards.
