Installing Strut (Dome Strut)

WARNING: This page is about a different car, the 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

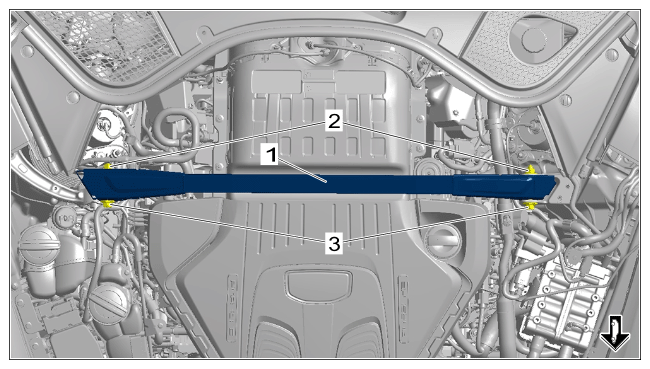

Install strut (dome strut) -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Strut (dome strut)
1. 1.1 Position strut (dome strut) -1- .
2. 1.2 Insert new screws -3- .
3. 1.3 Fit and tighten new nuts -2- holding them against the screws -3- .
  > Initial tightening 50 Nm (37 ftlb.)

  > Final tightening + 90°

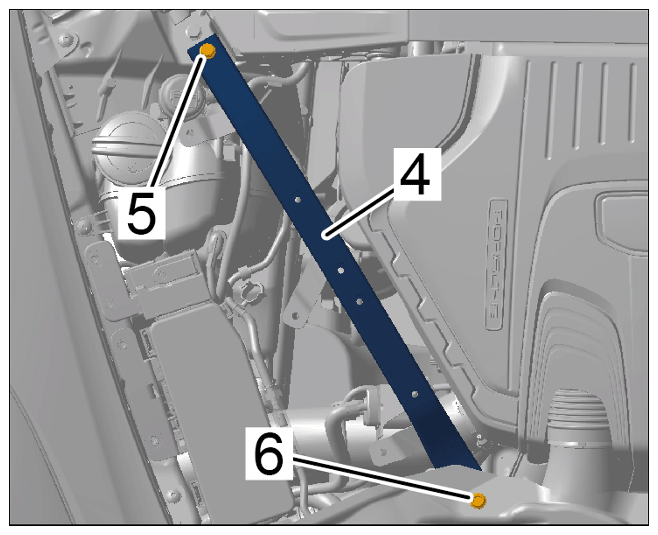

Install side struts -4- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for side strut
1. 2.1 Tighten new screws -5- > Initial tightening 20 Nm (15 ftlb.) > Final tightening + 90°
2. 2.2 Tighten -6- screws > Tightening torque 20 Nm (15 ftlb.)

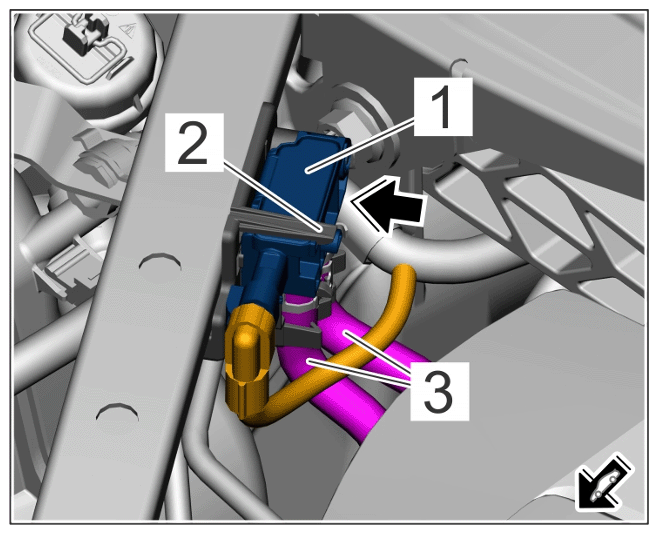

Clip in -1- sensor -3- and hoses -2- to holder -Arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sensor on side strut
