Technical Values

WARNING: This page is about a different car, the 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value	Tolerance 1
A-strut to cowl panel	Hexagon-head bolt, M10	Tightening torque	40 Nm (30 ftlb.)
A-strut to cross panel	Internal hexagon roundhead bolt, M6 x 16	Tightening torque	8 Nm (6 ftlb.)
A-strut to body	Hexagon-head bolt, M8 x 1.25 x 35/always replace bolts following removal	Initial tightening	20 Nm (15 ftlb.)
A-strut to body	Hexagon-head bolt, M8 x 1.25 x 35/always replace bolts following removal	Final tightening	90°
Spring strut to body	Item 4: Hexagon nut, M10/always replace nuts following removal!	Initial tightening	40 Nm (30 ftlb.)

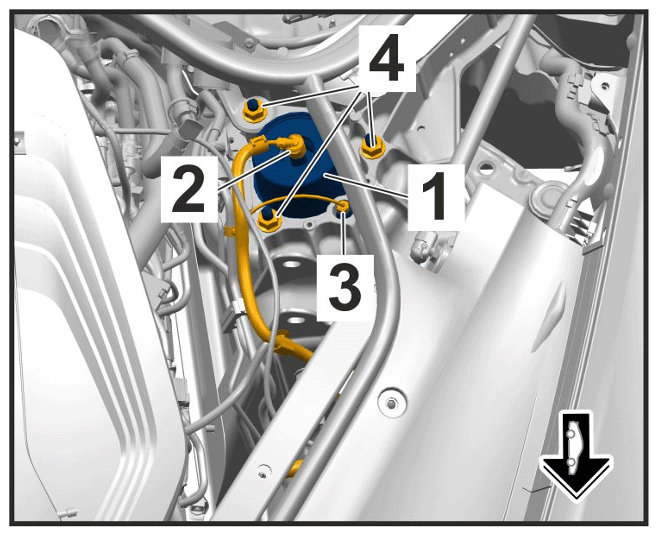

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for air-spring strut, top
Spring strut to body	Item 4: Hexagon nut, M10/always replace nuts following removal!	Final tightening	+ 45°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for air-spring strut, top
Screw securing upper part of plenum panel at the centre to A-strut	Item 1	Tightening torque	8 Nm (6 ftlb.)	+/- 15 %

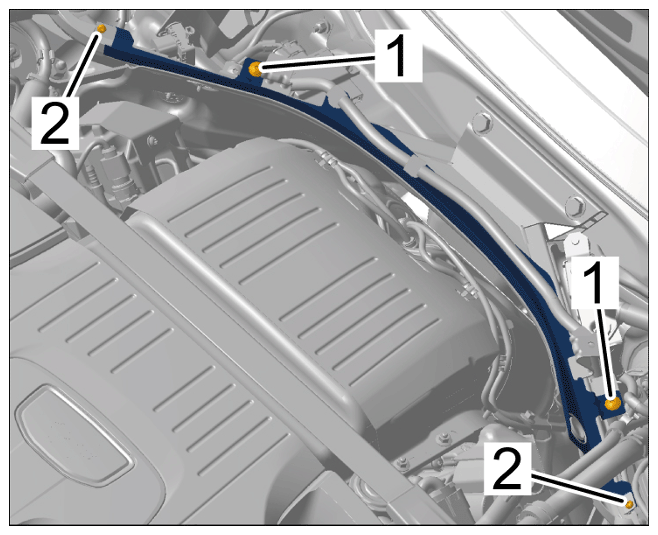

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for A-strut
Screw securing upper part of plenum panel at the side to centre plenum panel	Item 2	Tightening torque	4 Nm (3 ftlb.)	+/- 15 %
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for A-strut
Screw securing upper part of plenum panel at the side to spring strut mount	Item 7	Tightening torque	8 Nm (6 ftlb.)	+/- 15 %

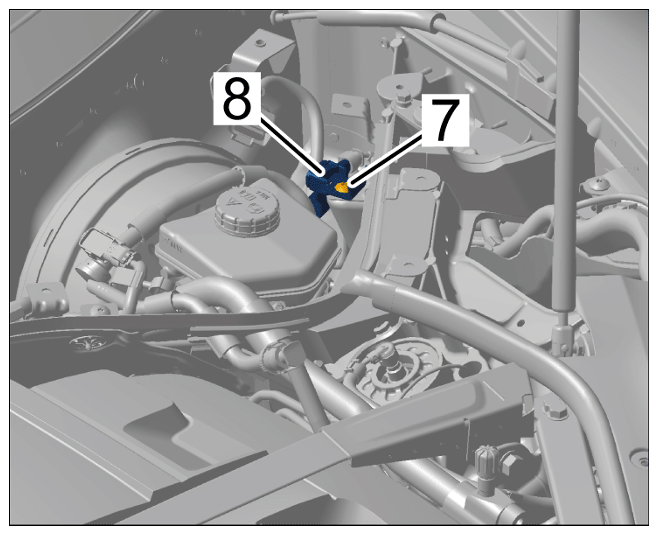

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing side plenum panel to spring strut mount
