Removing Strut

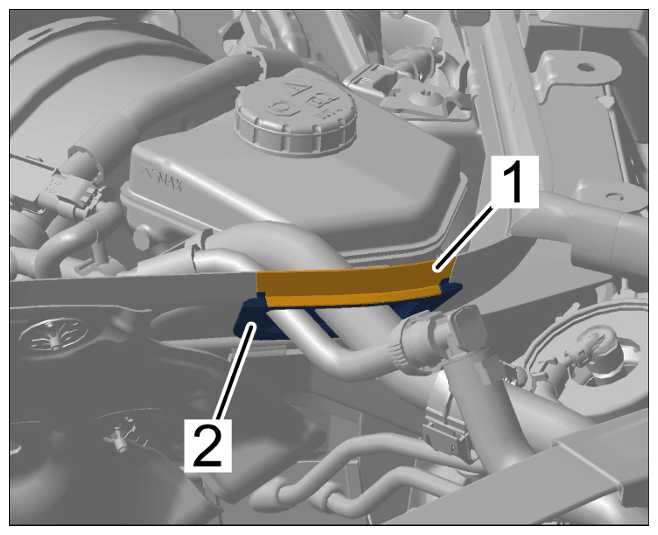

1. Remove latch -1-  on line seal -2-  .
2. Remove line seal -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing line seal

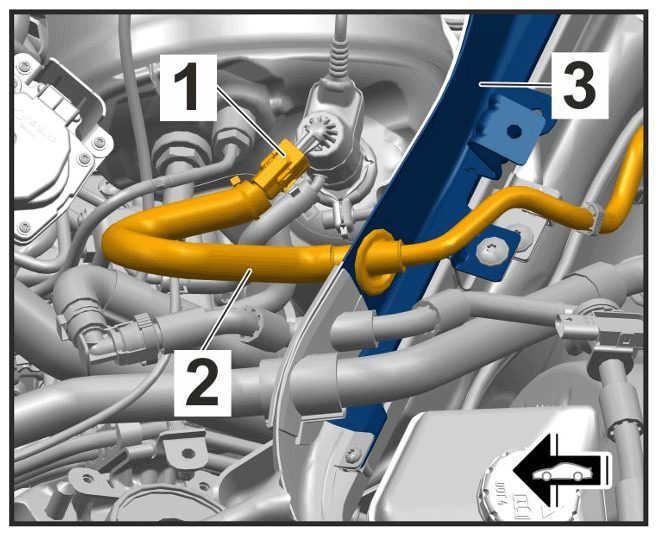

3. Only for vehicles with diesel engine:  Remove reducing agent supply line -2-  from upper part of plenum panel -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Reducing agent supply line

   WARNING: Toxic substances

   • Danger of poisoning or suffocation
   • Danger of burns to the eyes and skin

     → Ventilate the work area well.

     → Never ingest or inhale.

     → Read specific information on the Hazard Sheet.

     → Wear personal protective gear.

     → Do not smoke, eat or drink in the work area.

   WARNING: Caustic fluids

   • Danger of chemical burns

     → Wear personal protective gear.

     → Ensure that there is good ventilation.

     → Avoid contact with caustic fluid.

     → If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.

   NOTE: Aggressive fluids

   • Risk of damage to components and surfaces

     → Do not spill fluids.

     → In the event of contact, wash the component or surface with water.

     → Replace components that are already damaged.

   Information

   Automatic back-siphonage of the reducing agent

   • When the ignition is switched off, the reducing agent is siphoned back out of the metering line for the reducing agent injection valve again into the reducing agent tank.
   • It is important to wait until the back-siphonage process is completed fully before starting work in this area. This can take up to 10 minutes after switching off the ignition.
   • Likewise, the battery must not be disconnected until after the back-siphonage process is complete, i.e. 10 minutes after switching off the ignition.
   1. 3.1 Place a cloth underneath to absorb emerging reducing agent.
   2. 3.2 Release and disconnect reducing agent supply line at the reducing agent injection valve -1-  .
   3. 3.3 Guide reducing agent supply line with grommet out of upper part of plenum panel -3-  .

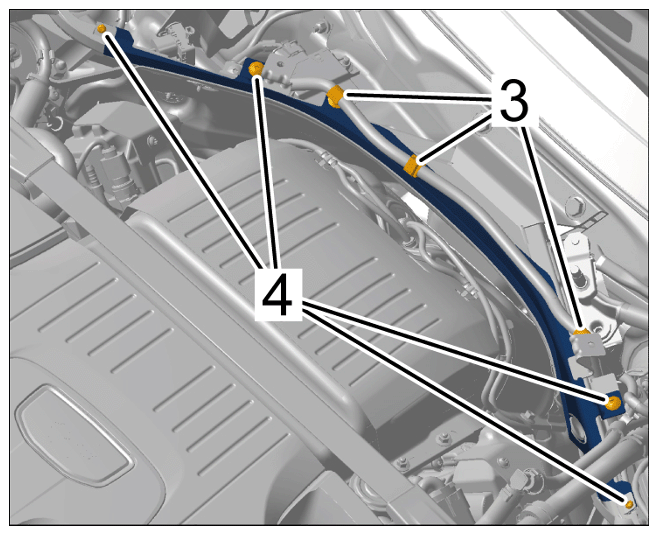

4. Unclip line bracket -3-  .
5. Unscrew and remove screws -4-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Unscrewing screws

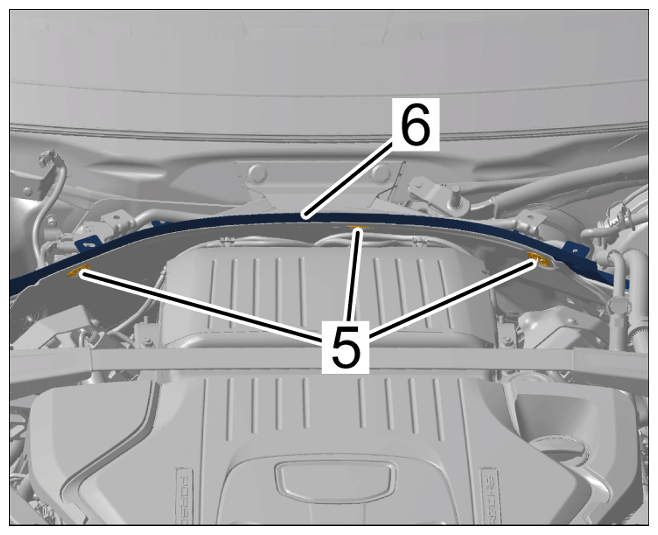

6. Remove star nuts -5-  .
7. Remove upper part of plenum panel at the centre -6-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing upper part of plenum panel at the centre

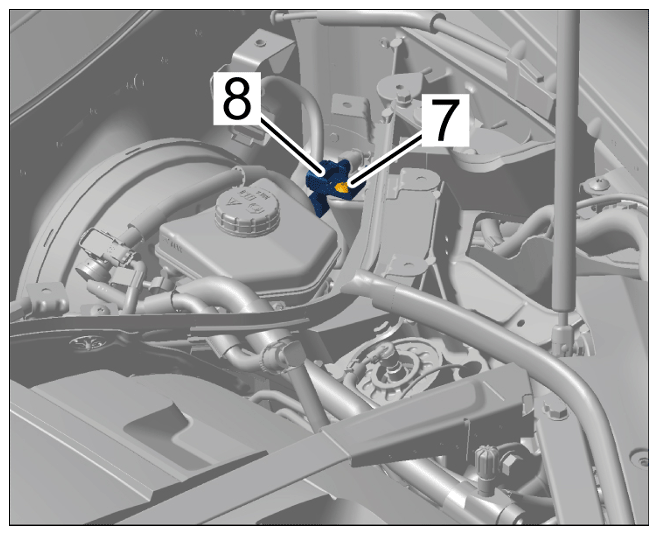

8. Unscrew screw -7-  on holder -8-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Unscrewing screw

9. Loosen alarm siren.

   > 966519 REMOVING AND INSTALLING ALARM SIREN

   Information

   • Lines remain fitted on upper part of plenum panel at the side.

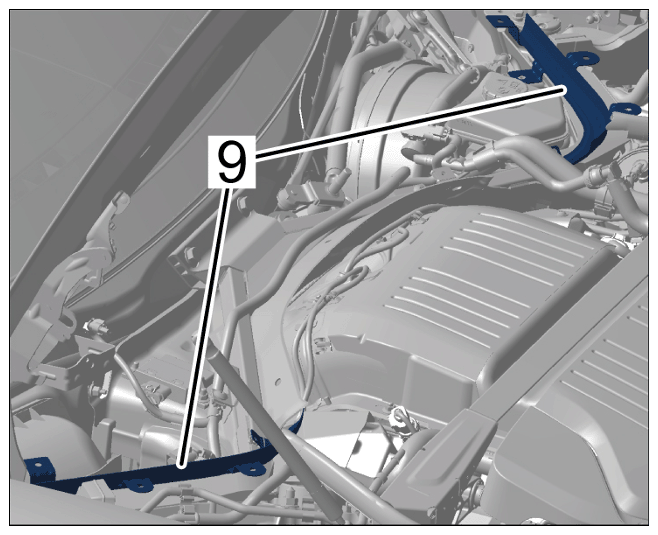

10. Remove upper part of plenum panel at the side -9-  at the left and right and set it aside with lines.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing side plenum panel

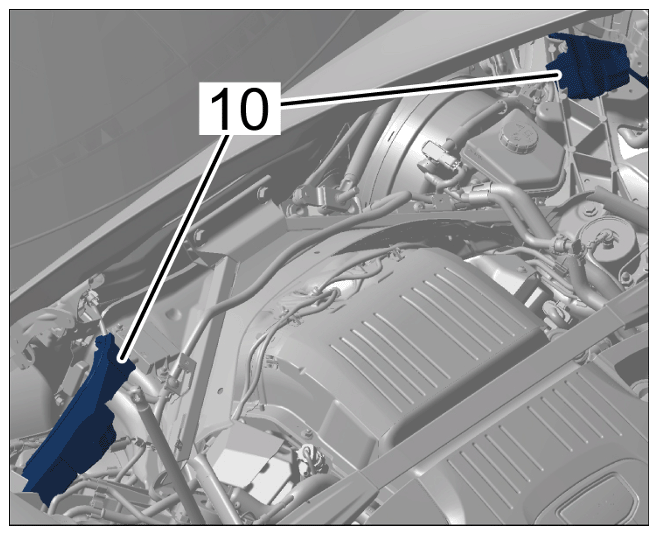

11. Fold up foam parts -10-  at the left and right.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Folding up foam parts

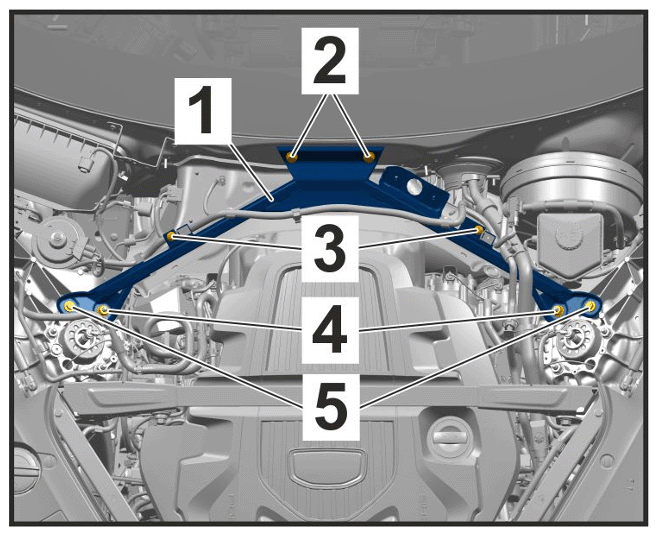

12. Remove strut -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing strut

1. 12.1 Unscrew fastening screws -2, 3 and 5-  .
2. 12.2 Unscrew nuts -4-  .
3. 12.3 Swivel out strut under the air conditioning line.
