Installing Strut

WARNING: This page is about a different car, the 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Installation is performed in reverse order. Observe specified tightening torques:

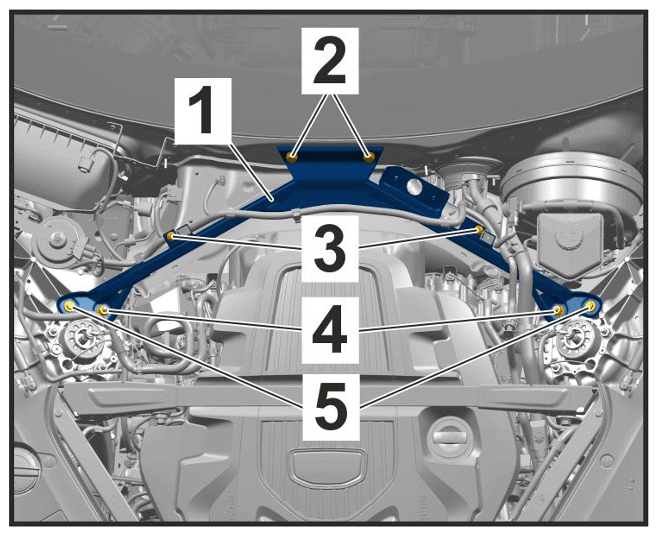

1.1 Secure the strut -1- .
A-strut to cowl panel -2- : > Tightening torque 40 Nm (30 ftlb.)

A-strut to cross panel -3- : > Tightening torque 8 Nm (6 ftlb.)

Spring strut with A-strut to body -4- : > Initial tightening 40 Nm (30 ftlb.) > Final tightening + 45°

A-strut to body -5- : > Initial tightening 20 Nm (15 ftlb.) > Final tightening 90°

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Strut mounting
1.2 Upper part of plenum panel at the side to spring strut mount: > Tightening torque 8 Nm (6 ftlb.) +/- 15 %

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

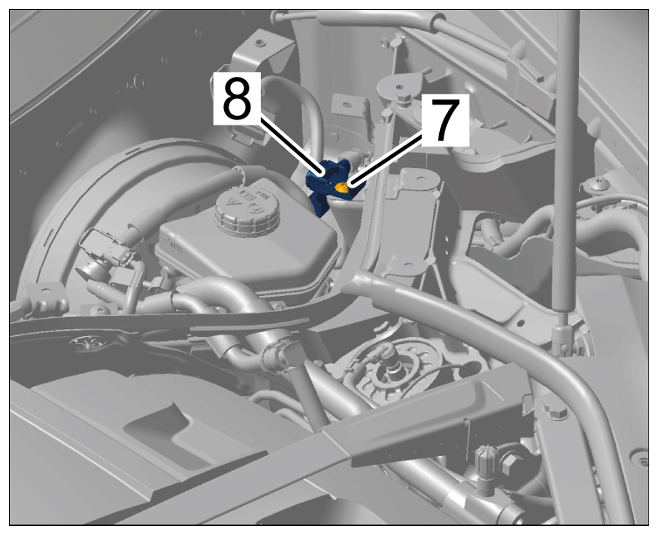

Side plenum panel to spring strut mount

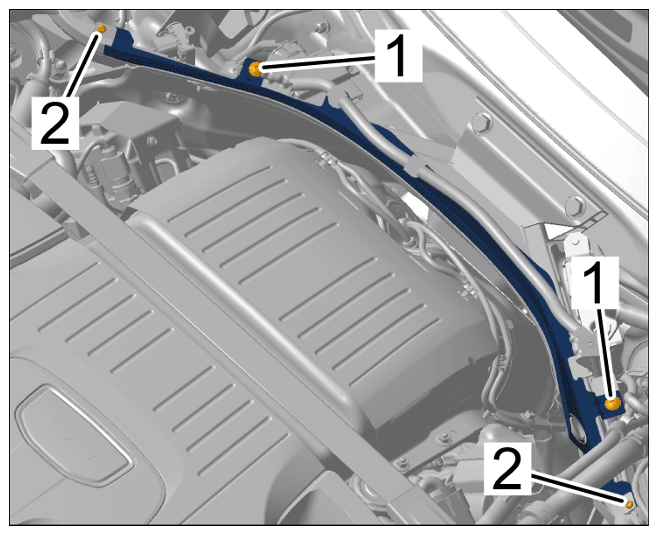

1.3 Screw securing upper part of plenum panel at the centre to A-strut -1- : > Tightening torque 8 Nm (6 ftlb.) +/- 15 %

Upper part of plenum panel at the side to centre plenum panel -2- : > Tightening torque 4 Nm (3 ftlb.) +/- 15 %

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for A-strut
