Component Information

WARNING: This page is about a different car, the 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

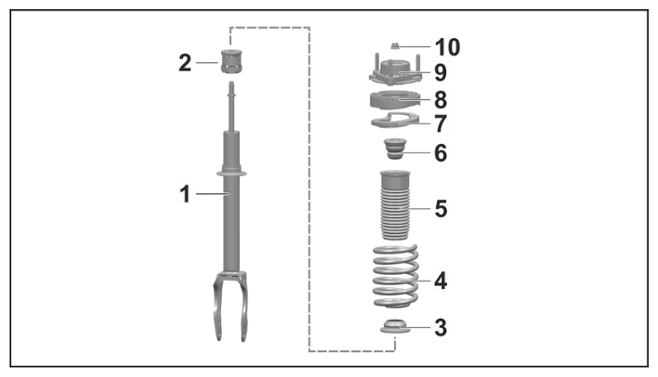

Fig 1: Front Spring Strut Components Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front spring strut

1	Shock absorber
2	Damper cap
3	Spring plate, lower
4	Coil spring
5	Bellows
6	Rubber stop
7	Upper spring plate
8	Upper insert
9	Supporting mount
10	Hexagon nut, M14 x 1.5

WARNING: Preloaded or pressurised components

Risk of squashing or bruising
→ Do not reach into the danger area.

→ Relieve tension on components before starting work.

→ Secure components to prevent them from loosening suddenly.

Information

Recommendation for workshops replacing shock absorbers/spring dampers:

Dampers can be replaced separately up to a mileage of 30, 000 km or 3 years.
If the mileage is > 30, 000 km or the components are more than 3 years old, we recommend replacing them in pairs.

Information

If the coil spring is replaced: Always replace coil springs in pairs only!

Clamp the spring strut in > VAS 6908 - Stationary Spring Compressor in such a way that the mounting plates of the spring tensioning device are positioned on the spring strut supporting mount > Disassembling and assembling front spring strut
Pre-tension the spring strut until the tension on the piston rod is relieved.

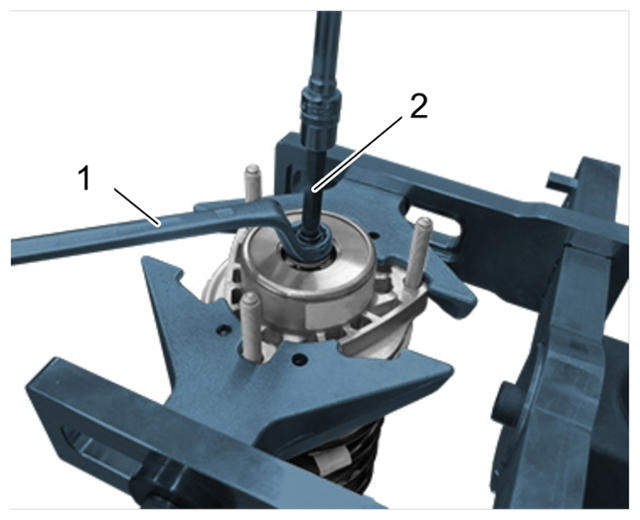

Unscrew nut using an angled ring wrench -1- or > T10001 - shock absorber set . Counter using multiple-tooth screw -2- on the piston rod at the same time.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disassembling and assembling front spring strut
Relieve tension on the spring strut (there must be no tension on the coil spring!).
Remove all components from the piston rod.

If you are replacing the lower spring plate, also replace the shock absorber cap.

Information

Do not damage/scratch the shock absorber pipe and piston rod.

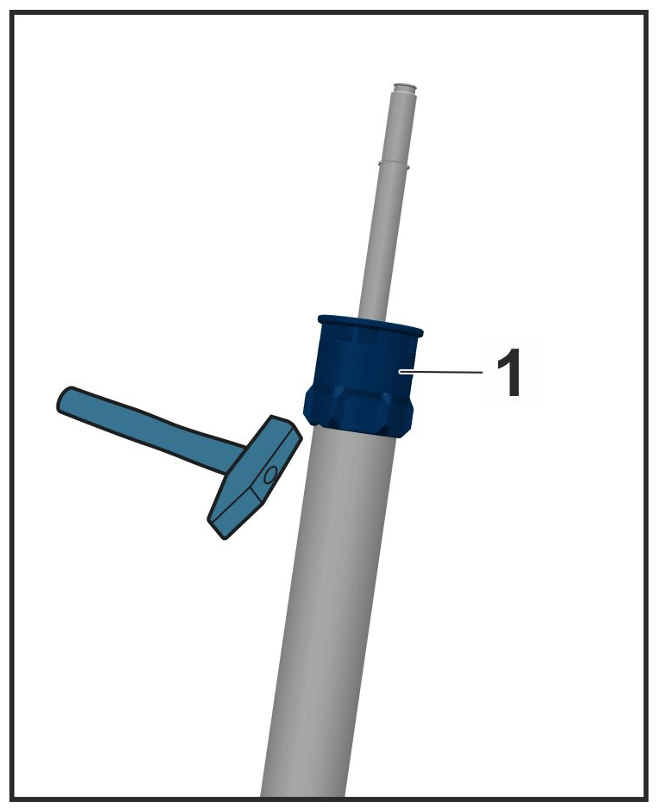

6.1 Carefully remove the shock absorber cap -1- from the shock absorber using a plastic hammer.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing shock absorber cap

Information

Do not fit the stop cap at an angle!

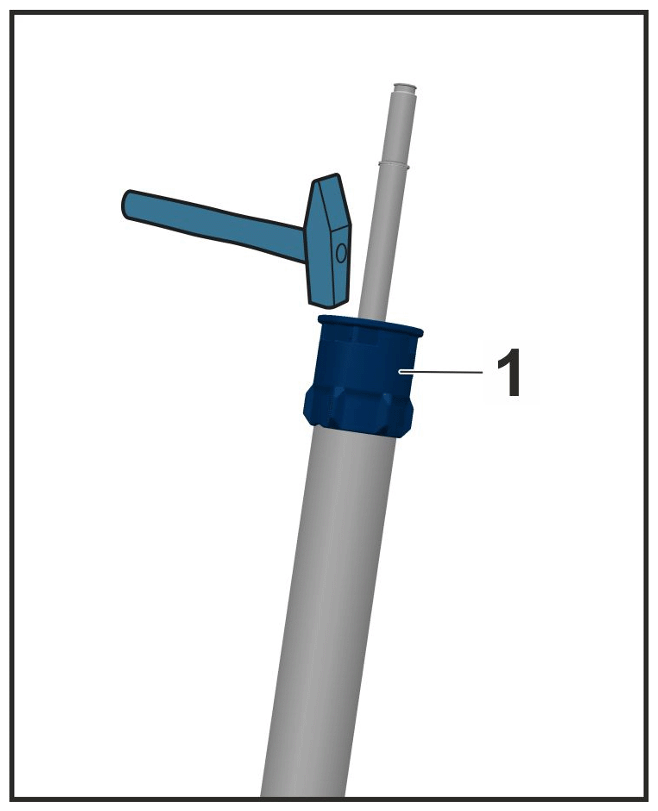

6.2 Carefully re-fit the shock absorber cap -1- on the shock absorber using a plastic hammer.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fitting shock absorber cap

Information

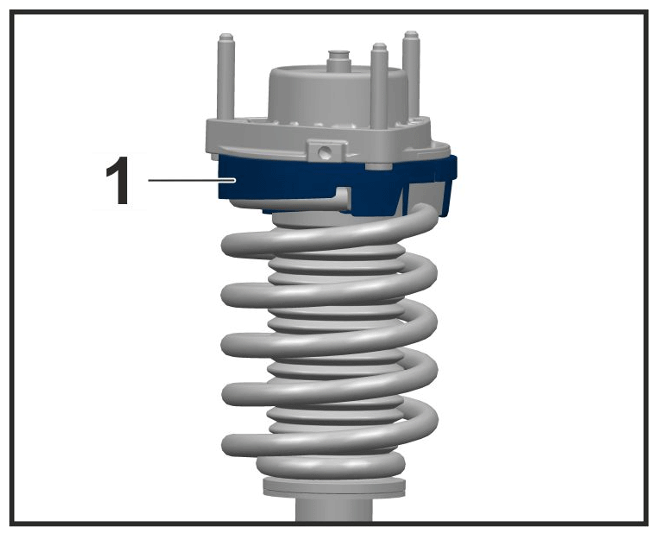

The upper insert -1- must match the coloured dot on the coil spring!

Colours for upper insert:

Grey
Beige
Black

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Upper insert

Fit all components on the piston rod.

Align the spring-strut mount with the shock absorber fork.

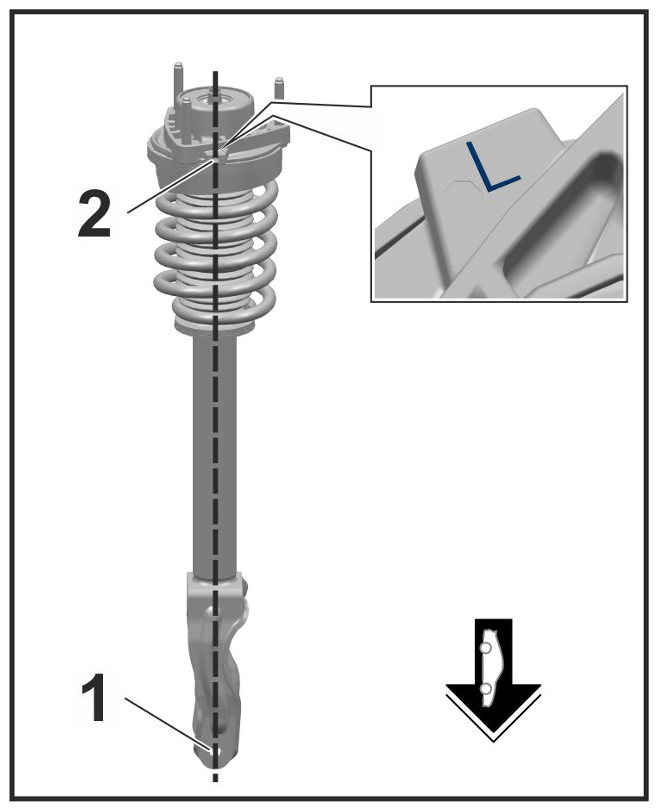

8.1 Left spring strut: The bore -1- in the shock absorber fork must be flush with the bore -2- in the supporting mount (marking -L- ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Aligning left spring strut

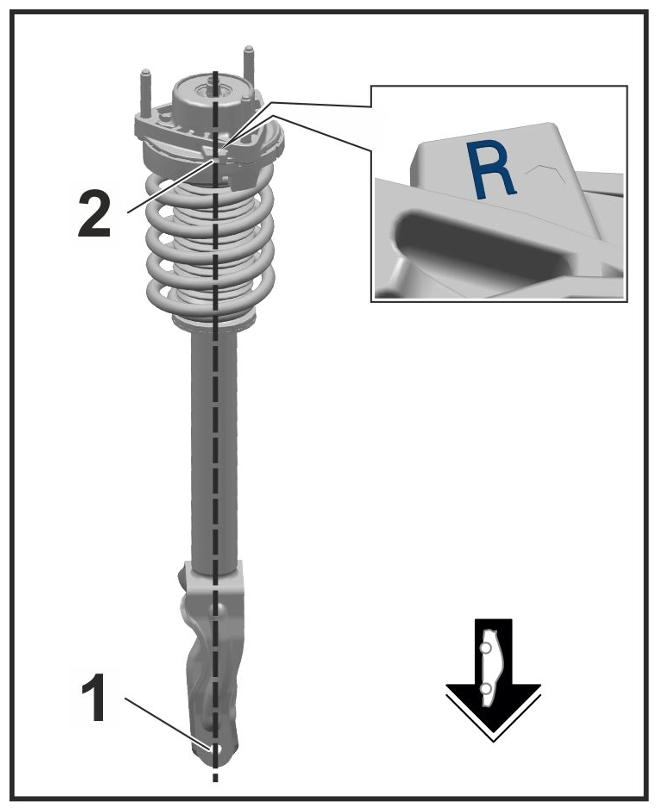

8.2 Right spring strut: The bore -1- in the shock absorber fork must be flush with the bore -2- in the supporting mount (marking - R- ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Aligning right spring strut

Pre-tension the spring strut until the tension on the piston rod is relieved.
Tighten nut on the supporting mount > Tightening torque 53 Nm (39 ftlb.) > Disassembling and assembling front spring strut . Counter using multiple-tooth screw -2- on the piston rod at the same time.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disassembling and assembling front spring strut
Relieve tension on the spring strut and remove it from > VAS 6908 - Stationary Spring Compressor .
