Subsequent Work: Reworking

WARNING: This page is about a different car, the 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Wheel bearing housing raised incorrectly

Risk of crushing
Risk of damage to components
→ Wear personal protective gear.

→ Do not raise the wheel suspension higher than the normal vehicle position (vehicle resting on wheels).

Information

Threaded joints must only be tightened in zero position to prevent warping in the bearings.

Only for the right drive shaft: Install front axle support (rear section).
> WM, 400819 REMOVING AND INSTALLING FRONT-AXLE SUPPORT
Installing wheel bearing housing.
> WM, 405019 REMOVING AND INSTALLING WHEEL BEARING HOUSING
Installing front underbody cover.
> WM, 519219 REMOVING AND INSTALLING COVER FOR FRONT UNDERBODY
Install header tank panel cover.
> WM, 852219 REMOVING AND INSTALLING PLENUM PANEL COVER COUPE or WM, 852219 REMOVING AND INSTALLING PLENUM PANEL COVER WAGON

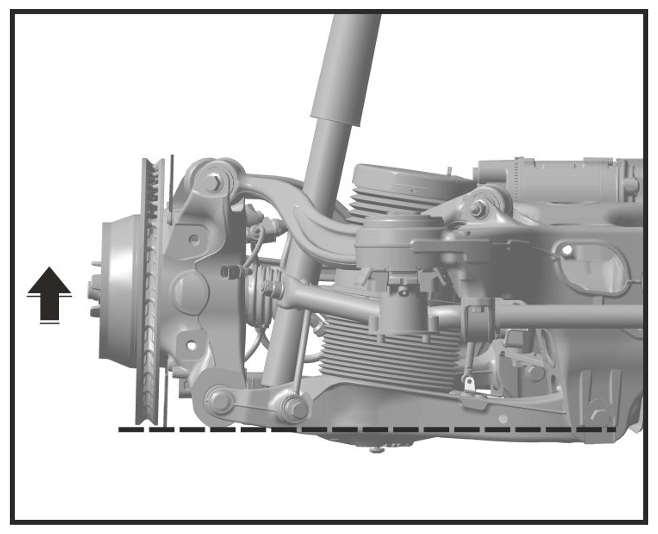

Raise the wheel bearing housing as far as required using a jack (e.g > VAS 6931 - engine and gearbox jack ) until the lower trailing arm is horizontal > Zero position (shown on rear axle as an example)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Zero position (shown on rear axle as an example)

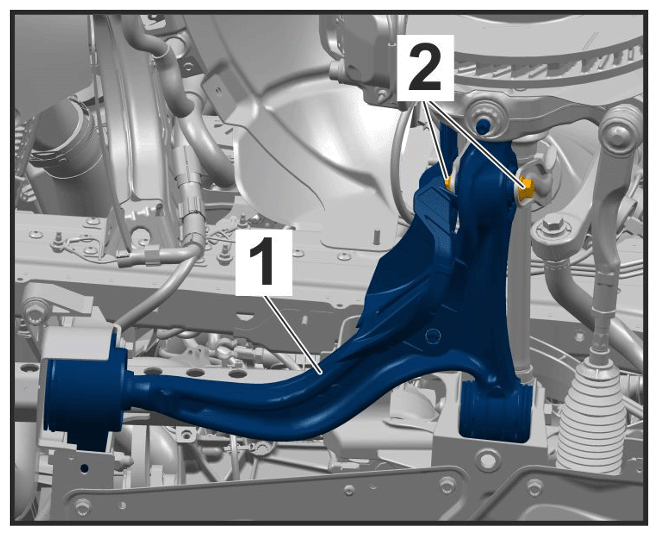

Tighten bolts securing spring strut to lower trailing arm -2- > Initial tightening 90 Nm (67 ftlb.) > Final tightening + 120°

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for spring strut on lower trailing arm
