Installing Front Spring Strut

1. Only for right drive shaft:  Replace shaft sealing ring in the final drive.

   > WM, 395955 REPLACING SEALING RING FOR ALL-WHEEL DRIVE FLANGE SHAFT

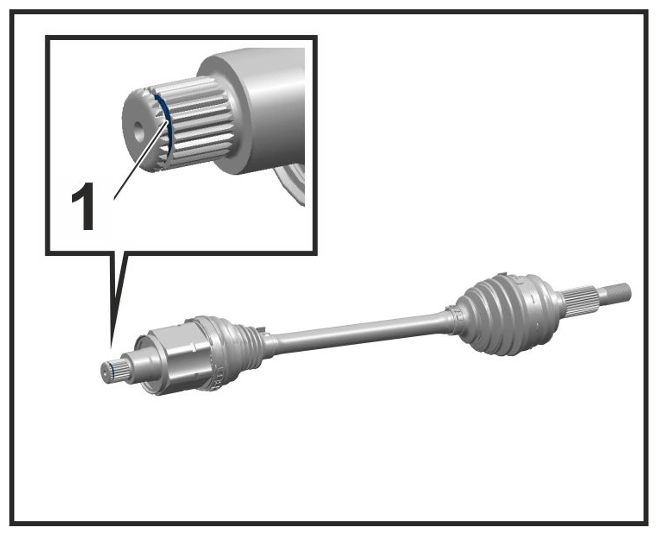

2. Only for right drive shaft:  Replace circlip -1-  on the drive shaft.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Circlip

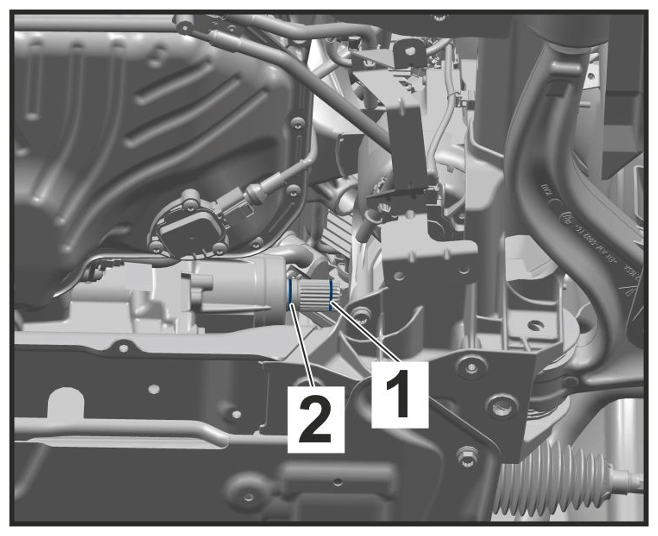

3. Only for left drive shaft:  Replace circlip -1-  and sealing ring -2-  on the front final drive shaft.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Circlip and sealing ring

   Information

   • Molub Alloy Paste TA can be ordered using the Porsche Electronic Parts Information (PET).

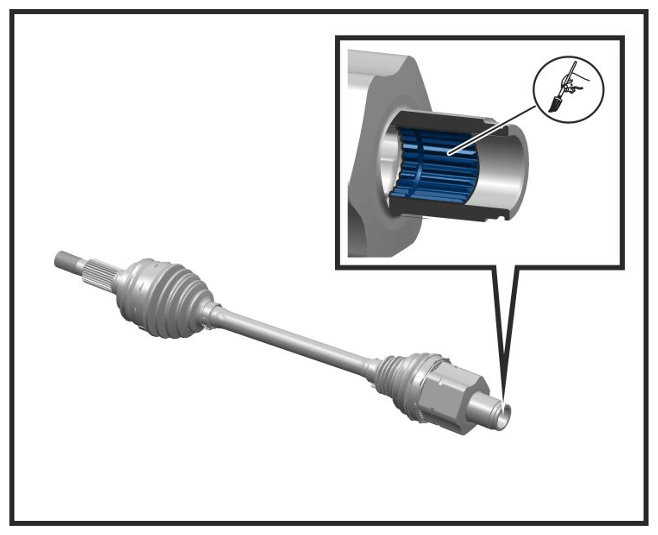

4. Only for left drive shaft:  Grease splines on the drive shaft with Molub Alloy Paste TA > Greasing splines

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Greasing splines

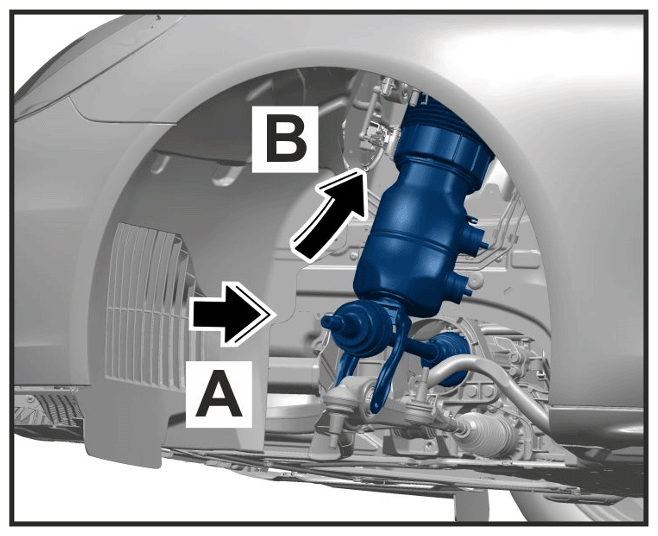

5. Move spring strut together with drive shaft into installation position -arrow A/B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Moving spring strut with drive shaft into installation position (shown on air-spring strut as an example)

   Information

   • Make sure not to damage the sealing ring when guiding the drive shaft into the final drive.
   • Check that the profile splines on the drive shaft and transmission side interlock securely!
   • The use of an impact tool is not permitted.
   1. 5.1 Fit drive shaft into the front final drive with a quick jerking movement.

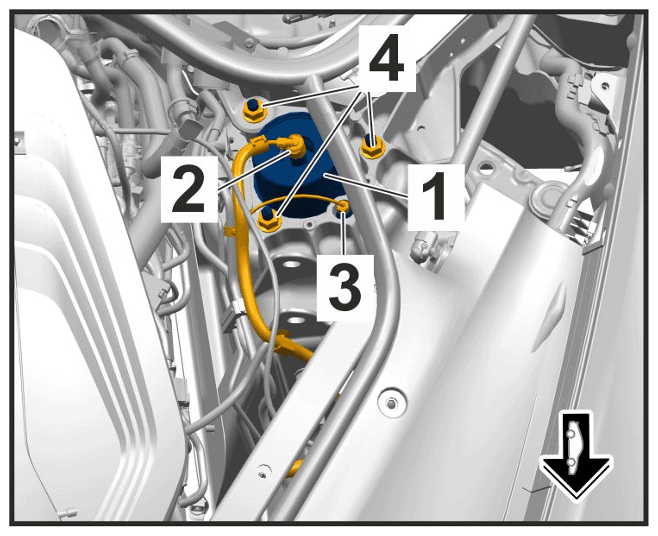

6. Fit upper spring strut -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Upper spring strut mounting (shown on air-spring strut as an example)

   1. 6.1 Get another person to help by holding the spring strut and drive shaft.
   2. 6.2 Tighten nuts -4-  > Initial tightening 40 Nm (30 ftlb.)  > Final tightening + 45°
   3. 6.3 Connect and lock electric plug connection -2-  .

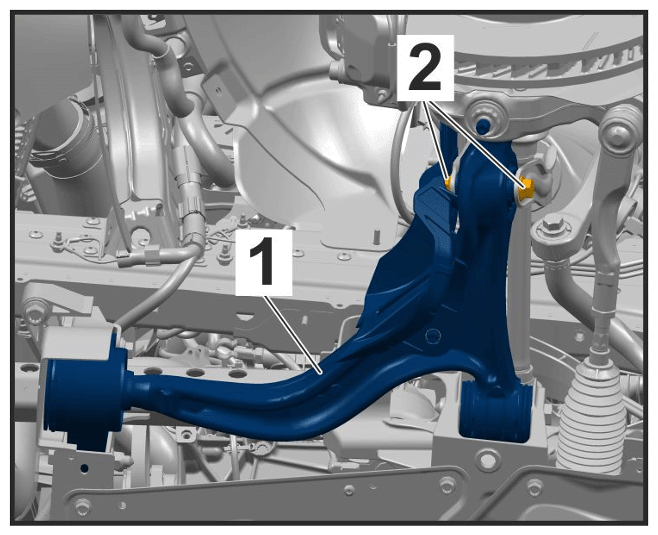

7. Fit spring strut on lower trailing arm -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for spring strut on lower trailing arm

1. 7.1 Install bolts -2-  (do not tighten!).
2. 7.2 Remove protective tube (shop-made) from the drive shaft.
