Removing Anti-Roll Bar Mount

WARNING: This page is about a different car, the 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

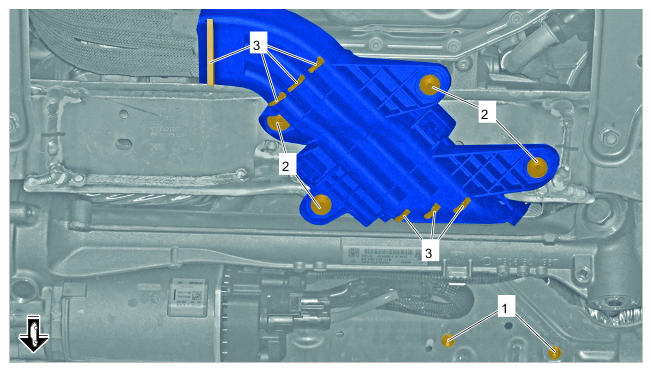

  1. Only for e-Hybrid vehicles:  Loosen high-voltage line brackets.
    1. 1.1 Loosen screws -1-  for high-voltage line brackets on anti-roll-bar mount.
    2. 1.2 Remove expansion rivets -2-  .
    3. 1.3 Open tie-wrap -3-  and remove high-voltage line brackets from front-axle carrier.
    G15856276Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Holder for high-voltage lines on anti-roll bar mount

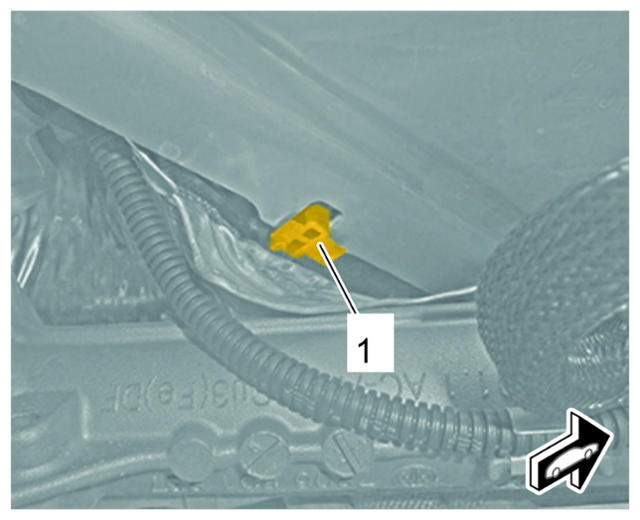

  2. Only for e-Hybrid vehicles:  Unclip cable holder for high-voltage lines -1-  from anti-roll-bar mount.
    G15856277Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cable holder for high-voltage lines on anti-roll bar mount

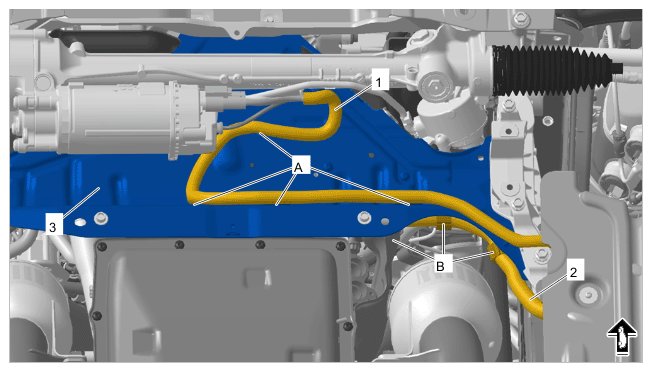

  3. Only for e-Hybrid vehicles:  Disconnect electric lines for steering -1-  and transmission -2-  at the anti-roll bar mount -3-  .
    1. 3.1 Unclip electric line for steering -1-  at -items A-  on the anti-roll bar mount -3-  .
    2. 3.2 Unclip electric line for transmission -2-  at -items B-  on the anti-roll bar mount -3-  .
    G15856278Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric lines on anti-roll bar mount on e-Hybrid vehicle

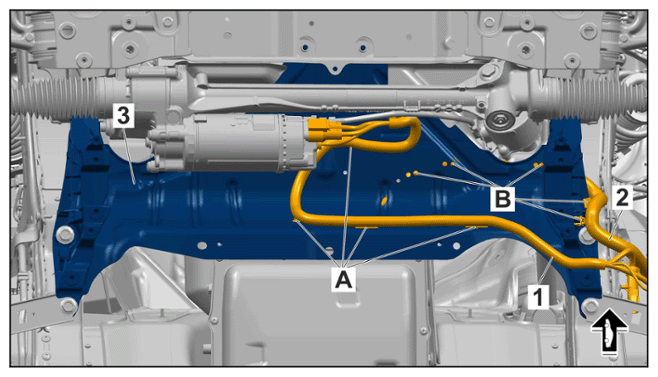

  4. Not for e-Hybrid vehicles:  Disconnect electric line for steering -1-  and transmission -2-  at the anti-roll bar mount -3-  .
    1. 4.1 Unclip electric line for steering -1-  at -items A-  on the anti-roll bar mount -3-  .
    2. 4.2 Unclip electric line for transmission -2-  at -items B-  on the anti-roll bar mount -3-  .
    G15856279Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric lines on anti-roll bar mount

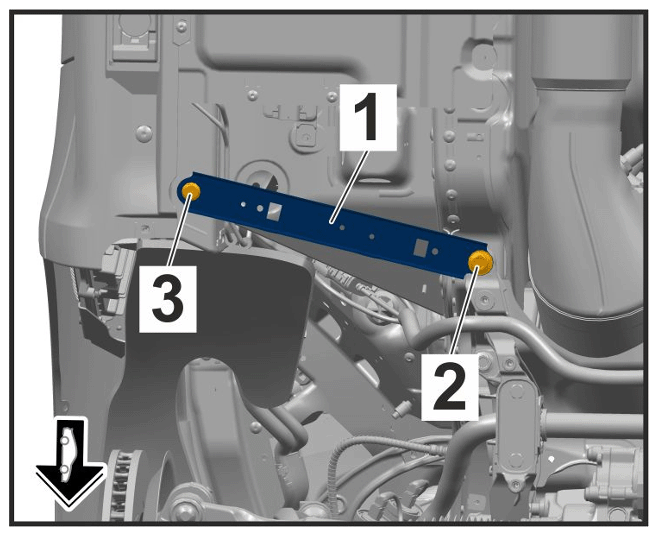

  5. Remove strut -1-  on both sides of the vehicle.
    1. 5.1 Unscrew screws -2 and 3-  .
    G15856280Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Strut mounting

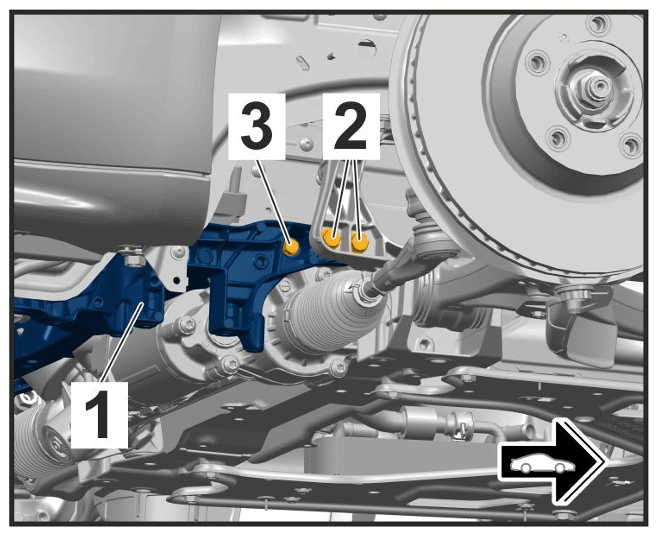

  6. Loosen anti-roll bar mount -1-  at the sides.
    1. 6.1 Unscrew screws -2-  on the front-axle carrier on both sides of the vehicle.
    2. 6.2 Only at the left (RHD vehicles)/only at the right (LHD vehicles):  Unscrew screw -3-  and counter at the nut on the steering gear at the same time.
    G15856281Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Anti-roll bar mount at the sides

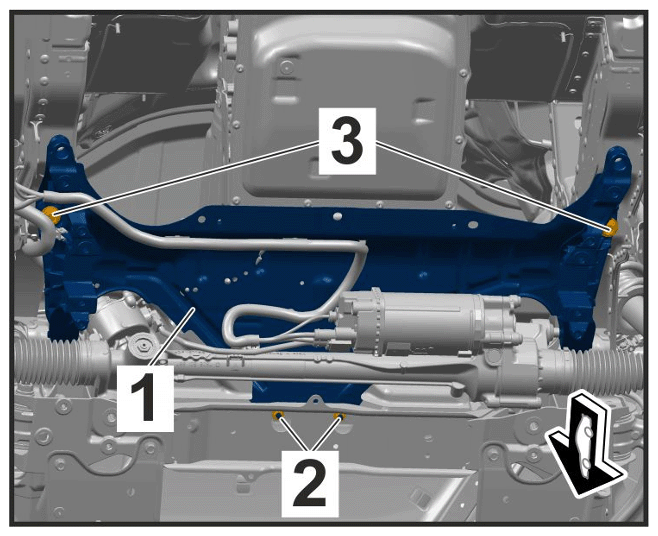

  7. Loosen anti-roll bar mount -1-  at the front and rear.
    1. 7.1 Unscrew screws -2-  on the front-axle carrier.
    2. 7.2 Unscrew screws -3-  on the body.
    G15856282Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Anti-roll bar mount at front and rear

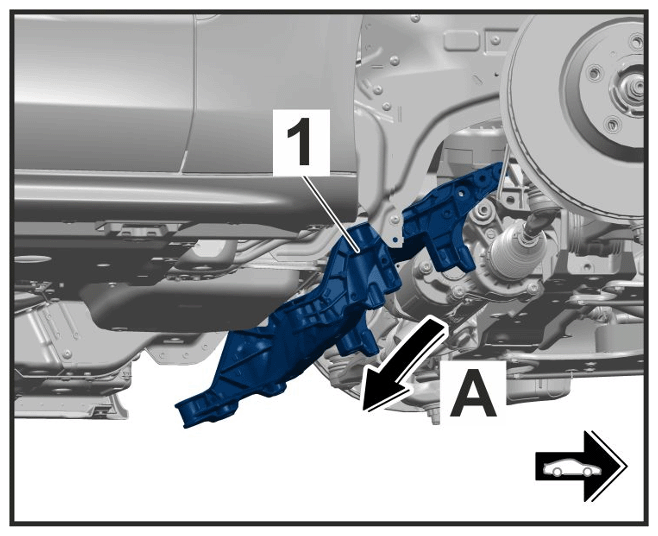

  8. Carefully guide anti-roll bar mount -1-  down and out -arrow A-  .
G15856283Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing anti-roll bar mount
