Installing Anti-Roll Bar Mount

WARNING: This page is about a different car, the 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

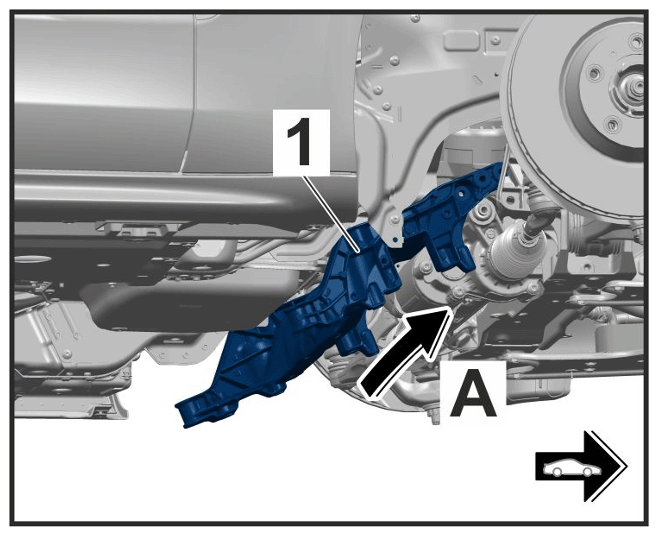

  1. Carefully move anti-roll bar mount -1-  into installation position -arrow A-  .
    G15856284Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Moving anti-roll bar mount into installation position

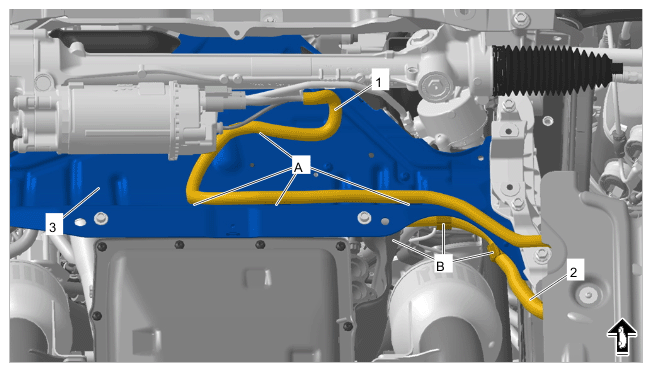

  2. Only for e-Hybrid vehicles:  Secure electric line for steering -1-  and electric line for transmission -2-  at -items A and B-  on the antiroll bar mount -3-  .
    G15856285Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric lines on anti-roll bar mount on e-Hybrid vehicle

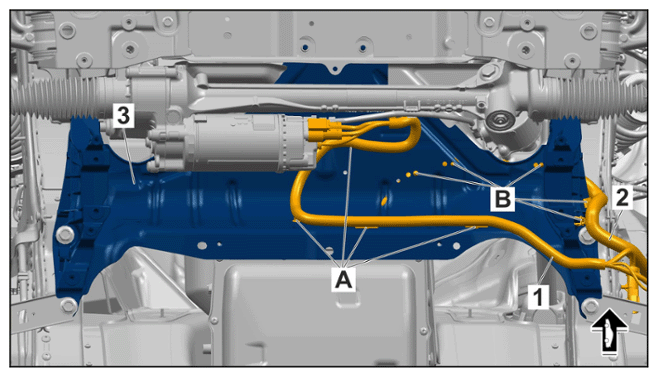

  3. Not for e-Hybrid vehicles:  Secure electric line for steering -1-  and electric line for transmission -2-  at -items A and B-  on the anti-roll bar mount -3-  .
    G15856286Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric lines on anti-roll bar mount

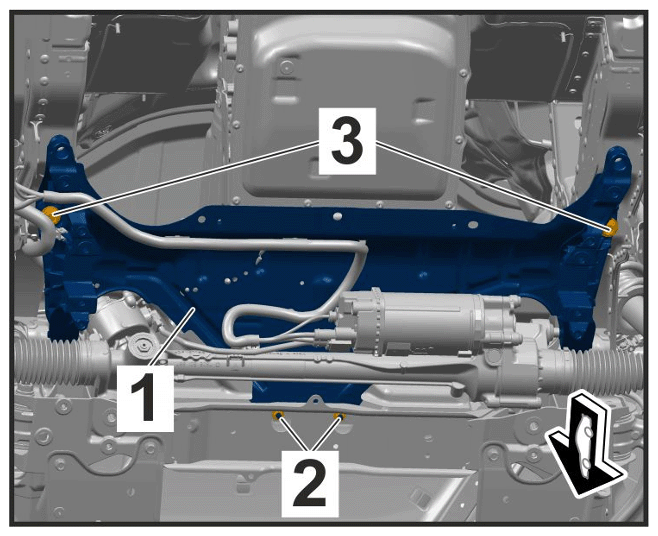

  4. Secure anti-roll bar mount -1-  at the front and rear.
    1. 4.1 Tighten screws -3-  on the body > Initial tightening 70 Nm (51.6 ftlb.)  > Final tightening + 180°
    2. 4.2 Tighten screws -2-  on the front-axle carrier > Initial tightening 20 Nm (14.8 ftlb.)  > Final tightening + 30°
    G15856287Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Anti-roll bar mount at front and rear

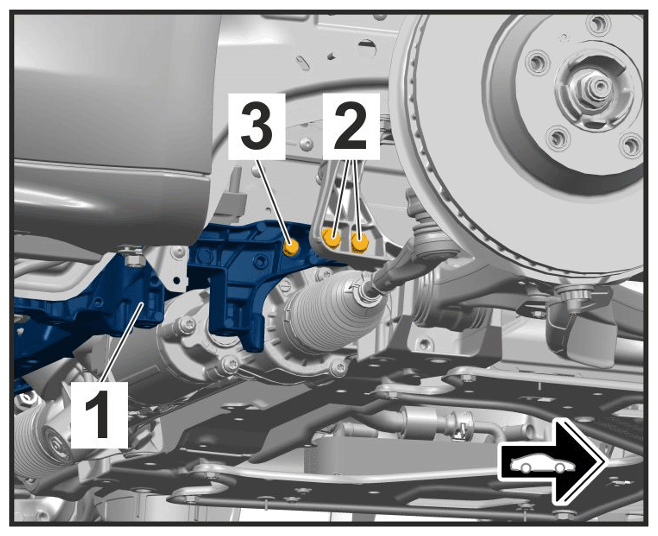

  5. Tighten anti-roll bar mount -1-  at the sides.
    1. 5.1 Only at the left (RHD vehicles)/only at the right (LHD vehicles): Tighten screw -3-  and counter at the nut on the steering gear at the same time > Initial tightening 20 Nm (14.8 ftlb.)  > Final tightening + 180°
    2. 5.2 Tighten screws -2-  on the front-axle carrier on both sides of the vehicle > Initial tightening 50 Nm (36.9 ftlb.)  > Final tightening + 30°
    G15856288Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Anti-roll bar mount at the sides

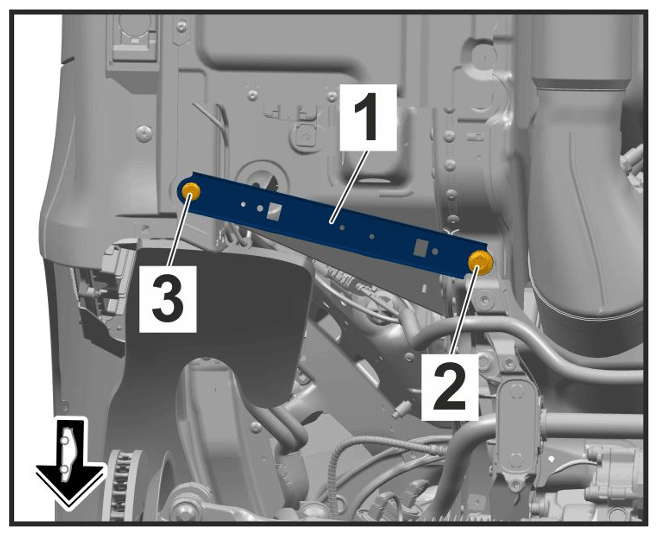

  6. Install strut -1-  on both sides of the vehicle.
    1. 6.1 Tighten screw -2-  > Initial tightening 70 Nm (51.6 ftlb.)  > Final tightening + 180°
    2. 6.2 Tighten screw -3-  > Initial tightening 50 Nm (36.9 ftlb.)  > Final tightening + 45°
    G15856289Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Strut mounting

  7. Secure electric line for steering -1-  and electric line for transmission -2-  at -items A and B-  on the anti-roll bar mount -3-  .
    G15856290Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric lines on anti-roll bar mount

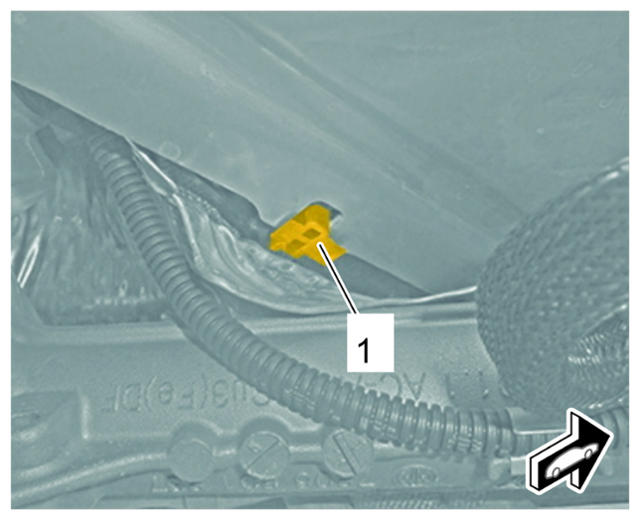

  8. Only for e-Hybrid vehicles:  Clip cable holder for high-voltage lines -1-  into anti-roll bar mount.
    G15856291Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cable holder for high-voltage lines on anti-roll bar mount

  9. Only for e-Hybrid vehicles:  Secure bracket for high-voltage lines.
  1. 9.1 Install bracket for high-voltage lines on front-axle carrier.
    1. 9.1.1 Fit tie-wrap and position bracket for high-voltage lines.
    2. 9.1.2 Clip in upper part of bracket for high-voltage lines.
    3. 9.1.3 Tighten tie-wraps.
    4. 9.1.4 Install expansion rivets.
  2. 9.2 Tighten screws for bracket for high-voltage lines on anti-roll bar mount to > Tightening torque 8 Nm (5.9 ftlb.)  .
