Removing Connecting Link For Anti-Roll Bar

WARNING: This page is about a different car, the 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unscrew nut -2-  .
  2. Remove threaded joint -3-  .

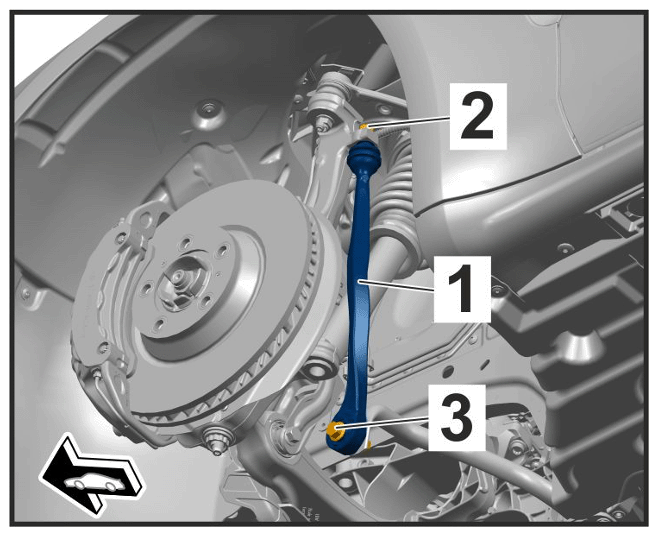

G15856271Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for connecting link for anti-roll bar
