Removing Front Anti-Roll Bar

WARNING: This page is about a different car, the 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove threaded joint -3-  .
    G15856255Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for connecting link for anti-roll bar

  2. Remove anti-roll bar clamps -1-  .

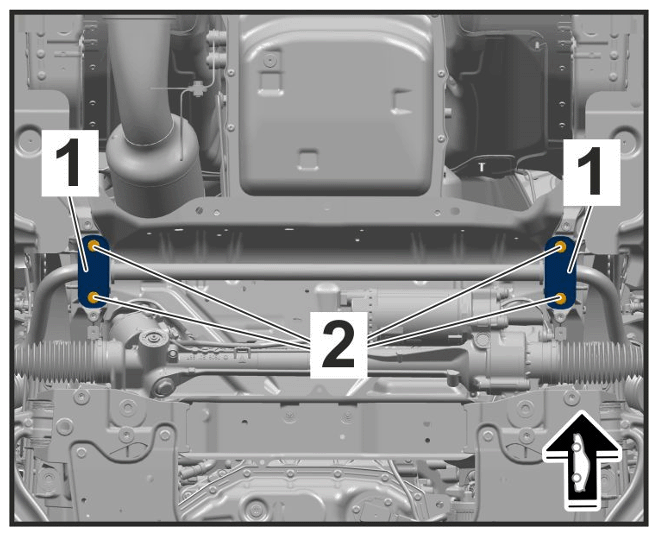

    G15856256Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for anti-roll bar clamps

    1. 2.1 Unscrew fastening screws -2-  .
  3. Remove front anti-roll bar by turning it.
