Technical Values

WARNING: This page is about a different car, the 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
Location Description Type Basic value Tolerance 1 Tolerance 2
Mounting plate for wheel bearing to wheel bearing housing Item 2: Hexagon-head bolt, M8 x 35/always replace bolts following removal! Initial tightening 20 Nm (15 ftlb.)
G15856238Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting plate on wheel bearing housing
Mounting plate for wheel bearing to wheel bearing housing Item 2: Hexagon-head bolt, M8 x 35/always replace bolts following removal! Final tightening + 90°

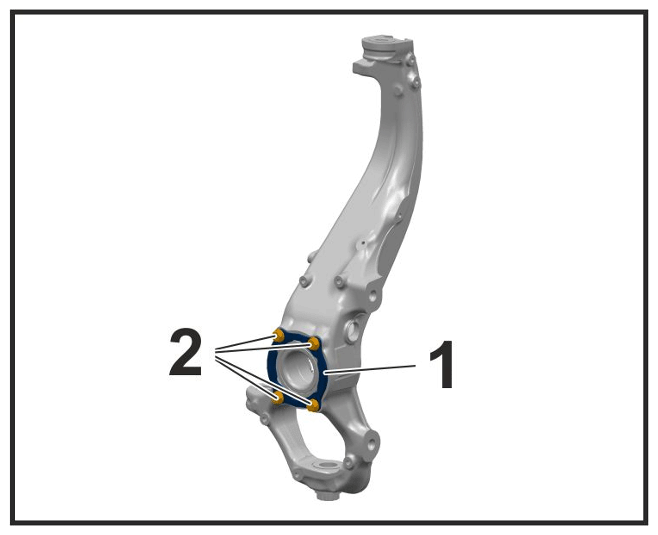

G15856239Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting plate on wheel bearing housing
Heating wheel bearing housing Before pressing in wheel bearing Temperature 80°C
