Technical Values

WARNING: This page is about a different car, the 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value
Lower trailing arm to wheel bearing housing	Item 2: 12 point nut, M14 x 1.5	Tightening torque	130 Nm (96 ftlb.)

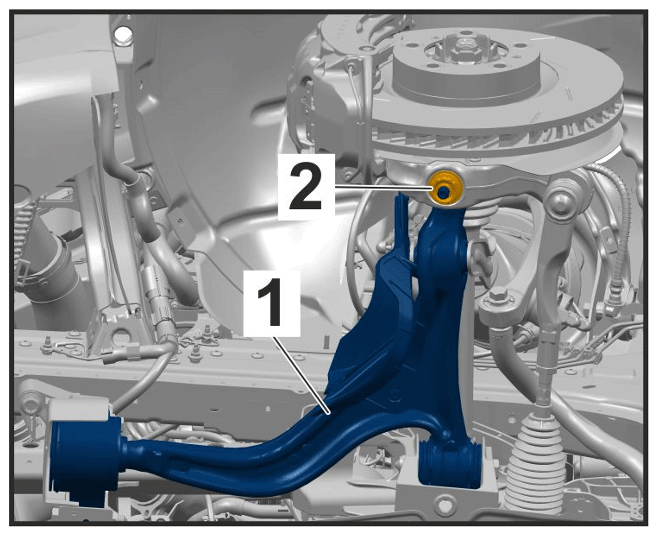

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Securing lower trailing arm on wheel bearing housing
Upper trailing arm to wheel bearing housing	Item 2: Hexagon nut, M12 x 1.5	Tightening torque	85 Nm (63 ftlb.)

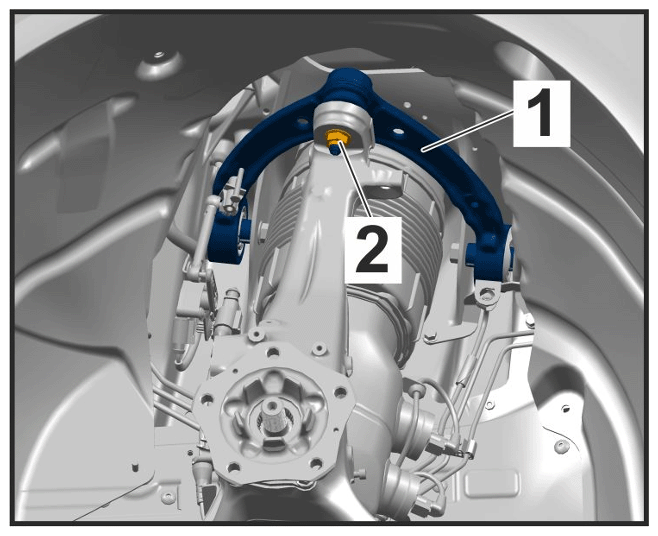

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for upper trailing arm on wheel bearing housing
Cable holder to wheel bearing housing	Item 2: Hexagon-head bolt, M6 x 16	Tightening torque	8 Nm (6 ftlb.)

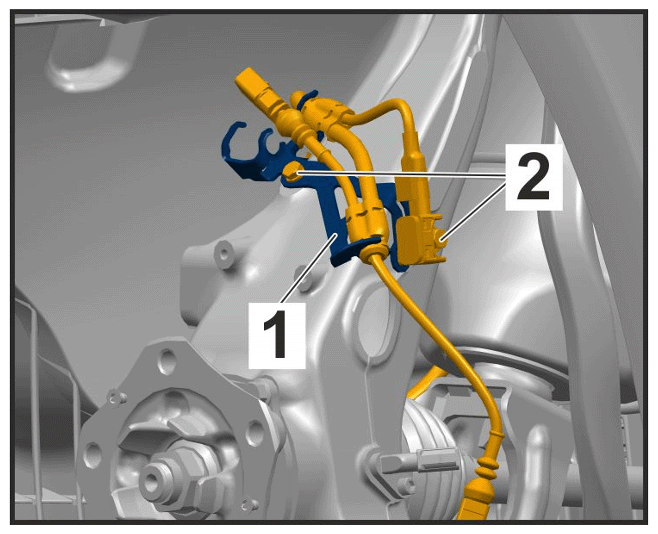

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Cable holder mounting
Sensor for body with cable holder to wheel bearing housing	Item 2: Hexagon-head bolt, M6 x 25	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Cable holder mounting
Tension bolt on wheel hub (vehicle without front drive shaft)	Item 1: Hexagon nut, M22 x 1.5/always replace nut following removal!	Initial tightening	200 Nm (148 ftlb.)

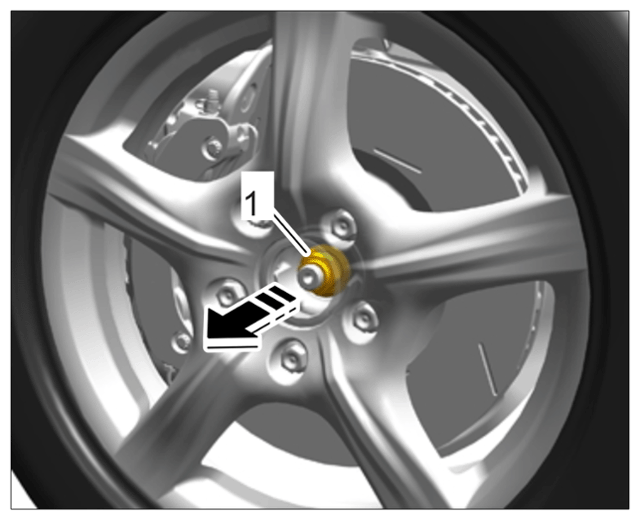

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Axle nut (tension bolt)
Tension bolt on wheel hub (vehicle without front drive shaft)	Item 1: Hexagon nut, M22 x 1.5/always replace nut following removal!	Final tightening	+ 100°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Axle nut (tension bolt)
Drive shaft to wheel hub	Item 1: Hexagon nut, M22 x 1.5	Tightening torque	460 Nm (340 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Axle nut
Tie-rod ball to wheel bearing housing	Hexagon nut, M12 x 1.5	Tightening torque	85 Nm (63 ftlb.)
Brake cover panel to wheel bearing housing	Item 2: Hexagon-head bolt, M6 x 16/always replace bolts following removal!	Tightening torque	8 Nm (6 ftlb.)

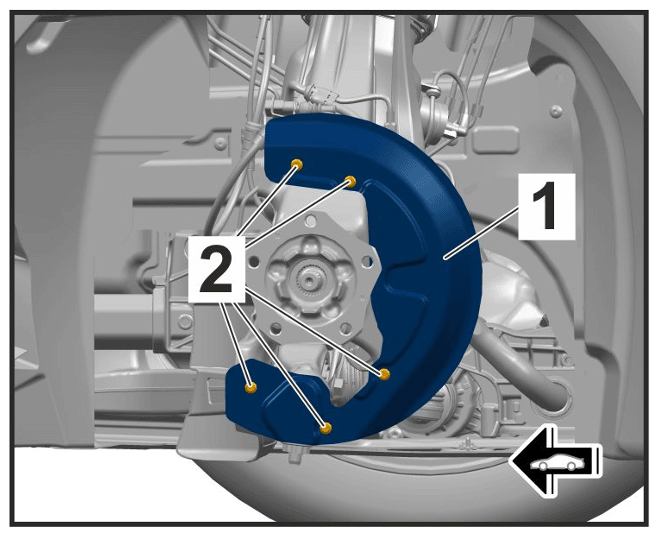

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for brake cover panel
Nut securing front angle sensor for headlight beam adjustment to front-axle carrier	Item 1	Tightening torque	8 Nm (6 ftlb.)

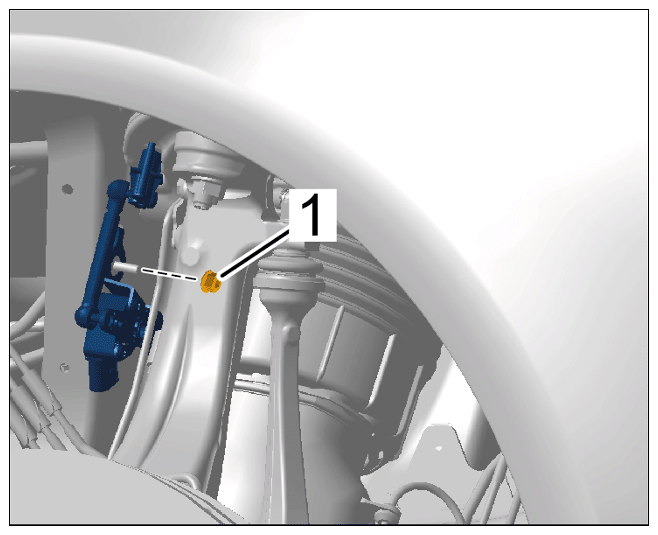

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nut securing front angle sensor for headlight beam adjustment to front-axle carrier
Pressing in drive shaft	Press the drive shaft peg max. 10 mm into the wheel hub	Control value	+ 10 mm
