Removing Wheel Bearing Housing

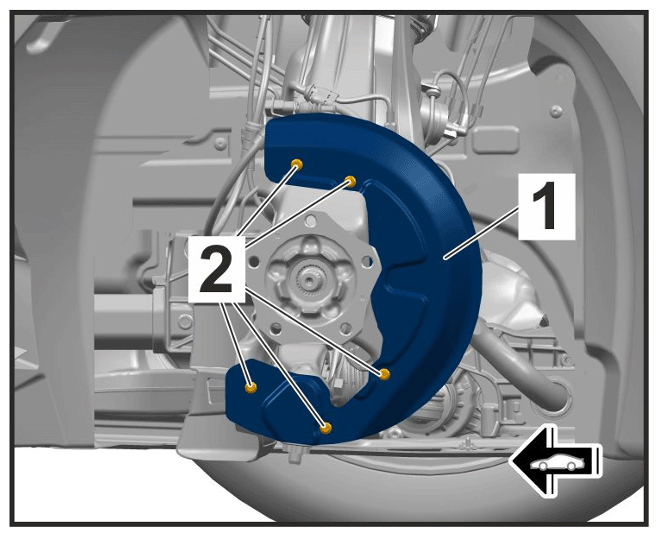

- Remove brake cover panel -1-
.
Mounting for brake cover panel
- 1.1 Unscrew fastening screws -2- .

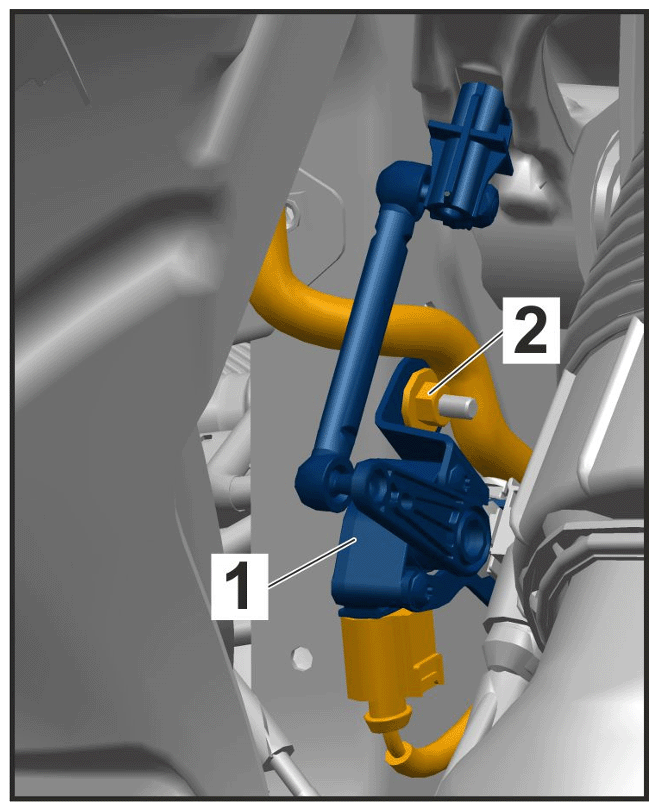

- Remove front level sensor -1-
on the body.
Mounting for front level sensor on body
- 2.1 Screw off nut -2- .

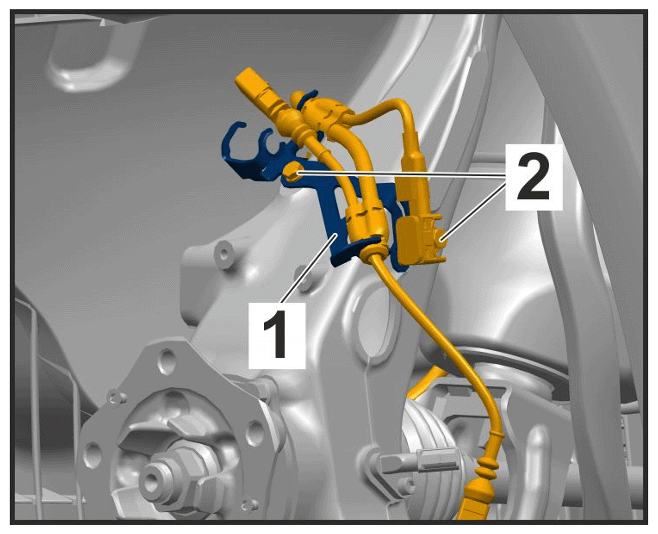

- Remove cable holder -1-
.
Cable holder mounting
- 3.1 Unscrew fastening screws -2- .
- For vehicles with all-wheel drive:
Use > VAS 6926 - Puller set
to press the drive shaft peg max > Control value + 10 mm

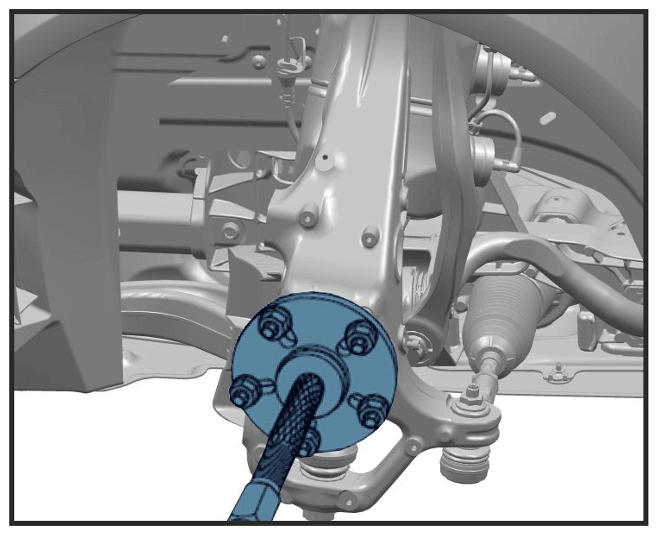

into the wheel hub so that the drive shaft splines are no longer engaged in the wheel hub > Pressing in drive shaft
Pressing in drive shaft

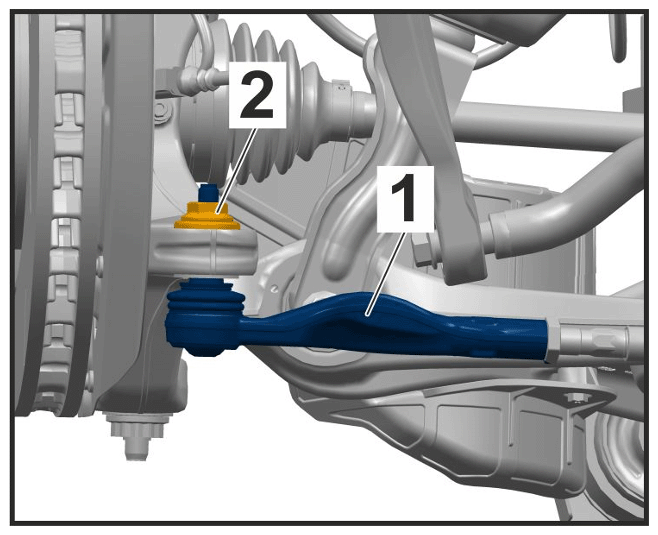

- Remove tie-rod ball -1-
on the wheel bearing housing.
Mounting for tie-rod ball on wheel bearing housing

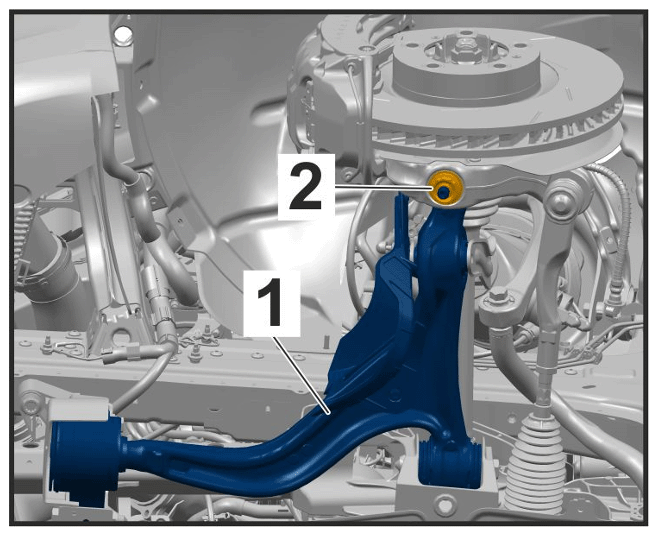

- Remove lower trailing arm -1-
on the wheel bearing housing.
Mounting for lower trailing arm on wheel bearing housing
- 6.1 Support upper trailing arm on the body using > VW552 - Spring tensioner
to prevent damage to the ball joint on the upper trailing arm due to the weight of the wheel bearing housing.
- 6.1.1 > VW552 - Spring tensioner

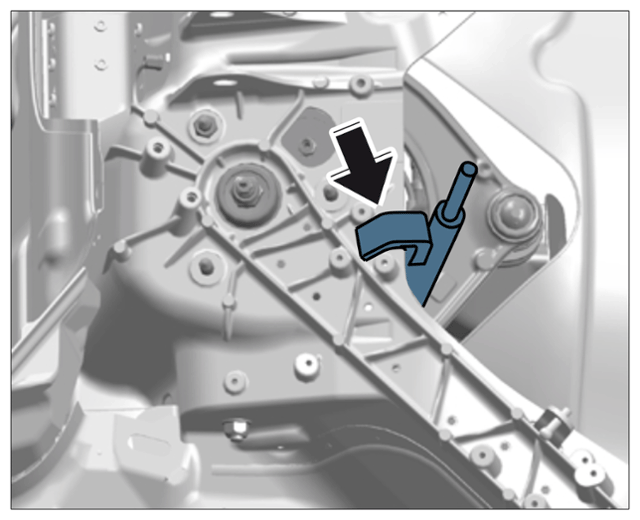

must be secured to body > Securing spring compressor to body
.
Securing spring compressor to body
- 6.1.2 > VW552 - Spring tensioner

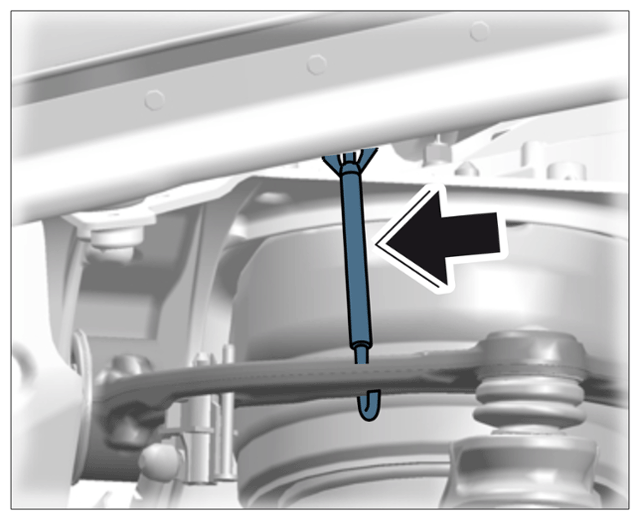

must be secured to the upper trailing arm > Securing spring compressor to upper trailing arm
.
Securing spring compressor to upper trailing arm
- 6.1.3 > VW552 - Spring tensioner must be pre-tensioned slightly.
- 6.1.1 > VW552 - Spring tensioner
must be secured to body > Securing spring compressor to body
.
- 6.2 Unscrew nut -2-
on joint pin for lower axle joint as far as required until it is flush with the upper edge of the joint pin.
Mounting for lower trailing arm on wheel bearing housing
- 6.3 Remove sleeve -1-

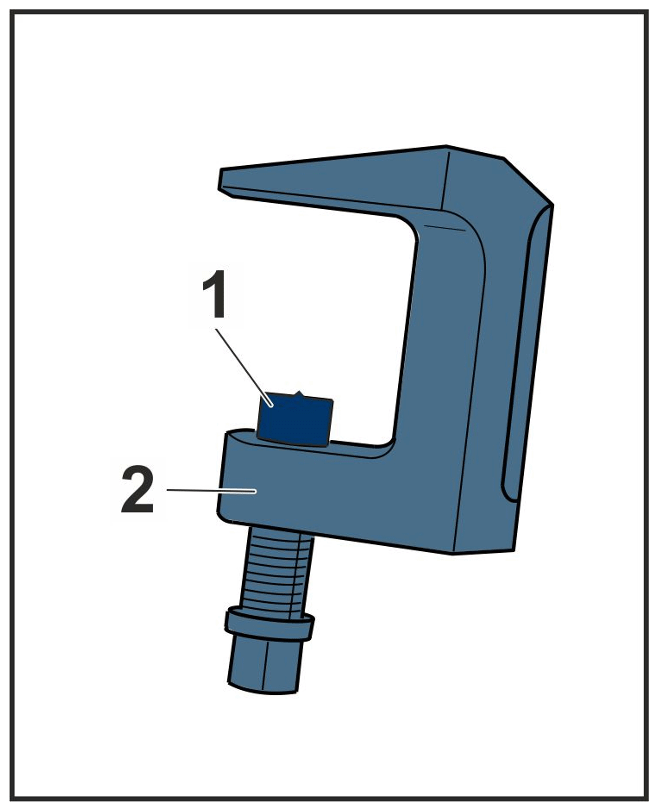

from > T10187 - Press-out tool
.
Removing sleeve from T10187

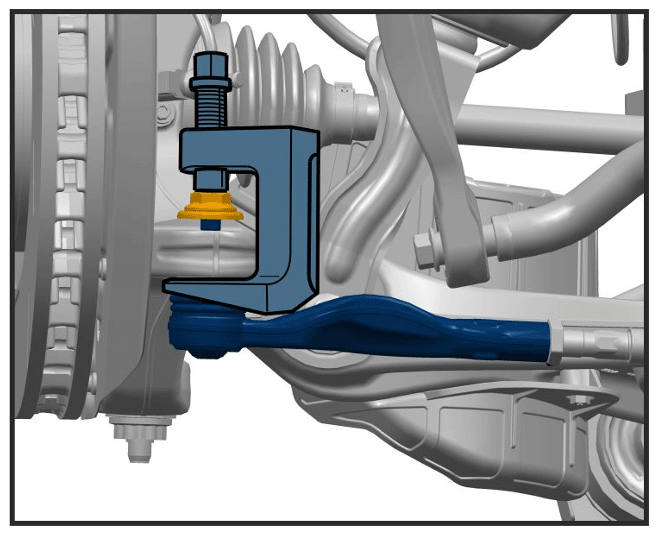

- 6.4 Press off joint pin on the lower trailing arm using > T10187 - Press-out tool

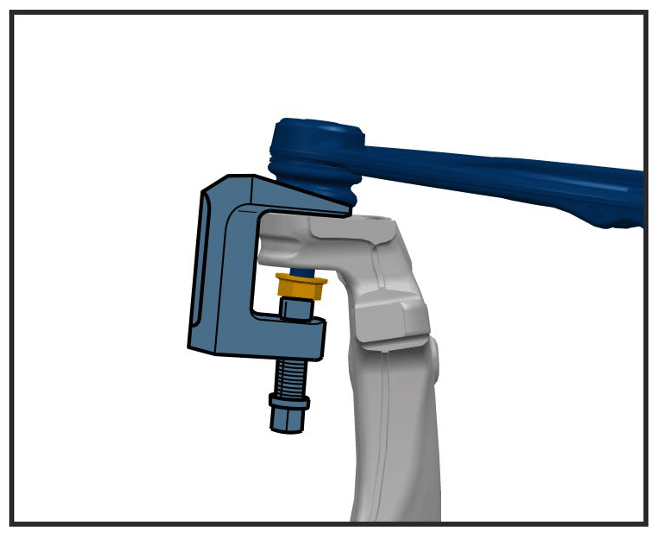

> Pressing off joint pin
Pressing off joint pin
- 6.5 Screw off nut -2- on joint pin for the axle joint.
Mounting for lower trailing arm on wheel bearing housing
- 6.1 Support upper trailing arm on the body using > VW552 - Spring tensioner
to prevent damage to the ball joint on the upper trailing arm due to the weight of the wheel bearing housing.

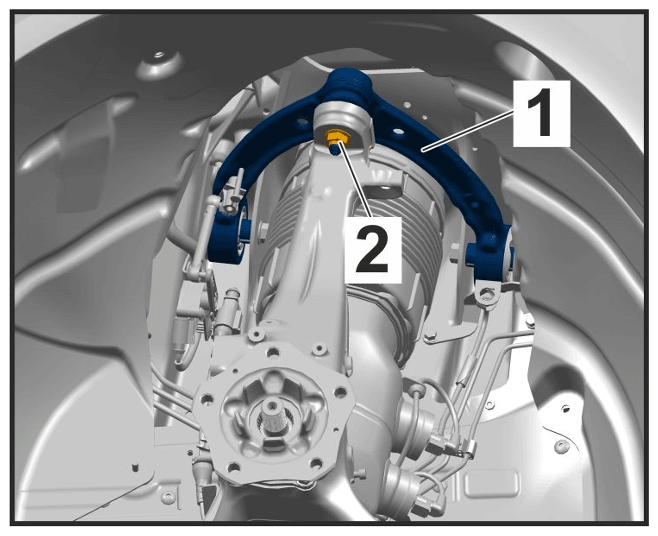

- Remove upper trailing arm -1-
on the wheel bearing housing.
Mounting for upper trailing arm on wheel bearing housing
- 7.1 Unscrew nut -2- on joint pin for axle joint as far as required until it is flush with the upper edge of the joint pin.

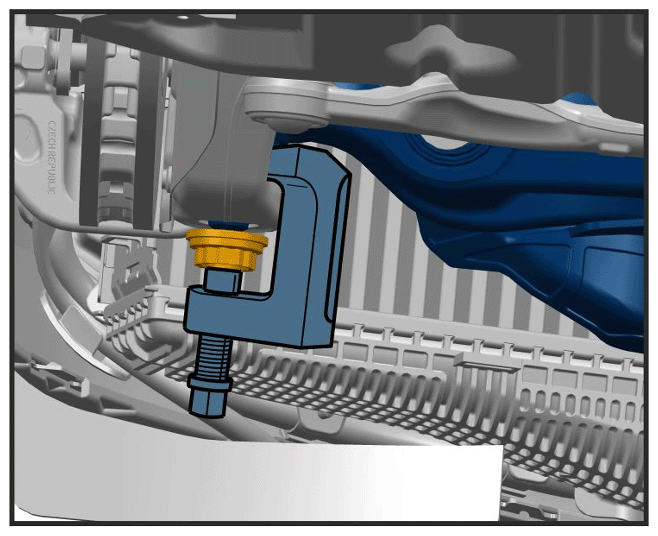

- 7.2 Press off joint pin on the upper trailing arm using > T10187 - Press-out tool
> Pressing off joint pin
Pressing off joint pin
- 7.3 Screw off nut -2- on joint pin for the axle joint.
Mounting for upper trailing arm on wheel bearing housing
- Carefully guide out wheel bearing housing.
- 8.1 For vehicles with all-wheel drive: Pull the drive shaft out of the splines of the wheel hub and set it down carefully on the lower trailing arm.
Installing wheel bearing housing
Information
- Molub Alloy Paste TA can be ordered using the Porsche Electronic Parts Information (PET).
- The thread of the drive shaft must not be greased!
- Grease drive shaft splines with Molub Alloy Paste TA.
- Place wheel bearing housing in installation position.
- 2.1 Guide drive shaft into the wheel hub.
- 2.2 Guide joint pins of the trailing arms into the bearing sleeves of the wheel bearing housing.
- Fit upper trailing arm -1-
on the wheel bearing housing.
Mounting for upper trailing arm on wheel bearing housing
- 3.1 Tighten nut -2- > Tightening torque 85 Nm (63 ftlb.)
- Fit lower trailing arm -1-
on the wheel bearing housing.
Mounting for lower trailing arm on wheel bearing housing
- 4.1 Tighten nut -2- > Tightening torque 130 Nm (96 ftlb.)
- Fit tie-rod ball -1-
on the wheel bearing housing.
Mounting for tie-rod ball on wheel bearing housing
- 5.1 Tighten nut -2- > Tightening torque 85 Nm (63 ftlb.)
- Install cable holder -1-
.
Cable holder mounting
- 6.1 Tighten fastening screws -2- .
Cable holder to wheel bearing housing: > Tightening torque 8 Nm (6 ftlb.)
Sensor for body with cable holder to wheel bearing housing: > Tightening torque 8 Nm (6 ftlb.)
- Fit front level sensor -1-
on the body.
Mounting for front level sensor on body
- 7.1 Tighten nut -2- > Tightening torque 8 Nm (6 ftlb.)
- Install brake cover panel -1- .
Mounting for brake cover panel
- 8.1 Tighten fastening screws -2- > Tightening torque 8 Nm (6 ftlb.)
