Preliminary Work

WARNING: This page is about a different car, the 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

For vehicles with all-wheel drive: Remove the relevant hub cap using > 9229/1 - puller hook and loosen axle nut -1- before raising the vehicle. Operate the brake while doing this (2nd mechanic required).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

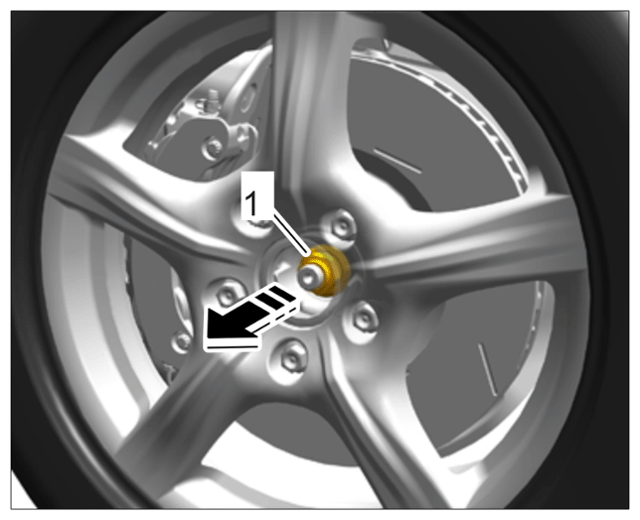

Axle nut (front axle shown)
Remove brake disc.
> 465019 REMOVING AND INSTALLING FRONT BRAKE DISC

> 465119 REMOVING AND INSTALLING FRONT PCCB BRAKE DISC
Remove connecting link for anti-roll bar.
> 407819 REMOVING AND INSTALLING CONNECTING LINK FOR ANTI-ROLL BAR
Remove front speed sensor.
> 451155 REPLACING FRONT SPEED SENSOR
