Technical Values

WARNING: This page is about a different car, the 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
Location Description Type Basic value Tolerance 1 Tolerance 2
Hose clamp (load group 1, on transmission side, large) Tighten using tool V.A.G 1682A Tightening torque 11 Nm (8 ftlb.)

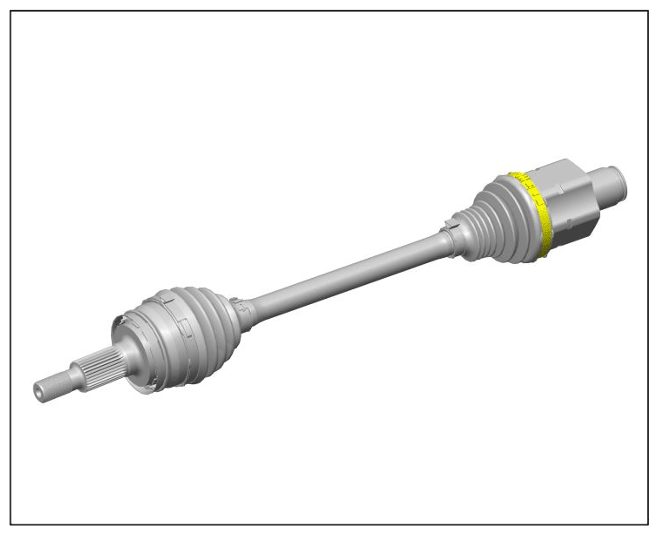

G15856160Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hose clamp (on transmission side, large) - component can differ from illustration due to the wide range of variants
Hose clamp (load group 1, on transmission side, small) Tighten using tool V.A.G 1682A Tightening torque 15.5 Nm (11.5 ftlb.)
G15856161Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hose clamp (on transmission side, small) - component can differ from illustration due to the wide range of variants
Hose clamp (load group 1, on wheel side, large) Tighten using tool V.A.G 1682A Tightening torque 21 Nm (16 ftlb.)
G15856162Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hose clamp (on wheel side, large) - component can differ from illustration due to the wide range of variants
Hose clamp (load group 1, on wheel side, small) Tighten using tool V.A.G 1682A Tightening torque 15.5 Nm (11.5 ftlb.)
G15856163Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hose clamp (on wheel side, small) - component can differ from illustration due to the wide range of variants
Hose clamp (load group 2, on transmission side, large) Tighten using tool V.A.G 1682A Tightening torque 11 Nm (8 ftlb.)
G15856164Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hose clamp (on transmission side, large) - component can differ from illustration due to the wide range of variants
Hose clamp (load group 2, on transmission side, small) Tighten using tool V.A.G 1682A Tightening torque 15.5 Nm (11.5 ftlb.)
G15856165Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hose clamp (on transmission side, small) - component can differ from illustration due to the wide range of variants
Hose clamp (load group 2, on wheel side, large) Tighten using tool V.A.G 1682A Tightening torque 21 Nm (16 ftlb.)

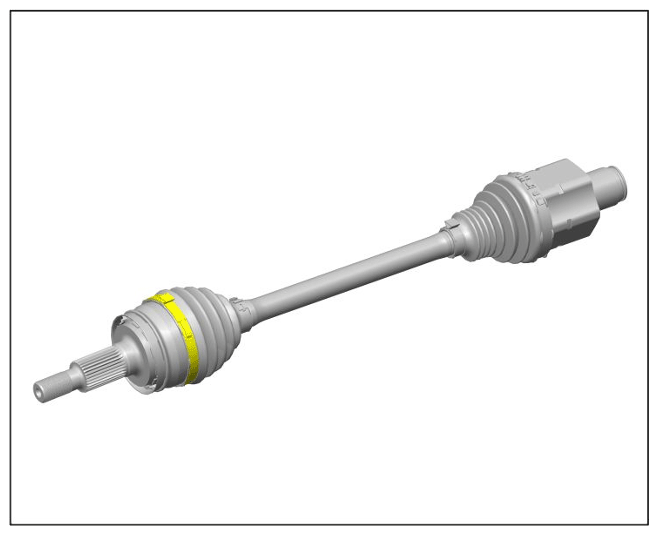

G15856166Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hose clamp (on wheel side, large) - component can differ from illustration due to the wide range of variants
Hose clamp (load group 2, on wheel side, small) Tighten using tool V.A.G 1682A Tightening torque 10 Nm (7.5 ftlb.)
G15856167Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hose clamp (on wheel side, small) - component can differ from illustration due to the wide range of variants
Quantity of grease on joint at the wheel side Load group 1 (I-no. 0J2/0J3) Weight 90 g + 10 g
Quantity of grease on joint at the transmission side Load group 1 (I-no. 0J2/0J3) Weight 99 g + 10 g
Quantity of grease on joint at the wheel side Load group 2 (I-no. 0J5/0J8) Weight 127 g + 10 g
Quantity of grease on joint at the transmission side Load group 2 (I-no. 0J5/0J8) Weight 119 g + 10 g
