Replacing Lower Trailing Arm

WARNING: This page is about a different car, the 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Information

Deformation of the trailing arm can be checked using a printable template.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

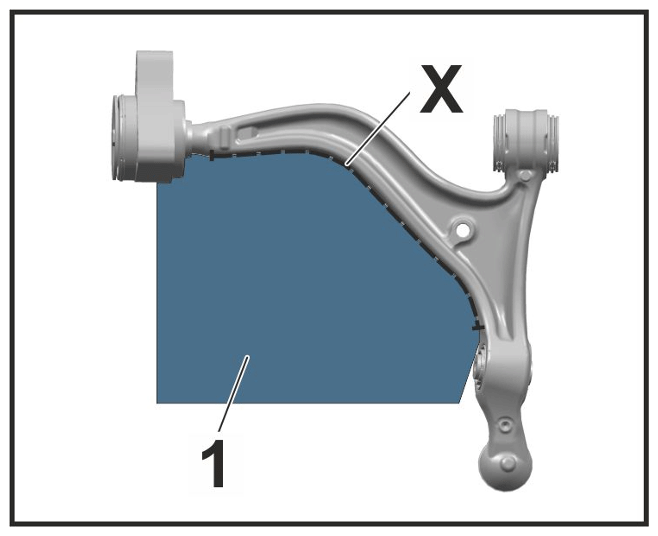

Template for checking deformation

The template can be found in the PIWIS information system under Service Information - 4017 Lower trailing arm template.
Print the template, check printout based on the control dimension, copy the template to a piece of cardboard and cut it out in accordance with specifications.
If the contour of the trailing arm in the measuring area -X- deviates from the contour of the template -1- , the trailing arm must be replaced.

Convert control arm spoiler -1- to suit the new trailing arm.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

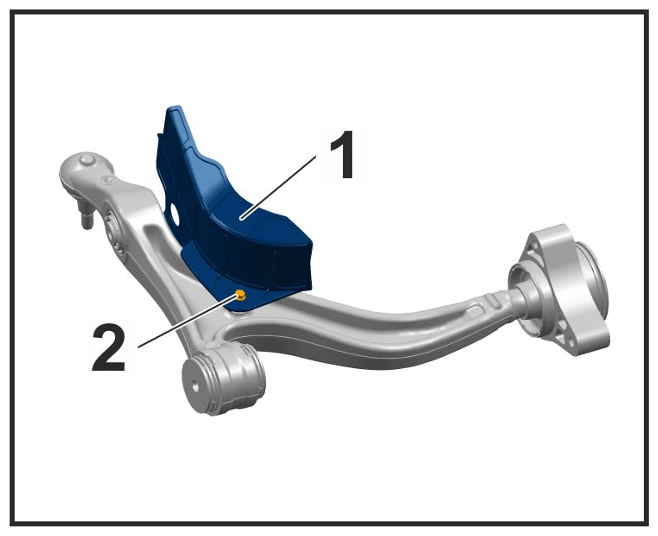

Control arm spoiler mounting

1.1 Remove threaded joint -2- and install it for the new trailing arm > Tightening torque 8 Nm (6 ftlb.)
