Technical Values

WARNING: This page is about a different car, the 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value
Upper trailing arm to body	Item 1: Hexagon-head bolt, M10 x 75 and hexagon nut/always replace bolts and nuts following removal!	Initial tightening	50 Nm (37 ftlb.)

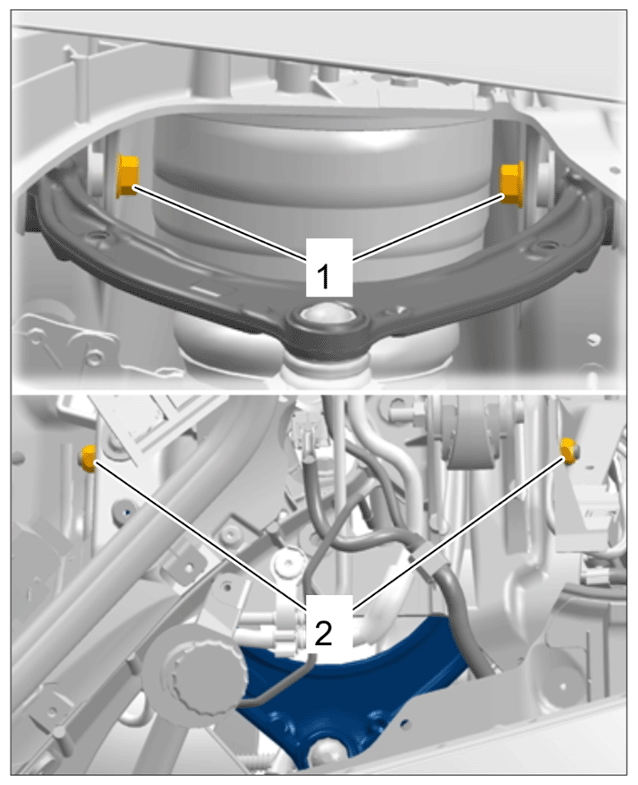

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for upper trailing arm
Upper trailing arm to body	Item 2: Hexagon-head bolt, M10 x 75 and hexagon nut/always replace bolts and nuts following removal!	Final tightening	+ 120°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for upper trailing arm
