Removing Upper Trailing Arm

WARNING: This page is about a different car, the 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Information

Due to a change in the attachment concept for HBA angle sensor and trailing arm at the top, the following must be noted when replacing the trailing arm:

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

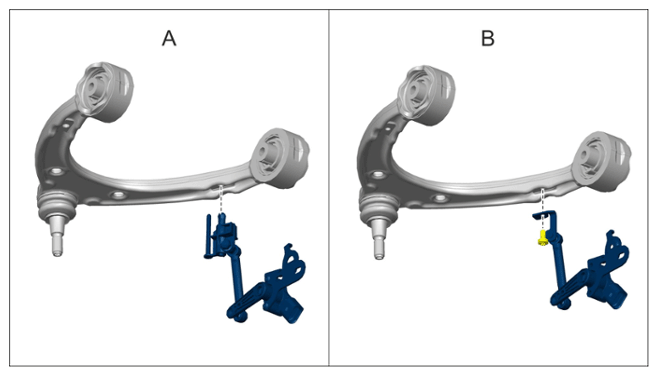

Old/new attachment concept

left (A)	HBA angle sensor clipped to the top of the trailing arm (old)
right (B)	HBA angle sensor screwed to the top of the trailing arm (new)

HBA angle sensor with clip connection -A- for vehicles with production date up to 26.03.2019.
HBA angle sensor with threaded connection -B- for vehicles with production date from 27.03.2019.

Information

If the upper trailing arm is to be used again, mark its position with respect to the body -arrows- using a felt-tip pen for example (assembly aid).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

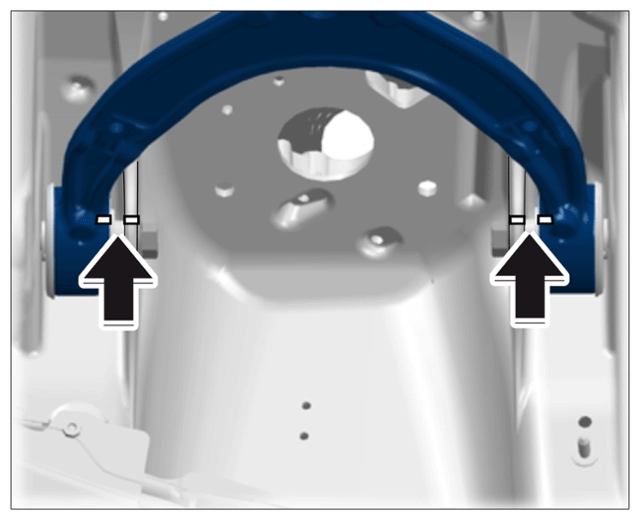

Marking upper trailing arm

Production seams on the trailing arm can serve as the marking (useful when replacing the trailing arm).
Apply a different marking on the body.
Threaded joints can no longer be adjusted once the work is done as the threaded joints are no longer accessible.

Loosen fastening screws -1- and remove upper trailing arm. Fastening nuts -2- can be accessed from the plenum panel.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

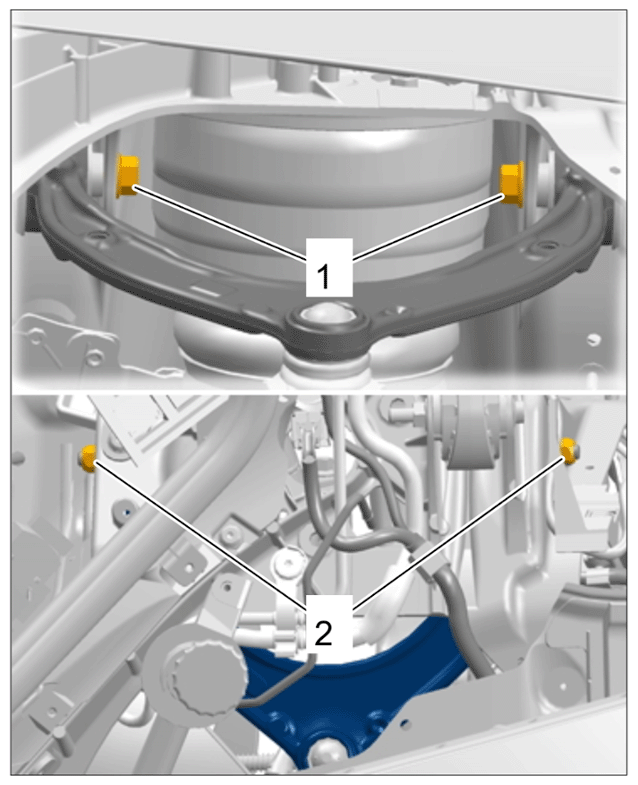

Mounting for upper trailing arm
If the trailing arm is replaced at the top and a clip-mounted HBA angle sensor was installed: Replace HBA angle sensor.
> WM, 947819 REMOVING AND INSTALLING FRONT ANGLE SENSOR FOR HEADLIGHT BEAM ADJUSTMENT (HBA)
