Installing Upper Trailing Arm
WARNING: This page is about a different car, the 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
- Installation is performed in reverse order. Fit according to the previously applied markings -arrows-
.
Trailing arm to body: > Initial tightening 50 Nm (37 ftlb.)
> Final tightening + 120°
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

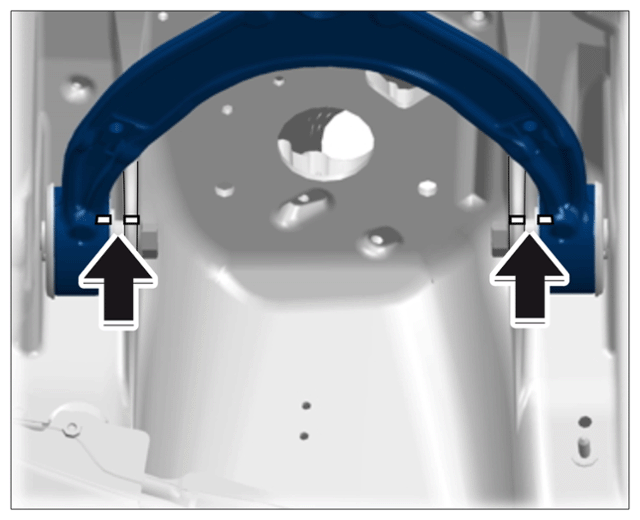

Marking upper trailing arm
