Installing Front-Axle Support (Rear Section)

WARNING: This page is about a different car, the 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Information

Make sure that the electric lines for steering and PDCC -1- are routed through the openings > Correct position of the lines . The electric lines can be pressed together slightly by screwing the front-axle support (rear section).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Correct position of the lines

Tighten screws -2 and 3- .

-2- : > Tightening torque 30 Nm (22 ftlb.)

-3- : > Tightening torque 30 Nm (22 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

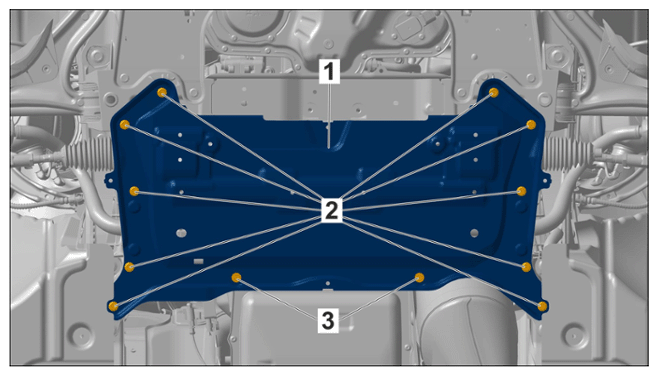

Front-axle support (rear section)
