Remove Front-Axle Support (Front Section)

WARNING: This page is about a different car, the 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Remove add-on parts from front-axle support.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

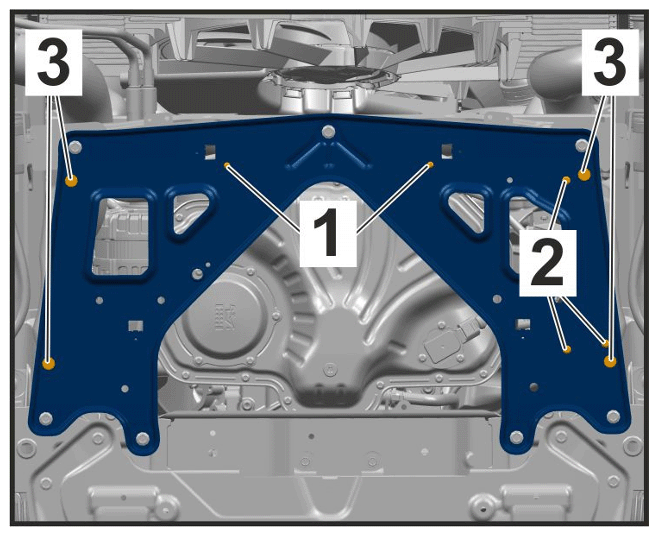

Mounting for add-on parts
1. 1.1 Unscrew screws -1- for oil lines.
2. 1.2 Unscrew screws -2- for oil line/oil cooler holders.
3. 1.3 If installed: Remove expansion rivets -3- for heat insulation (only at the right on petrol engines).
Unscrew screws -2 and 3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

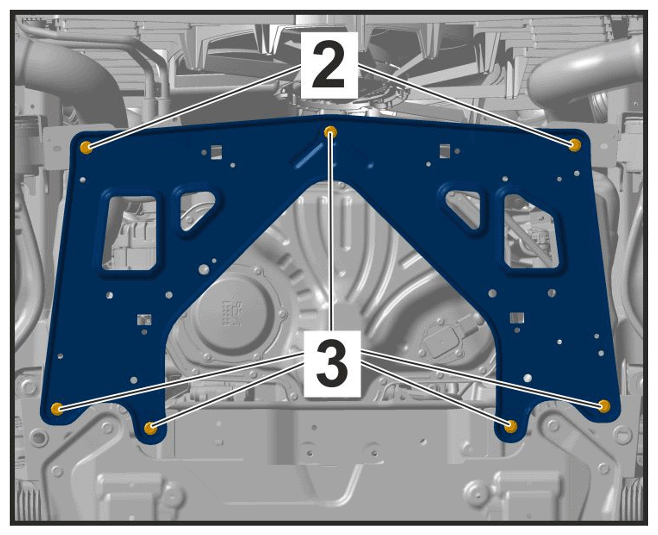

Mounting for front-axle support (front section)
