Installing Front-Axle Support (Front Sections)

WARNING: This page is about a different car, the 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Tighten screws -2 and 3- .
-2- : > Tightening torque 55 Nm (41 ftlb.)

-3- : > Tightening torque 30 Nm (22 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for front-axle support (front section)
Fit add-on parts on front-axle support.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

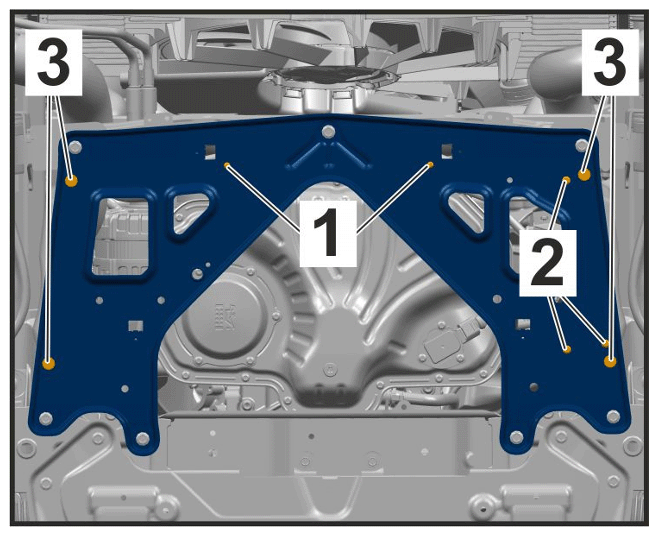

Mounting for add-on parts

2.1 Tighten screws -1- for oil lines > Tightening torque 6 Nm (4.5 ftlb.)
2.2 Tighten screws -2- for oil line/oil cooler holders > Tightening torque 8 Nm (6 ftlb.)
2.3 If installed: Fit expansion rivets -3- for heat insulation. (Only at the right on petrol engines).
