Tightening Sequence For High-Pressure Fuel Lines
WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
- Fit union nut -1-
by hand.
- 1.1 Coat thread on union nuts with Microgleit DF 977S. Observe drying time of at least 5 minutes before fitting.
- Tighten screws -2- with > tightening torque 8 Nm (5.9 ftlb.) > final tightening torque 45° .
- Screw with -3- > Tightening torque 9 Nm (6.6 ftlb.)
- Union nut -1- with > tightening torque of 10 Nm (7.4 ftlb.) > Torque angle 60°

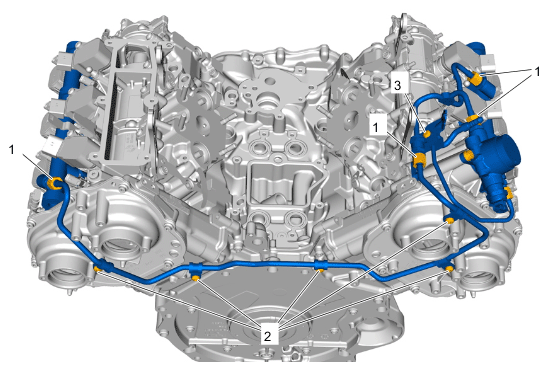

Tightening sequence for high-pressure fuel lines V6 biturbo
