Installing Generator
WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
Information

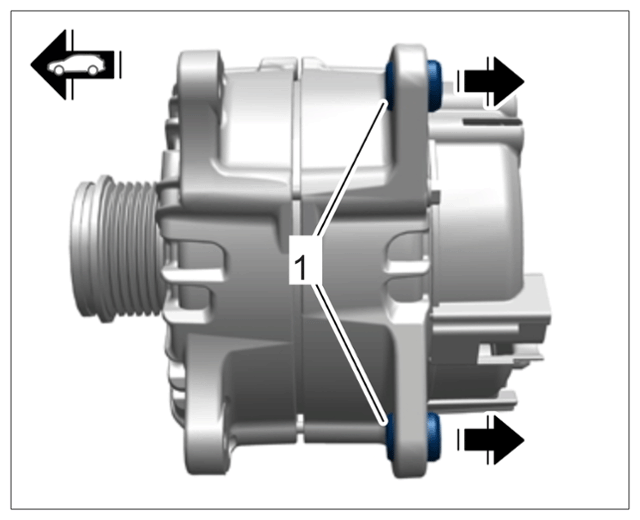

Generator bushes
- Before installing the new generator, push the threaded bushes -1- out by approx. 4 mm.
- Installation is performed in reverse order. Pay particular attention to the following:
Screw in and tighten screws securing generator to crankcase > Tightening torque 22 Nm (16 ftlb.)
Screw in and tighten nut securing B+ line to generator > Tightening torque 20 Nm (15 ftlb.)
