Removing Battery

WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Information

Switch off all loads and remove the ignition key.

Do not disconnect the battery while the engine is running.
Disconnect and re-connect battery with extreme caution.

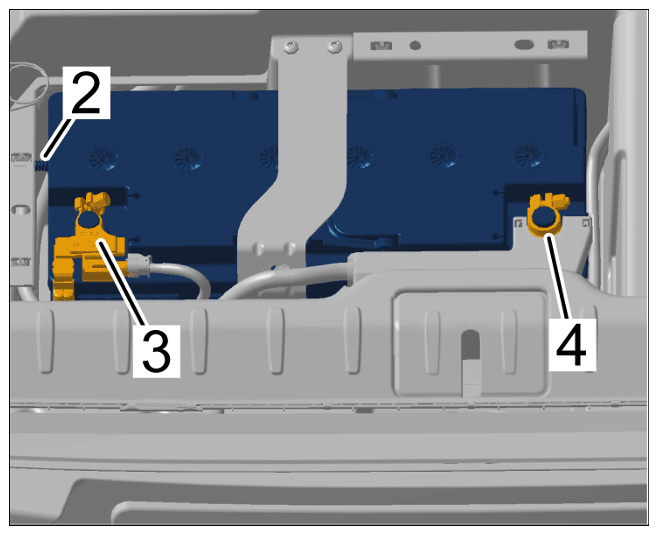

Disconnect negative cable -3- and positive cable -4- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disconnect battery
1. 1.1 Disconnect vent hose -2- from the battery.
2. 1.2 First disconnect the negative cable -3- , then the positive cable -4- .

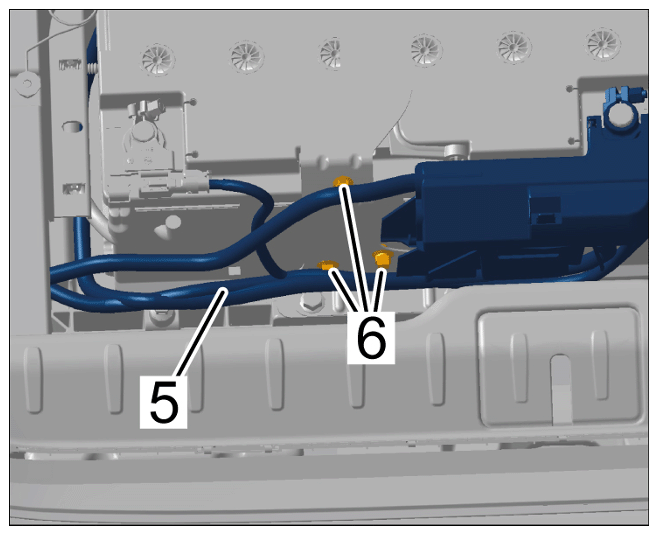

Unclip positive cable -5- from the line bracket -6- and set it aside.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping positive cable
Lift the battery up and out.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

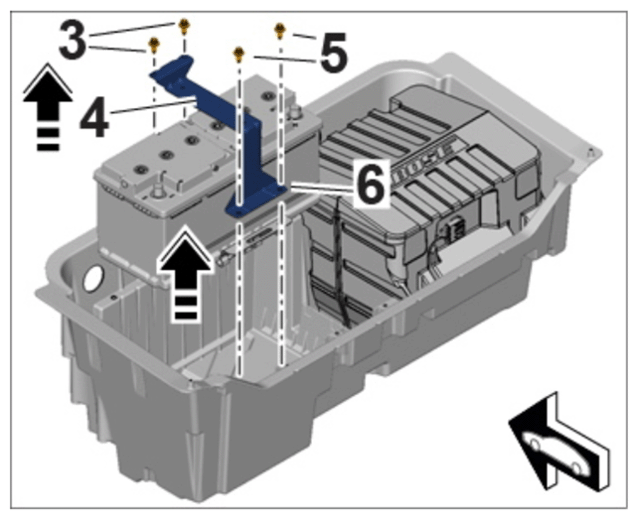

Removing rail and retaining bar
1. 3.1 Unscrew screws -3- from the retaining bar -4- and screws -5- on the rail -6- .
2. 3.2 Remove rail -6- and retaining bar -4- .
