Removing Bypass Flap Control Box
WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
- Remove control box.
- 1.1 Pull off vacuum hose -1-
.
- 1.2 Pull off retaining spring -3-
and pull control rod off the actuating lever -4-
on the turbocharger.
- 1.3 Unscrew nuts -2 and 5-
and remove control box.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

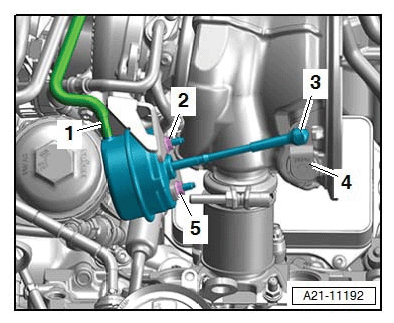

Bypass flap control box
