Installing Bypass Flap Control Box
WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
- Install pressure unit.

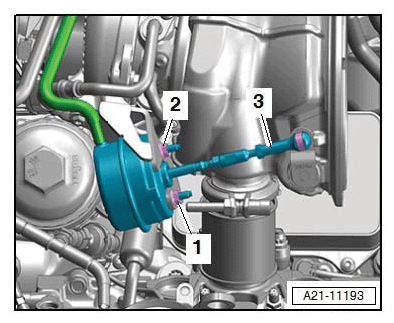

- 1.1 Position pressure unit with adjustable control rod on the turbocharger.
- 1.2 Fit and tighten nuts -1 and 2-
.
> Tightening torque 8 Nm (5.9 ftlb.)
- 1.3 Press ball socket -3-
onto the ball pin of the actuating lever
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Adjustable control box
