Removing Pressure Pipe

WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Hot components
  • Risk of burns

    → Let hot components cool down.

    → Wear personal protective gear.

  1. Remove pressure pipe -1-  .
    1. 1.1 Loosen screw-type clamp on pressure hose -2-  .
    2. 1.2 Pull off pressure hose -3-  .
    3. 1.3 Unscrew screws -4-  .
    4. 1.4 Remove pressure pipe -1-  .

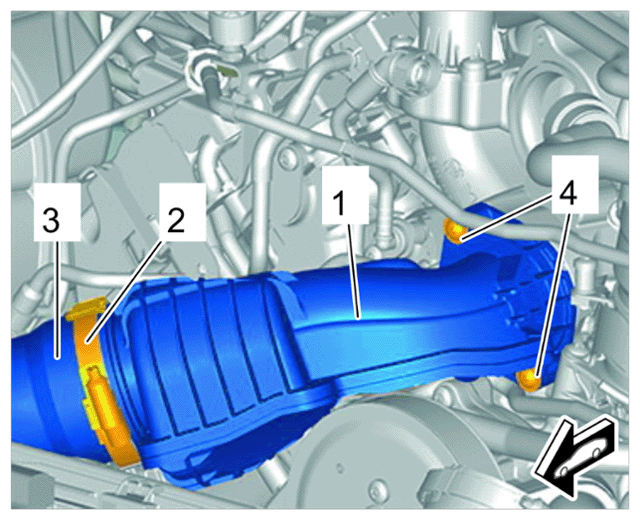

G15876800Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pressure pipe
