Installing Recirculating Air Valve (V6 MONOTURBO)

WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Install recirculating air valve -1- .
1. 1.1 Insert recirculating air valve -1- .
2. 1.2 Fit new screws for recirculating air valve -3- .
3. 1.3 Fit screws for recirculating air valve -3- and tighten to > Tightening torque 9 Nm (6.6 ftlb.) . To do this, press hoses -4- aside.
4. 1.4 Connect electric plug connection -2- until the lock engages securely.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

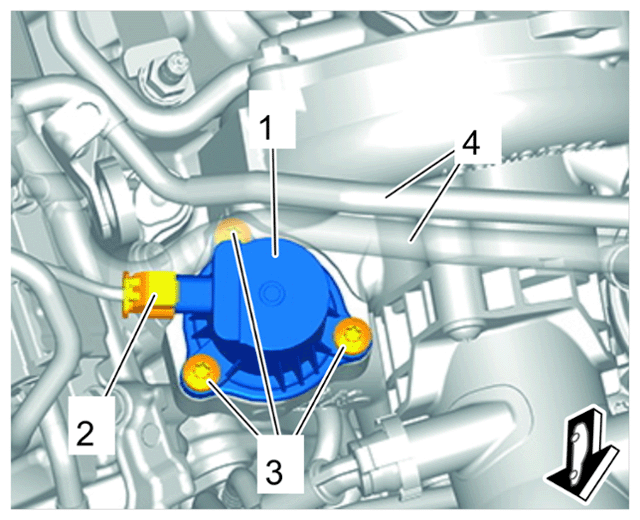

Recirculating air valve
