Installing Turbocharger

WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Information

> Removing and installing recirculating air valve

If you are replacing the turbocharger, the existing recirculating air valve must be used.

Install turbocharger.
1. 1.1 Replace oil return line -1- and holder.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

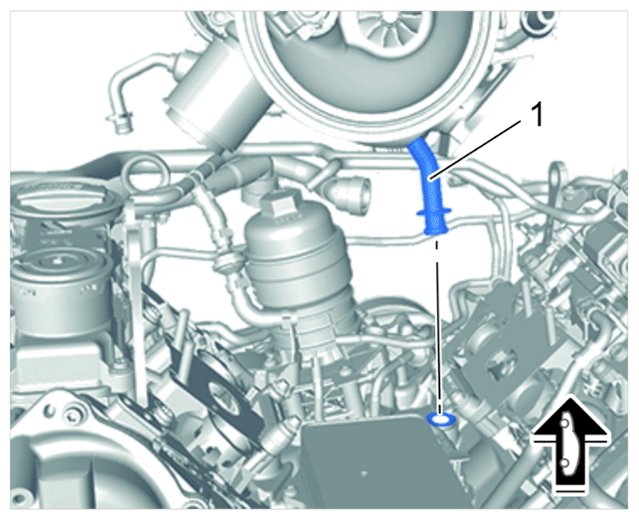

Exploded view of oil return on turbocharger
Fit turbocharger.
1. 2.1 Fit new gaskets on the exhaust flange.
2. 2.2 Position turbocharger and exhaust pipe -2- and make sure that the oil return line is fitted correctly.
3. 2.3 Replace V-band clamp on exhaust pipe -4- , fit it and tighten to > Tightening torque 20 Nm (14.8 ftlb.) .
4. 2.4 Replace fit-studs -1- for exhaust pipes, fit nuts and tighten to > Tightening torque 15 Nm (11.1 ftlb.) .
5. 2.5 Screw on fastening nuts -1- for exhaust pipes and tighten to > Tightening torque 25 Nm (18.4 ftlb.) .

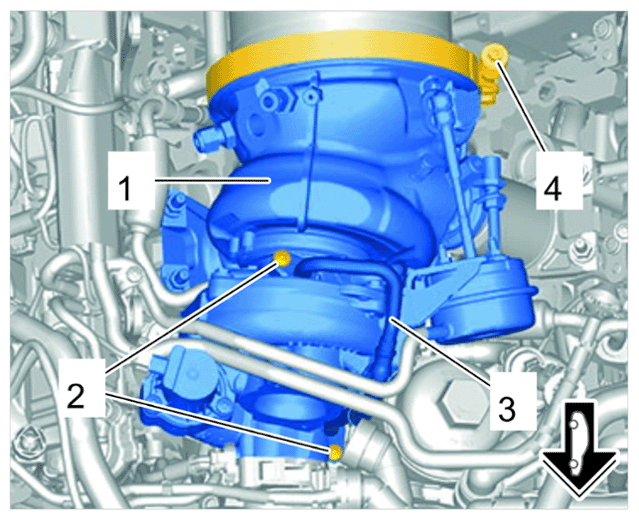

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

View of exhaust pipes
Fit catalytic converter.
1. 3.1 Position catalytic converter, replace seal, fit V-band clamp -4- and tighten to > Tightening torque 7 Nm (5 ftlb.) +/- 1 Nm (0.5 ftlb.) .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Turbocharger overview II
Fit coolant pipes.
1. 4.1 Replace O-rings on the coolant lines.
2. 4.2 Insert coolant pipes.
3. 4.3 Fit fastening screws -1- and tighten to > Tightening torque 9 Nm (6.6 ftlb.) .

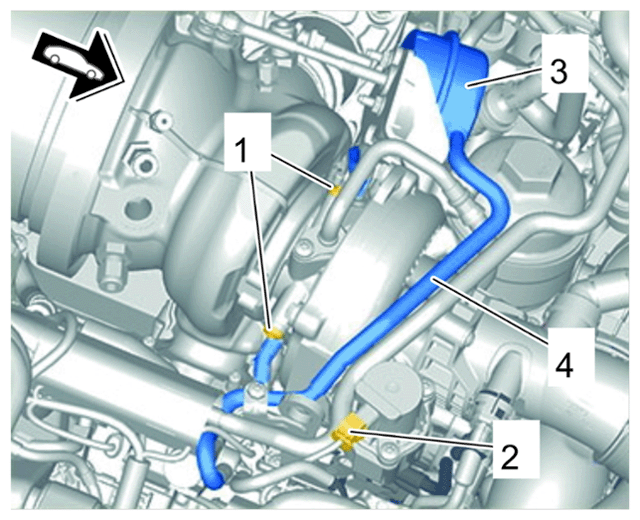

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Turbocharger overview I
Fit oil supply line.
1. 5.1 Replace O-ring on oil supply line.
2. 5.2 Insert oil supply line -3- .
3. 5.3 Fit fastening screw -2- for oil supply line and tighten to > Tightening torque 9 Nm (6.6 ftlb.) .

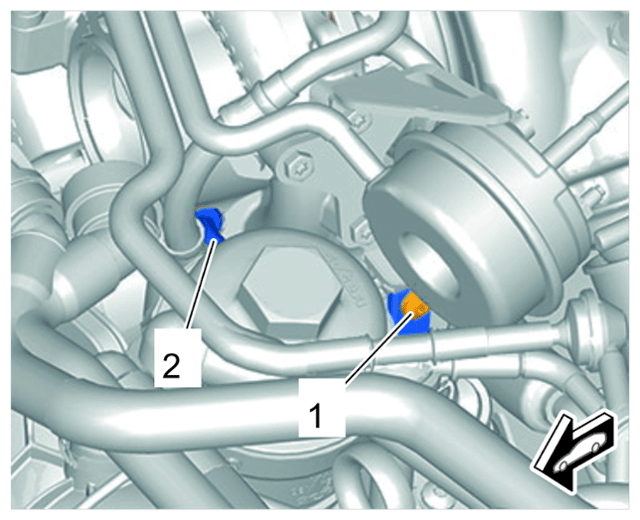

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Turbocharger overview II
Fit active carbon filter line.
1. 6.1 Replace O-ring.
2. 6.2 Insert active carbon filter line -2- .
3. 6.3 Fit fastening screw -1- and tighten to > Tightening torque 9 Nm (6.6 ftlb.) .

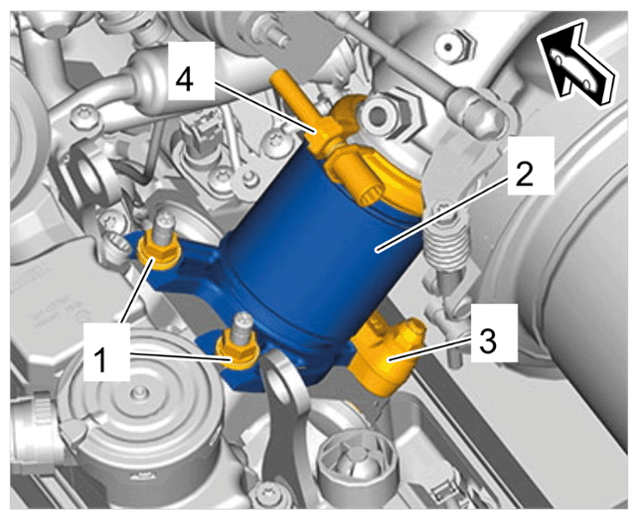

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Turbocharger at the side
Connect connections.
1. 7.1 Connect and lock electric plug connection -2- for recirculating air valve.
2. 7.2 Connect vacuum hose -4- to vacuum capsule -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Turbocharger overview I
