Removing Intake Manifold

WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

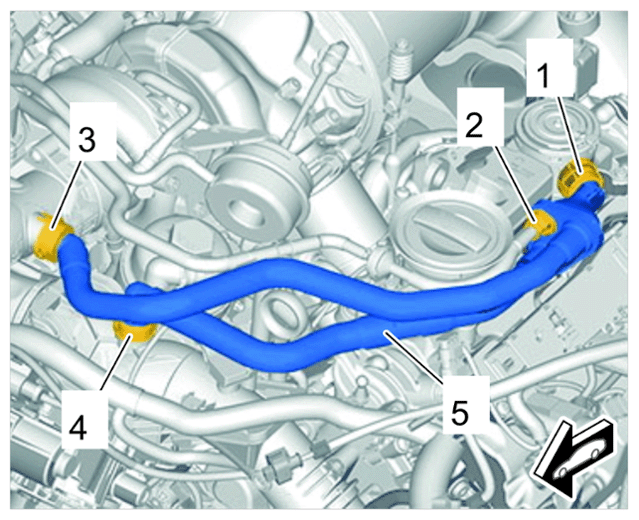

Disconnect positive crankcase ventilation hose -5- .
1. 1.1 Press release buttons on both sides and loosen adapters on oil mist separator -1- and positive crankcase ventilation system -2-
2. 1.2 Press release buttons on both sides and loosen pressure pipe adapter -4- .
  Information

  The positive crankcase ventilation hose adapter is permanently connected to the intake manifold.
3. 1.3 Do not disconnect intake manifold adapter -3- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Full load ventilation on turbocharger
Remove intake manifold -1- .
1. 2.1 Release and pull off vacuum line at the intake pipe -2- .
2. 2.2 Unscrew screws -3- .
3. 2.3 Remove intake pipe -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Intake manifold
