Removing Front Air Guide At The Side (Behind Charge-Air Cooler)
WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
- Unclip line bracket -2-
and set electric wire harness -3-
aside.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

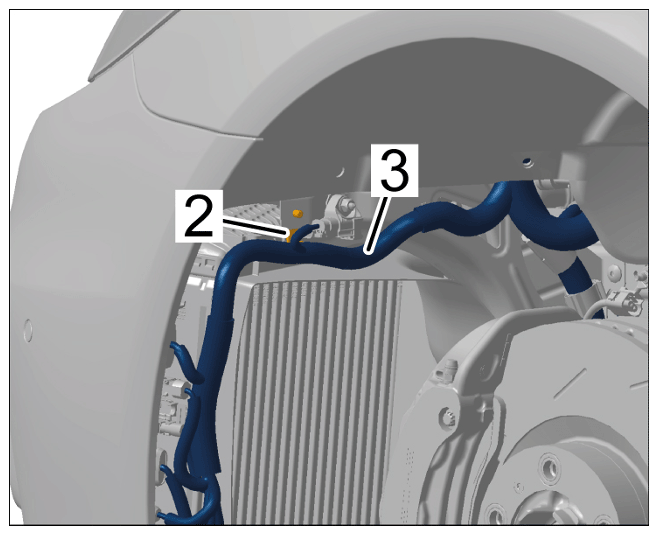

Loosening wire harness
- Release locking lugs -4-
, swivel front air guide at the side -1-
to the rear and disengage it at the bottom.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

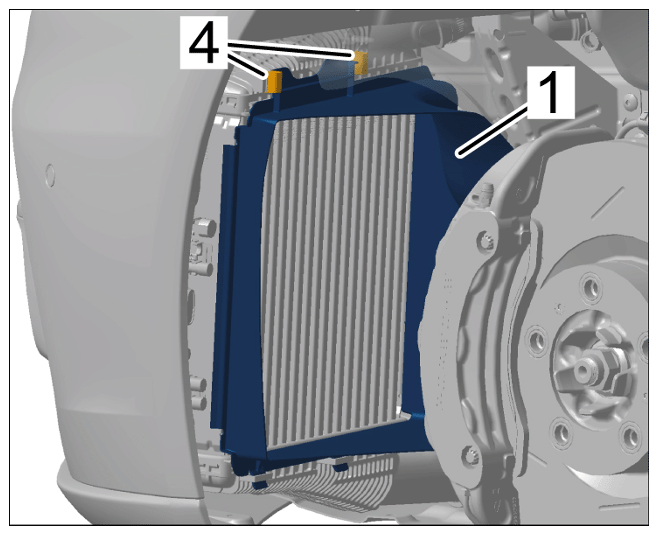

Removing front air guide at the side
