Technical Values

WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2

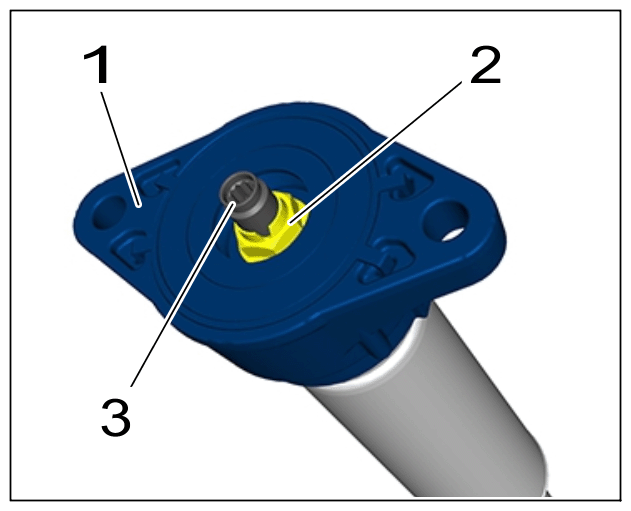

Supporting mount to piston rod	Item 2: Hexagon nut M14 x 1.5	Tightening torque	53 Nm (39.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nut on piston rod
