Disassembling Shock Absorbers

WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

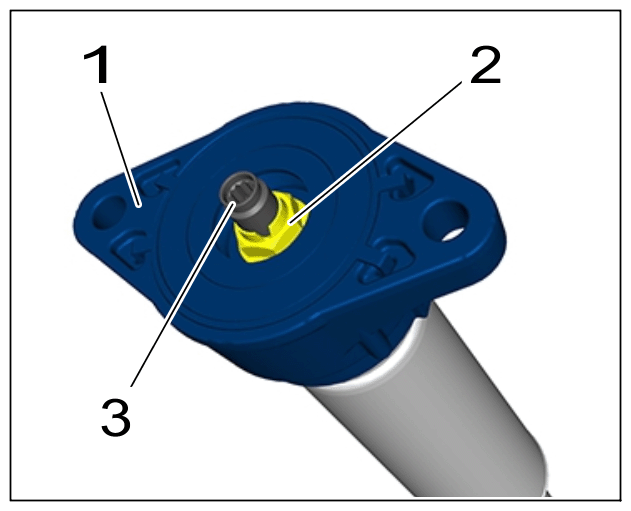

Remove the -1- shock absorber mounting.
1. 1.1 Unscrew -2- nut using > T10001 - the shock absorber set while at the same time holding back the multiple-tooth screw of the piston rod -3- .
2. 1.2 Remove shock absorber mount -1- from piston rod -3- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Shock absorber mounting

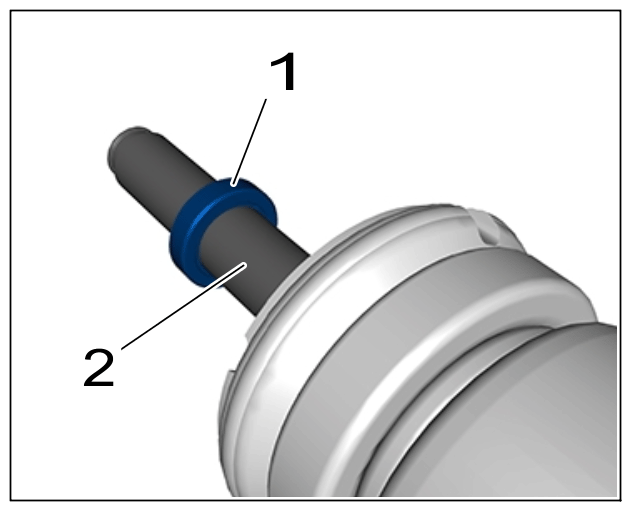

Pull supporting washer -1- from piston rod -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Support washer

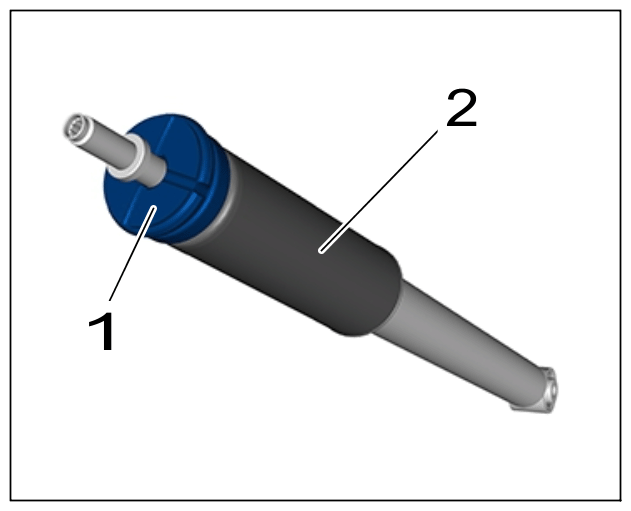

Remove stop buffer -1- and protective sleeve -2- .
1. 3.1 Pull stop buffer -1- with protective sleeve -2- from the piston rod.
2. 3.2 Pull stop buffer -1- from protective sleeve -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Stop buffer and protective sleeve
