Assembling Shock Absorber

WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

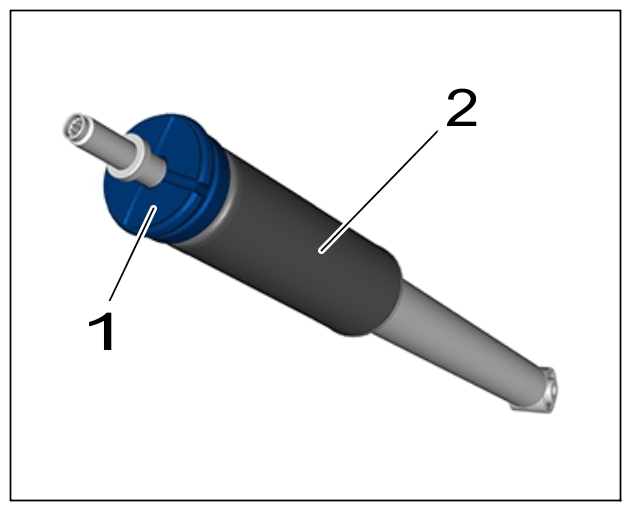

Fit stop buffer -1- and protective sleeve -2- .
1. 1.1 Fit protective sleeve -2- on stop buffer -1- .
2. 1.2 Slide stop -1- buffer with protective sleeve -2- onto piston rod.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Stop buffer and protective sleeve

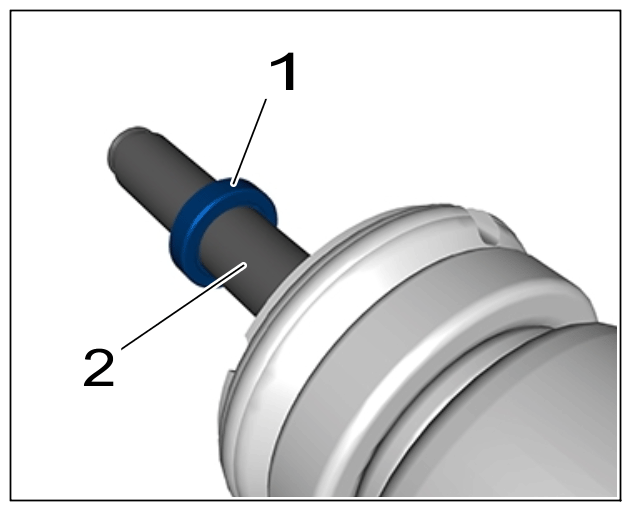

Slide supporting washer -1- onto piston rod -2- and check that the cut-out in the supporting washer is positioned correctly in relation to the piston rod.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Support washer

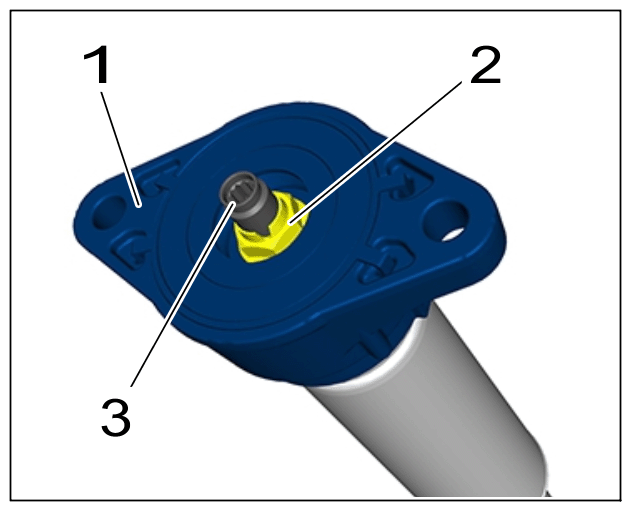

Fit shock absorber mounting -1- .

3.1 Slide the shock absorber mounting -1- onto the piston rod -3- as far as the support washer stop.

3.2 Screw on the nut -2- and tighten using > T10001 - shock absorber set while at the same time holding back the multiple-tooth screw of the piston rod -3- .

> Tightening torque 53 Nm (39.1 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Shock absorber mounting
