Component Overview

WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

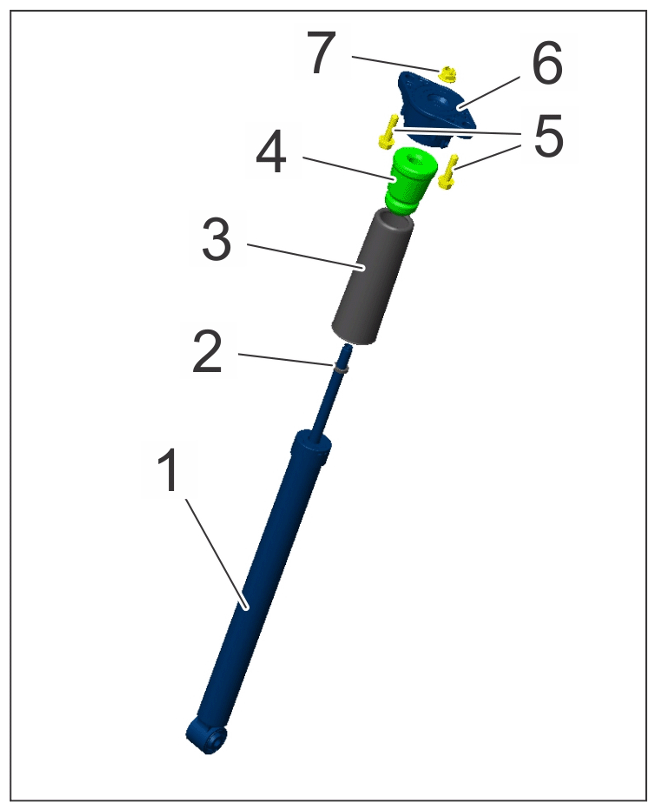

Fig 1: Rear Shock Absorber Components Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Individual parts of rear shock absorber

1	Spring damper/shock absorber
2	Support washer
3	Boot
4	Rubber stop
5	Screws, M10 x 42
6	Shock absorber mounting
7	Nut, M14
