Technical Values

WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

*Location	*Description	*Type	*Basic value
Trailing arm to rear axle housing, front	Hexagon-head bolt, M12 x 1.5 x 120 and hexagon nut/always replace bolts and nuts following removal!	Initial tightening	70 Nm (52 ftlb.)
Trailing arm to rear axle housing, front	Hexagon-head bolt, M12 x 1.5 x 120 and hexagon nut/always replace bolts and nuts following removal!	Final tightening torque angle	+ 180°
Trailing arm to rear axle housing, rear (camber eccentric adjuster)	Eccentric screw, M14 x 1.5 with eccentric washer and hexagon nut	Tightening torque	160 Nm (118 ftlb.)
Shock absorber/spring damper to body	Item 2: Hexagon-head bolt M10 x 42	Tightening torque	50 Nm (36.9 ftlb.)

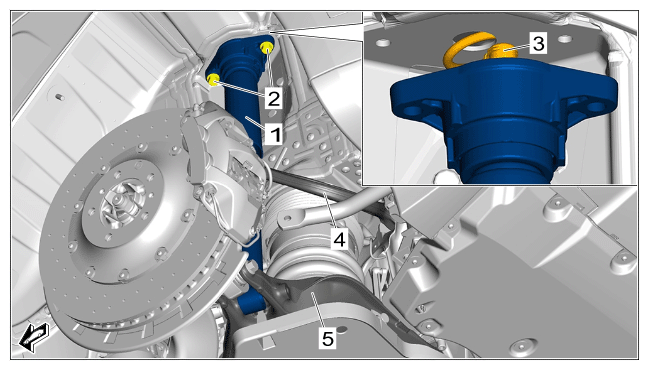

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear shock absorber/spring damper
Rear upper control arm to wheel bearing housing	Hexagon-head bolt, M12 x 1.5 x 75 and hexagon nut/always replace bolts and nuts following removal!	Initial tightening	70 Nm (52 ftlb.)
Rear upper control arm to wheel bearing housing	Hexagon-head bolt, M12 x 1.5 x 75 and hexagon nut/always replace bolts and nuts following removal!	Final tightening torque angle	+ 90°
Screw securing holder for rear angle sensor for headlight beam adjustment to trailing arm	Item 1/always replace screws following removal!	Initial tightening	3 Nm (2 ftlb.)
Screw securing holder for rear angle sensor for headlight beam adjustment to trailing arm	Item 1/always replace screws following removal!	Final tightening	+ 45°

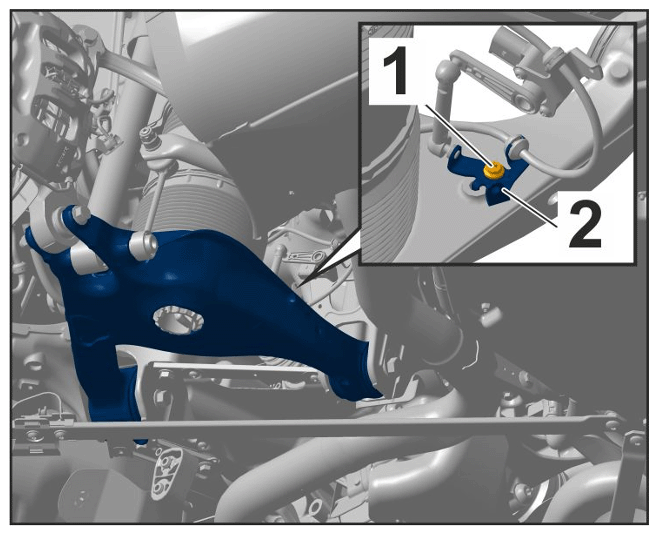

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing holder for rear angle sensor for headlight beam adjustment to trailing arm
