Removing Connecting Link For Anti-Roll Bar
WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
- Remove control arm spoiler -2-
.

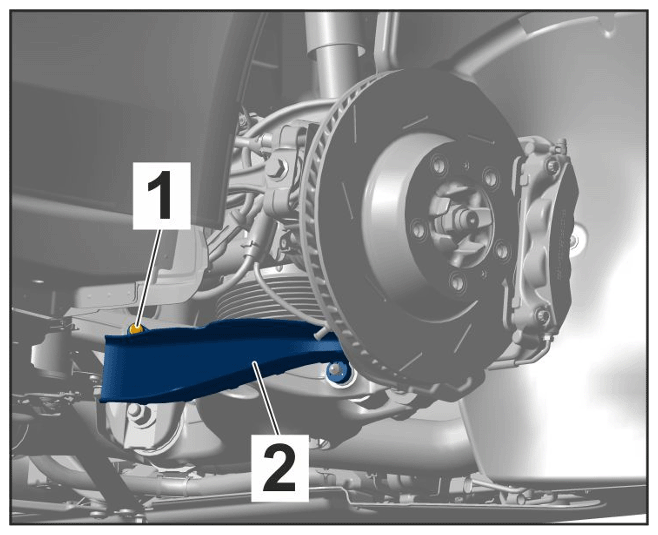

Control arm spoiler on trailing arm
- 1.1 Unscrew fastening screw -1- .
- 1.2 Pull control arm spoiler lug off the shock absorber threaded joint.
- Remove connecting link -1-
on both sides of the vehicle from the lower trailing arm.

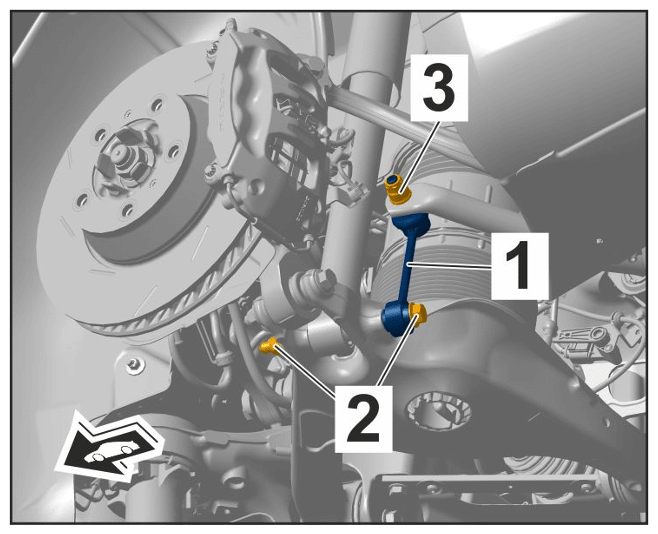

Mounting for connecting link
WARNING: Wheel bearing housing raised incorrectly- Risk of crushing
- Risk of damage to components
→ Wear personal protective gear.
→ Do not raise the wheel suspension higher than the normal vehicle position (vehicle resting on wheels).
- 2.1 Support the wheel bearing housing using > VAS 6931 - Transmission and Engine Jack .
- 2.2 Remove threaded joint -2- for the connecting link.
- Remove connecting link -1-
at the anti-roll bar.
Mounting for connecting link
- 3.1 Unscrew fastening nut -3-
and counter at the ball pin of the connecting link.WARNING: Preloaded or pressurised components
- Risk of squashing or bruising
→ Do not reach into the danger area.
→ Relieve the tension on components before starting work.
→ Secure components to prevent them from loosening suddenly.
Information
Only for coil springs:
Coil spring is pressurised!
- > VAS 6931 - Transmission and Engine Jack must not be lowered fully.
- > VAS 6931 - Transmission and Engine Jack must not be removed until the connecting link has been installed.
- Risk of squashing or bruising
- 3.2 > VAS 6931 - Transmission and Engine Jack must be lowered as far as required until the anti-roll bar can be turned downwards.
- 3.3 Turn the anti-roll bar down as far as required so that the ball pin of the connecting link can be guided out of the bore on the antiroll bar.
- 3.1 Unscrew fastening nut -3-
and counter at the ball pin of the connecting link.
