Technical Values

WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value
Anti-roll bar mount to rear axle housing	Item 2: Hexagon-head bolt, M8 x 35/always replace bolts following removal!	Initial tightening	20 Nm (15 ftlb.)

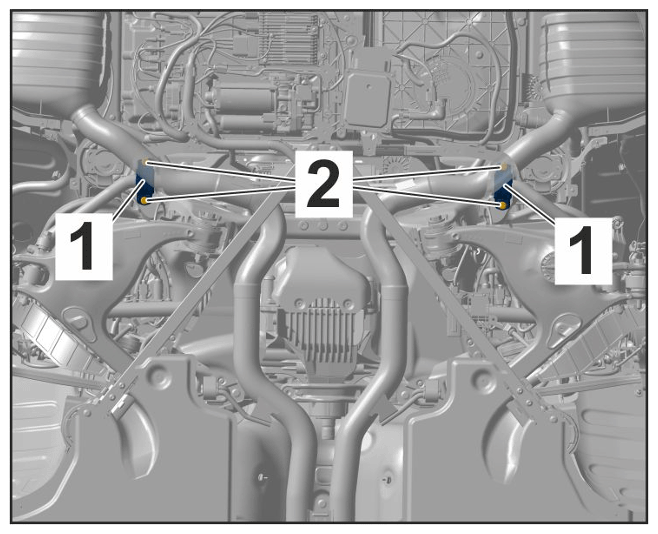

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for anti-roll bar mount
Anti-roll bar mount to rear axle housing	Item 2: Hexagon-head bolt, M8 x 35/always replace bolts following removal!	Final tightening torque angle	+ 90°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for anti-roll bar mount
Bearing protective plate to rear axle housing	Item 2: Hexagon-head bolt M5	Tightening torque	7 Nm (5.2 ftlb.)

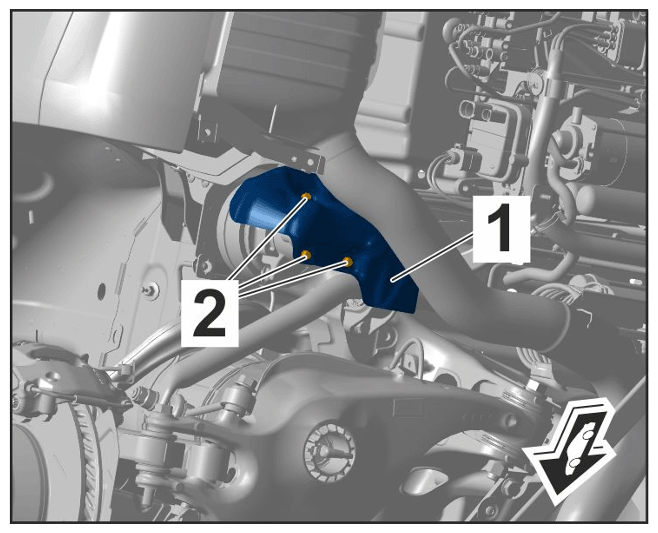

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Protective plate mount
