Removing Anti-Roll Bar

WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove protective plate on the rear axle housing bearing -1-  on both sides of the vehicle.

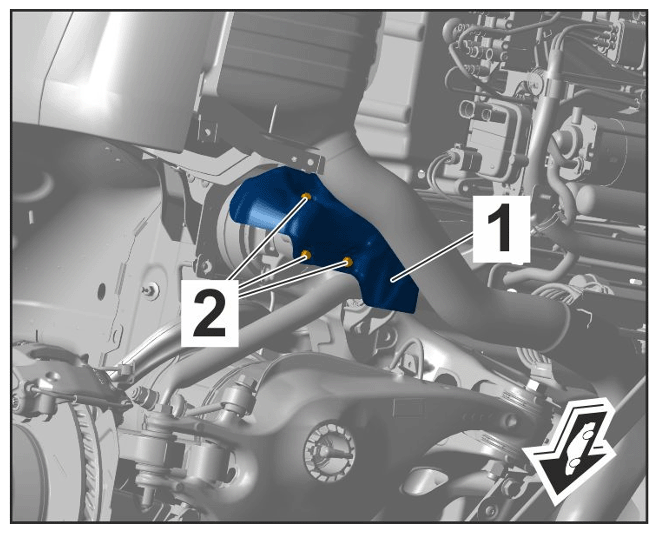

    G15856591Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for protective plate

    1. 1.1 Unscrew fastening screws -2-  .
  2. Remove anti-roll-bar mount -1-  .

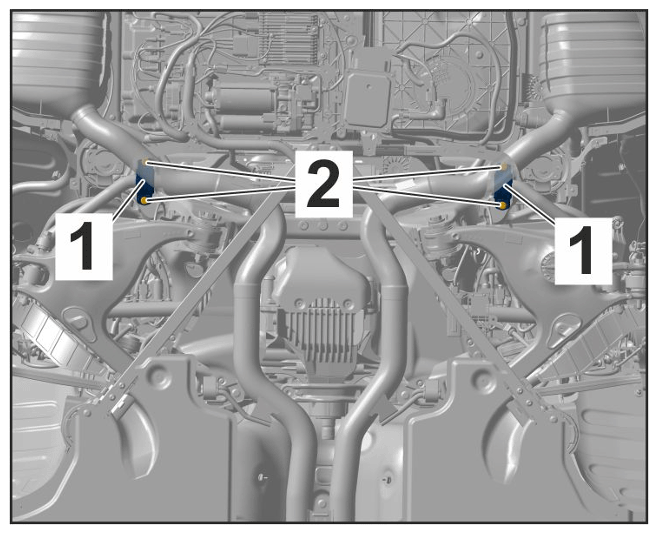

    G15856592Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for anti-roll-bar mount

    1. 2.1 Unscrew fastening screws -2-  .
  3. With the help of another person, turn the anti-roll bar alternately -arrow A-  to the right and guide it out -arrow B-  .

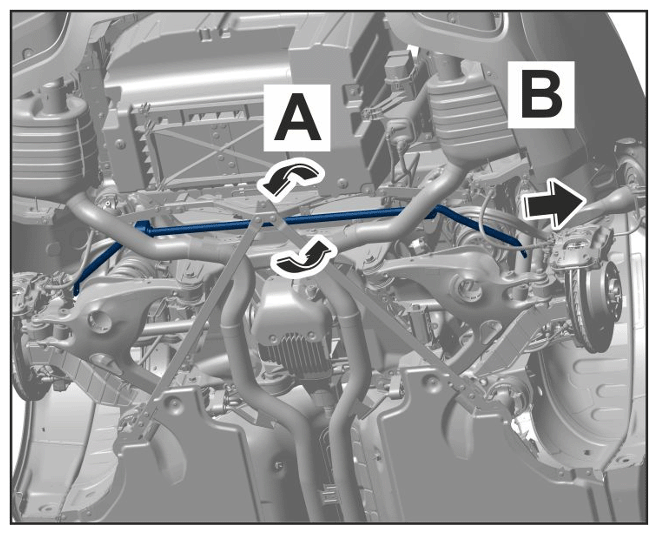

G15856593Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Guiding out anti-roll bar
