Technical Values

WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value
Mounting plate for wheel bearing to wheel bearing housing	Item 2: Hexagon-head bolt, M8 x 35/always replace bolts following removal!	Initial tightening	20 Nm (15 ftlb.)

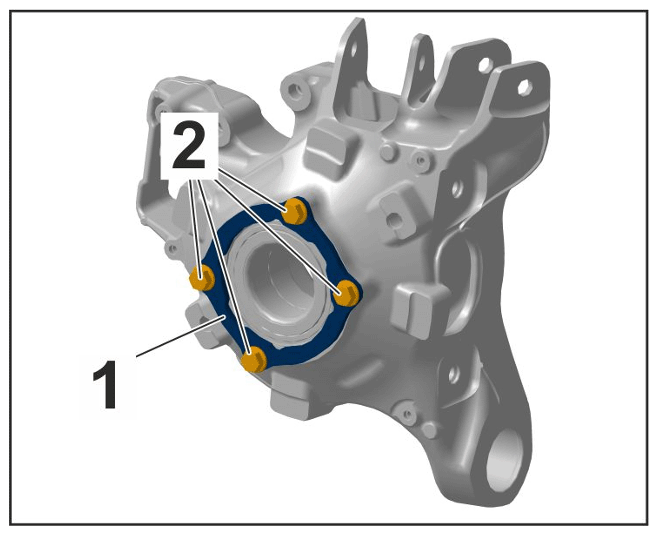

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting plate on wheel bearing housing
Mounting plate for wheel bearing to wheel bearing housing	Item 2: Hexagon-head bolt, M8 x 35/always replace bolts following removal!	Final tightening torque angle	+ 90
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting plate on wheel bearing housing
Heating wheel bearing housing	Before pressing in wheel bearing	Temperature	80°C
