Subsequent Work

WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove rear brake disc.

    > 465319 REMOVING AND INSTALLING REAR BRAKE DISC

    > 465419 REMOVING AND INSTALLING REAR PCCB BRAKE DISC

  2. Tighten axle nut -1-  . Operate the brake while doing this (2nd mechanic required) > Tightening torque 460 Nm (340 ftlb.)
    G15856536Courtesy of PORSCHE CARS NORTH AMERICA, INC.

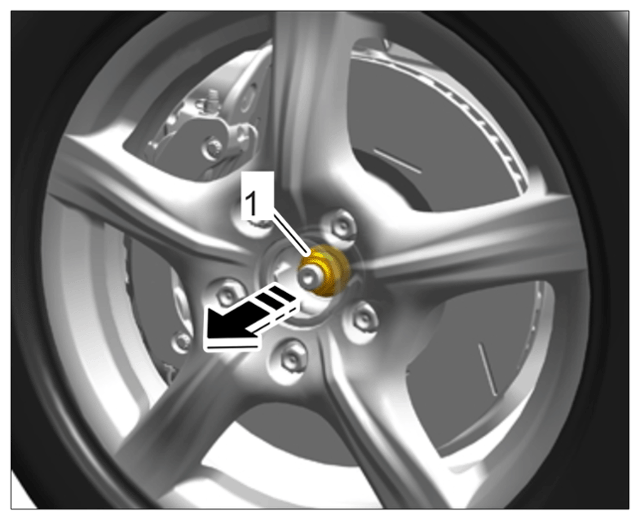

    Axle nut (front axle shown)

  3. Fit hub cap.
  4. Perform suspension alignment.

    > WM, 449503 PERFORMING FRONT AND REAR SUSPENSION ALIGNMENT
